How to Build an Off-Grid Solar System

How to Build an Off-Grid Solar System

Building an off-grid solar system is both exhilarating and daunting. You’re eager to reap the benefits of getting off the grid, such as cost savings and a feeling of independence.

But, the complexities of choosing components, sizing the system, and getting it installed can be overwhelming. Don’t stress - we’re here to simplify the process of how to build an off-grid solar system.

OffGrid Living Solutions is your trusted source for high-quality, dependable off-grid solar kits. These allow you to bring your system to life in just a few clicks, getting everything you need at once. You won’t have to worry about pairing up individual components as we’ve done all the hard work for you.

Before we get into our guide on building a solar system, though, let’s talk about why this is one of the best investments you can make in the first place.

Why Build an Off-Grid Solar System?

Building an off-grid solar system is an empowering step towards self-sufficiency, offering numerous benefits that extend beyond the obvious cost-saving considerations.

Benefits of Energy Independence

An off-grid solar system places the control of your energy needs in your hands, liberating you from the dependence on utility companies. This autonomy ensures a consistent power supply, unaffected by external disruptions like power outages.

It opens up a world of possibilities for where you can live. Grid connection can be logistically challenging or expensive for homes located in remote or rural areas. Off-grid solar systems offer a viable and efficient alternative to traditional power sources.

Off-grid systems can be tailored to meet your specific energy requirements, lifestyle, and geographical location. This personalization allows for a system that aligns perfectly with your daily energy consumption patterns.

Environmental and Financial Advantages

This is perhaps the most enticing reason to build a DIY off-grid solar system: it saves you money in the long run.

Sure, the initial cost of an off-grid solar system can be a challenge. But smart budgeting and rebates/incentives make it financially feasible for just about anyone. You’ll eliminate monthly electricity bills once your system is installed. Once it’s paid off, you’re saving hundreds of dollars monthly for the rest of your life!

If you decide to move, you’ll benefit financially once again. Homes equipped with off-grid solar systems often experience an increase in property value.

This enhancement is not only due to the added functionality but also because of the growing market demand for sustainable and energy-independent homes. Speaking of which, there’s another reason to build your own off-grid solar system DIY: it’s the future of energy.

Solar power is a clean, renewable energy source. You significantly reduce your carbon footprint and mitigate your impact on the environment by adopting an off-grid solar system. So, let’s get into the components that make it happen.

Understanding the Components of an Off-Grid Solar System

As we said from the start, our off-grid solar kits make building your system as easy as a few clicks. No need to stress about matching components! Still, it’s important that you understand the different components within the system and how they work together.

Solar Panels

Solar panels are the primary components that capture sunlight and convert it into electrical energy. They are the starting point of your solar system.

Panels come in various types, such as monocrystalline and polycrystalline. There are also flexible solar panels and portable solar panels. The choice depends on your budget, space availability, and the efficiency you desire.

Solar Inverter

The off-grid solar inverter converts the direct current (DC) generated by the panels into alternating current (AC), which is usable in homes. Proper solar inverter sizing is critical for ensuring your system runs smoothly and supports your lifestyle.

But, you also have to consider the various types of inverters - which range from hybrid solar inverters to pure sine wave inverters. There are also string inverters, which connect to multiple panels, and microinverters for individual panels. The choice depends on the size of your system and specific energy needs.

We cannot stress the importance of quality enough no matter what style you need, though. A high-quality inverter ensures better efficiency and longevity of your system. Learn more about the average solar inverter lifespan in our blog.

Batteries

Off-grid solar batteries store excess solar energy, allowing for power usage when the sun isn’t shining, like during nights or cloudy days. Options include lead-acid, lithium-ion, and saltwater batteries, each with distinct advantages in terms of lifespan, capacity, and maintenance.

Again, correctly sizing your battery bank is crucial to meet your energy needs without over or under-capacity issues. Even though our kits negate this concern, we’ll discuss sizing later on.

Controller

Solar charge controllers regulate the voltage and current from the solar panels to the batteries, preventing overcharging and damage.

Charge controllers come in PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking) types, with MPPT being more efficient. That being said, they’re also more expensive.

Just be sure to choose a controller that matches the voltage of your solar system and has a higher current rating than your panels’ output.

Other Supplies

The big four above will make up the most important decisions you make in building an off-grid solar system. But, the little things cannot be overlooked either. Here are some other tools and supplies you need on-hand as we proceed to our guide on how to build an off-grid solar system:

  • Mounting Systems: The solar panel mount secures the solar panels in place, either on rooftops or the ground.
  • Wiring and Connectors: Quality solar panel wiring and solar panel connectors ensure safe and efficient energy transfer.
  • Safety Equipment: This includes fuses, circuit breakers, and disconnect switches for system protection.

Understanding each component’s role and how they interconnect is crucial for building an efficient and reliable off-grid solar system. That being said, let’s get into the details of how to build an off-grid solar system!

How to Build an Off-Grid Solar System: Step-by-Step Guide

Ready to get started building an off-grid solar system? We’ll guide you step-by-step through the process below to help you feel confident in your next steps. First things first - you need an accurate estimation of your energy needs.

Assessing Your Energy Needs

Start by listing all your electrical appliances and their wattage. Calculate the total energy usage by considering how many hours each appliance runs daily. This will give you a daily kilowatt-hour (kWh) estimate.

From there, you can identify times when the energy demand might be highest. This peak load determination is crucial for sizing your inverter and battery bank correctly.

Think about potential changes in your lifestyle or additions to your household that might increase energy requirements. Planning for future energy needs can save costly upgrades later. We’ll talk about this more in-depth when we get into actually sizing the components within your system.

Understanding Your Geographic Location

It’s important that you set realistic expectations for how much energy you can capture from the sun based on your geographic location. Individuals in the Midwest may not see the same return from building an off-grid solar system as those on the West Coast.

So, research the average sunlight hours in your area. This influences the number and type of solar panels you'll need. Areas with less sunlight may require more or higher efficiency panels.

Consider local weather conditions beyond sunlight, too. If your area experiences frequent heavy snowfall or high winds, your system will need to withstand these elements.

This is something we’ll discuss when we unpack the installation process, but the orientation of your solar panels and your geographic location are closely related. Panels should typically face south in the Northern Hemisphere and be tilted at an angle equal to your latitude for optimal sun exposure.

Legal Considerations and Compliance

While it’s within your right to build a DIY off-grid solar system, you need to take the proper steps to ensure compliance and avoid fines or headaches down the road.

Check with local authorities for any permits required to install a solar system. Adhering to building codes and regulations is essential for legal compliance. If you plan to remain connected to the grid, understand the grid interconnection rules and any feed-in tariffs available.

As you shop for the different components of your DIY off-grid solar system ensure they’re compliant with national and international standards. It may even be worth looking into certified installers to guarantee the safety and reliability of your system.

This is also a good time to inform your home insurance provider about your solar system installation. Some insurers may have specific requirements or offer additional coverage for renewable energy systems.

Budgeting and Financial Planning

An off-grid solar system setup requires careful financial planning. A well-planned budget ensures that you can cover all necessary costs without compromising on quality or efficiency. There’s a lot to consider here, including:

  • Component Costs: List all components (solar panels, inverter, batteries, controller, mounting system, wiring, and safety equipment) and their estimated prices.
  • Installation Costs: Factor in labor costs if you're hiring professionals. Even if you're installing it yourself, consider any tools or additional resources you might need.
  • Permit and Inspection Fees: Include any fees associated with permits or inspections required by local regulations.
  • Maintenance and Repairs: Set aside a fund for potential maintenance or repair costs. Although solar systems require minimal maintenance, it’s wise to be prepared.
  • System Upgrades: Plan for future expansions or upgrades if you anticipate energy needs increasing.
  • Loans and Financing Options: Investigate solar financing options, such as solar loans or green mortgages.
  • Government Incentives: Research federal, state, and local incentives, rebates, and tax credits that can offset the initial investment.

With all this in mind, you can come up with a realistic budget for how much it will cost to get your off-grid solar system set up and running.

From there, you can determine if this is something you’re 1) willing and 2) able to pay. Remember, this is a long-term investment that pays dividends for decades to come. You can always consider dialing back on your system and/or lowering your energy needs to make ends meet in the meantime.

Piecing Your System Together: What to Consider When Shopping

Building an off-grid solar system by choosing individual components on your own can be tricky. It won’t work if one piece is incongruent with the rest of the system.

That’s why choosing a complete kit is our recommendation. You can rely on the experts here at OffGrid Living Solutions to do the research and meticulous decision-making for you.

That being said, we’ll offer a quick example to provide context on how you’d go about piecing your system together otherwise. Suppose your daily energy requirement is 4 kWh, with peak usage in the evening.

You'll need solar panels that can generate this amount of energy, factoring in sunlight availability. For instance, if you get 5 hours of effective sunlight, you'd need panels that can produce at least 800 watts per hour (4 kWh / 5 hours).

Then, you need an inverter to match this output. A 1 kW inverter would be suitable for an 800W solar panel system, allowing some room for expansion. Similarly, if you plan to run your house overnight on stored solar energy, you might need a battery bank that can store at least 4 kWh.

Purchasing from a single brand or a trusted supplier ensures component compatibility, reducing the risk of system inefficiencies or failures.

Speaking of which, research brands with a solid reputation for reliability and customer satisfaction. Experienced brands can guide you in choosing the right components based on your specific needs, ensuring an efficient and balanced system.

Moreover, a brand that offers extensive warranties and responsive customer support indicates confidence in its product and commitment to customer service.

Online reviews and solar energy forums can provide real-user insights into which brands you can trust. That being said, a few that come to mind are Aims, Rich Solar, and SunGold Power

You can rest assured you’re investing in quality when you source your system through these brands, all of which are available right here at OffGrid Living Solutions.

Navigating the Installation Process: Step-by-Step Guide to Actually Building an Off-Grid Solar System

After you’ve taken the time to choose the right system comes the fun part: actually building an off-grid solar system. Here’s a step-by-step guide on how to install an off-grid solar system:

  1. Site Assessment: Begin by selecting a location with optimal sun exposure that won’t get covered in shade during the day. Clear the area of debris and obstacles. Ensure the ground is level for ground-mounted systems, or inspect the integrity of the roof for roof-mounted systems.

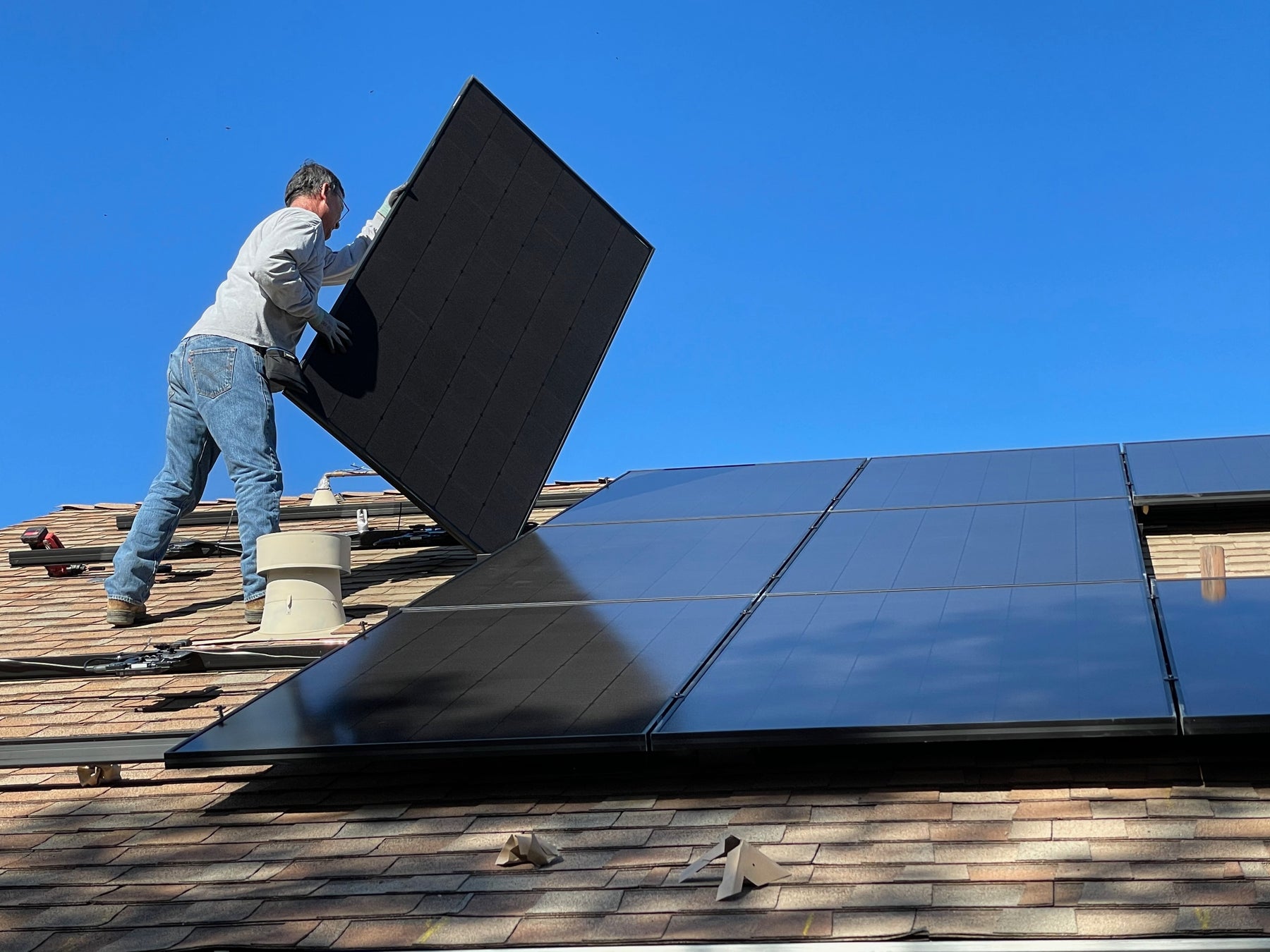

  2. Mounting Solar Panels: Install either roof or ground mounts, considering sun orientation and angling for maximum efficiency. Ensure secure attachment to withstand weather conditions, as you don’t want to risk damage to your panels or home, or worse, injury to a loved one. Securely attach the panels to their solar panel mounts and connect them in your chosen configuration (series or parallel), based on your system’s voltage and current requirements.
  3. Inverter Setup: Place the inverter near the panels but in a cool, shaded area. The side of your house or in the garage works great for roof-mounted panels. Otherwise, you may want to build a little structure to protect your inverter. Connect it to the solar panels, matching the input specifications to the panel outputs.
  4. Battery Bank Setup: Install batteries in a ventilated, temperature-controlled environment. Connect them according to your system’s storage capacity needs.
  5. Charge Controller Installation: Position the charge controller between the solar panels and the battery bank, ensuring compatibility with both.
  6. Final Wiring and Safety Checks: Complete all wiring, ensuring correct sizing and safe routing. Conduct thorough checks for tight connections and proper grounding. This is best left to an electrician or other qualified individual if you don’t have the experience yourself.
  7. System Testing: Power up the system, checking solar panel output, battery charging, and inverter functioning. Troubleshoot any issues, referring to manuals or seeking professional help if needed.
  8. System Commissioning: Once everything functions correctly, do a final review of all components. Document the setup for future reference and maintenance.

Monitoring and Maintaining the System for Efficiency and Longevity

Regularly check the system's output through the inverter display or monitoring software. This helps you track energy production and identify any sudden drops in efficiency that could indicate a problem.

Remember that dust, debris, and bird droppings can reduce panel efficiency. Clean your panels periodically, especially after storms or in dusty environments, to maintain optimal energy absorption.

You also need to regularly check your batteries’ state of charge and ensure they are not overcharged or deeply discharged. Periodically inspect connections and look for signs of corrosion.

Consider having a professional inspect your system annually. They can conduct a more thorough checkup and address any complex issues. This is an investment in peace of mind.

Lifestyle Adjustments and Energy Conservation

Adapting your lifestyle and embracing energy conservation practices can significantly enhance the efficiency of your off-grid solar system. It means you can get by with a simpler, smaller scale system while also extending the life of your system by saving it from working too hard. Here are a few tips:

  • Energy-Efficient Appliances: Opt for energy-efficient appliances that consume less power. LED lighting, energy-star-rated refrigerators, and efficient water-heating solutions can make a big difference.
  • Mindful Energy Usage: Be conscious of your energy usage patterns. Turn off lights and appliances when not in use. Consider using high-energy-consuming appliances like washing machines during peak sun hours.
  • Heating and Cooling Considerations: Insulate your home to reduce the need for extensive heating or cooling. When needed, use energy-efficient solutions like solar water heaters or biomass heaters.
  • Water Conservation: Implement water-saving measures like low-flow fixtures and rainwater harvesting, which reduce the energy required for water heating and pumping.
  • Rethink Habits: Adjust your lifestyle to align with the sun’s availability - charge batteries and use power-intensive appliances during peak sunlight hours.

Building an Off-Grid Solar System Just Got a Whole Lot Easier: Shop Complete Kits at OffGrid Living Solutions!

Now that you know how to get your off-grid solar setup up and running, there’s only one thing left to do: source your complete kit at OffGrid Living Solutions!

Our all-in-one packages, featuring top-tier components like pure sine wave inverters, high-efficiency solar panels, and durable batteries, ensure a seamless setup.

Whether for an RV or a remote cabin, our kits are tailored for every need, backed by expert guidance every step of the way.

With trusted brands like Aims Power and Rich Solar, you’re guaranteed efficiency, durability, and the best return on investment. Simplify your journey to energy independence with us - where quality meets convenience. Shop now and transform your energy future!

Wrapping Up Our Guide on How to Build an Off-Grid Solar System DIY

That concludes our guide on how to build an off-grid solar system DIY. We’ve covered everything you need to know about building an off-grid solar system, from understanding your energy needs to selecting the right components and navigating installation.

Remember, the key to a successful off-grid system lies in meticulous planning, quality components, and regular maintenance. As daunting as this journey can be, it gets a whole lot simpler when you shop at OffGrid Living Solutions.

So, what are you waiting for? Turn to OffGrid Living Solutions for top-notch solar kits and expert support, ensuring your transition to off-grid living is smooth, efficient, and rewarding!
