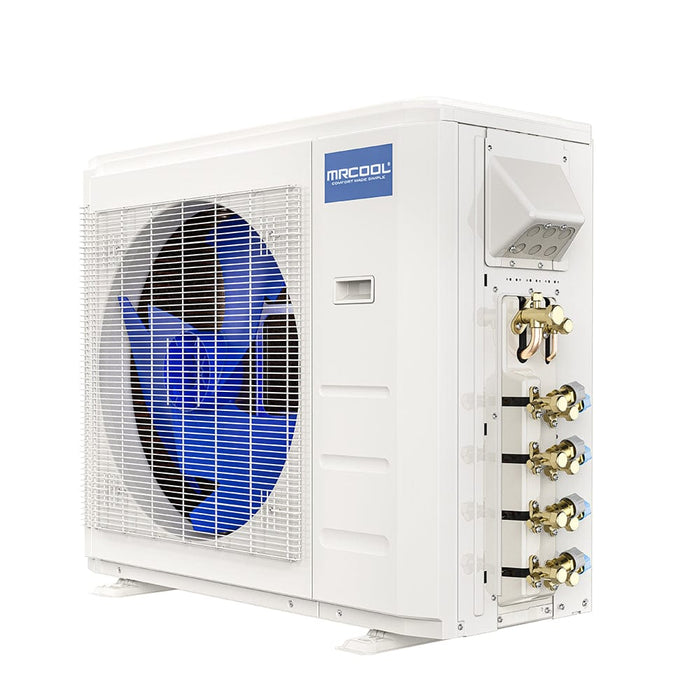

Front View of DIY 4th Gen 4-Zone Condenser

MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser

by MRCOOL
SKU DIY-MULTI4-36HP230C
$2,107.00 - $2,107.00
$2,107.00
$2,107.00 - $2,107.00
$2,107.00
Availability:
in stock, ready to be shipped

Get it between -

5 Reasons to Buy From Us

1. We are an official authorized North American online distributor of the best in class sustainability products. This means all our products are shipped from warehouses throughout the United States.

2. We pride ourselves in having the best customer and user experience. If you have any questions, please reach out.

3. We offer the Lowest Prices Online. Read our Price Match Policy to see how we can help match and beat competitors' prices!

4. Purchases from our Shopify website are 100% Secure.

5. We offer Klarna to help you buy what you need as soon as possible.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser

Description

This is only the Condenser (Outside Unit).

The 4th Generation MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations. This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.

  • Up to 21.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Line sizes 1/4”, 1/2” & 3/8”, 5/8”
  • Multi-Zone Condenser includes adapter for the 24K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns

Product Specifications

MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser Product Specifications

SEER

21.5

EER

10.5

HSPF

hspf4/hspf5 : 11/8.5

CFM

2147.06

COOLING CAPACITY

36000 BTU

HEATING CAPACITY

36000 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MAX FUSE BREAKER

45 A

MIN CIRCUIT AMPACITY

27 A

COLOR

White

COLOR FAMILY

White

ZONE CAPACITY

Up to 4

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME

134.04 oz

DECIBEL RATING

65 dBA

INVERTER

Yes

MIN AMBIENT COOL

5F ~ 122F

MIN AMBIENT HEAT

-13F ~ 75.2F

MAX LINESET LENGTH

221 ft TOTAL

LIQUID LINE SIZE

1/4in (3/8in w/ adapter)

SUCTION LINE SIZE

1/2in (5/8in w/ adapter)

COMPRESSOR MOTOR TYPE

Rotary

CONDENSER FAN MOTOR RPM

1000/900/750

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH

16.14 in

NET HEIGHT

31.89 in

NET WIDTH

37.24 in

NET WEIGHT

170.42 lbs

GROSS DEPTH

19.88 in

GROSS HEIGHT

35.04 in

GROSS WIDTH

42.91 in

GROSS WEIGHT

187.83 lbs



Product Manuals

Install Manual

Owner Manual

Remote Manual

Technical Manual

Service Manual

AHRI CERTS

Energy Guide

Product Warranty

Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs



Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.

Q3 I have not received my free SWAG item yet, has it been shipped?

Answer: Orders typically take 4 to 6 weeks to process and ship. If you have not received your Swag order within 8 weeks – please, contact us via email at swag@mrcool.com
