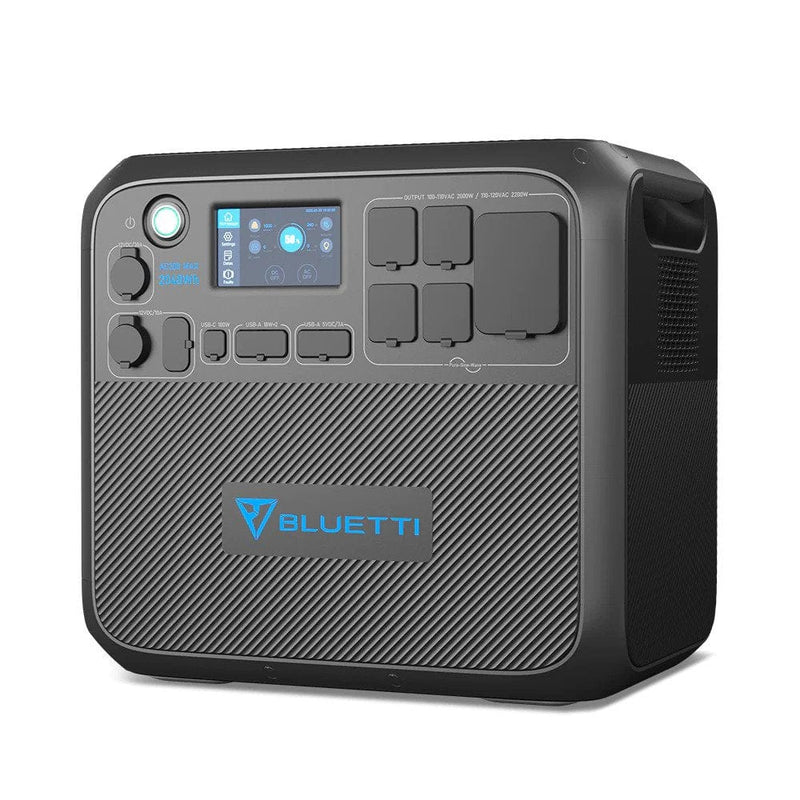

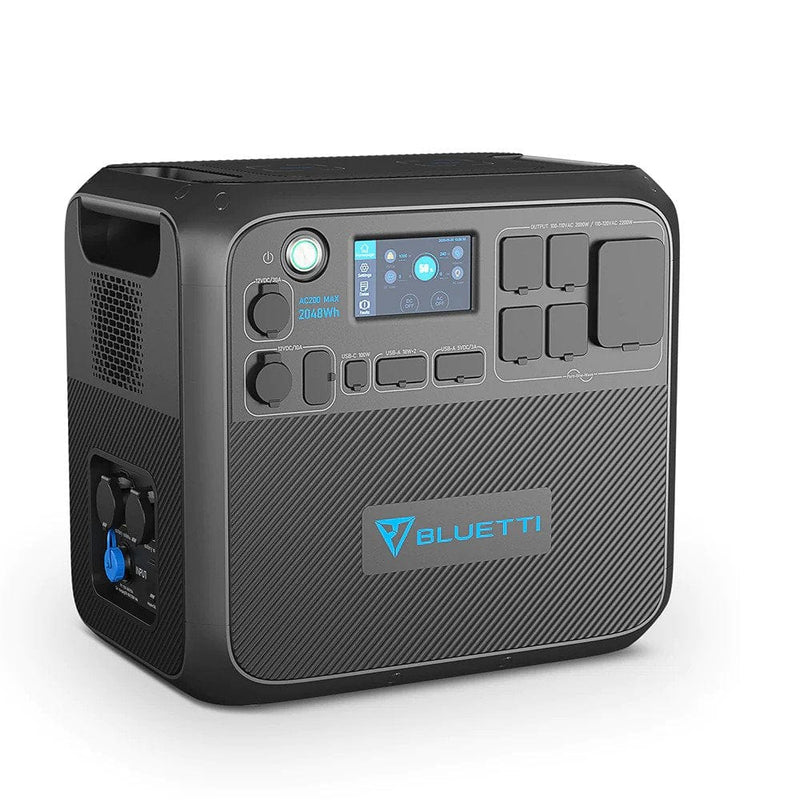

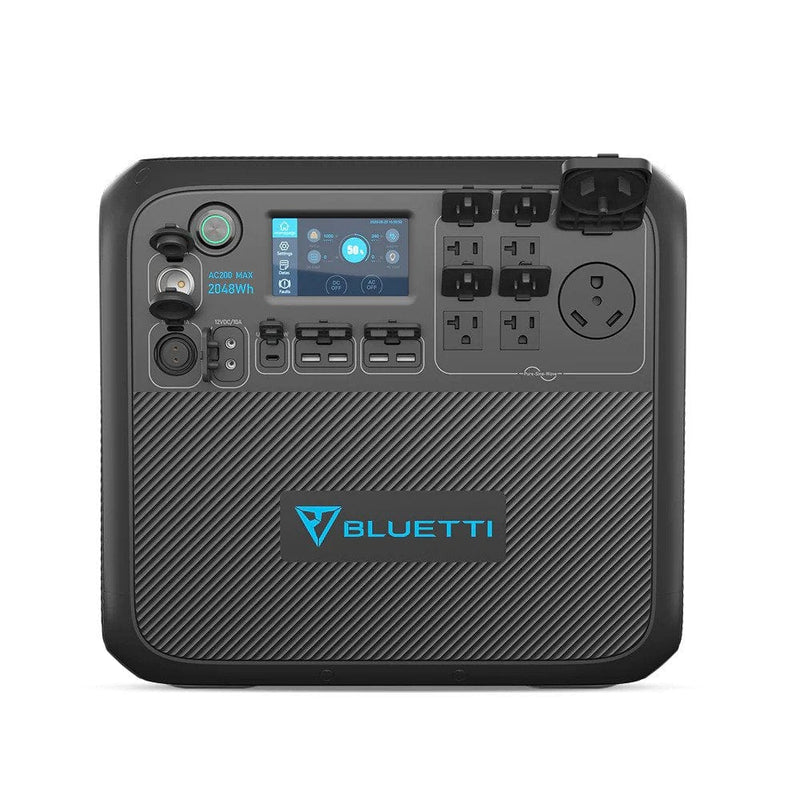

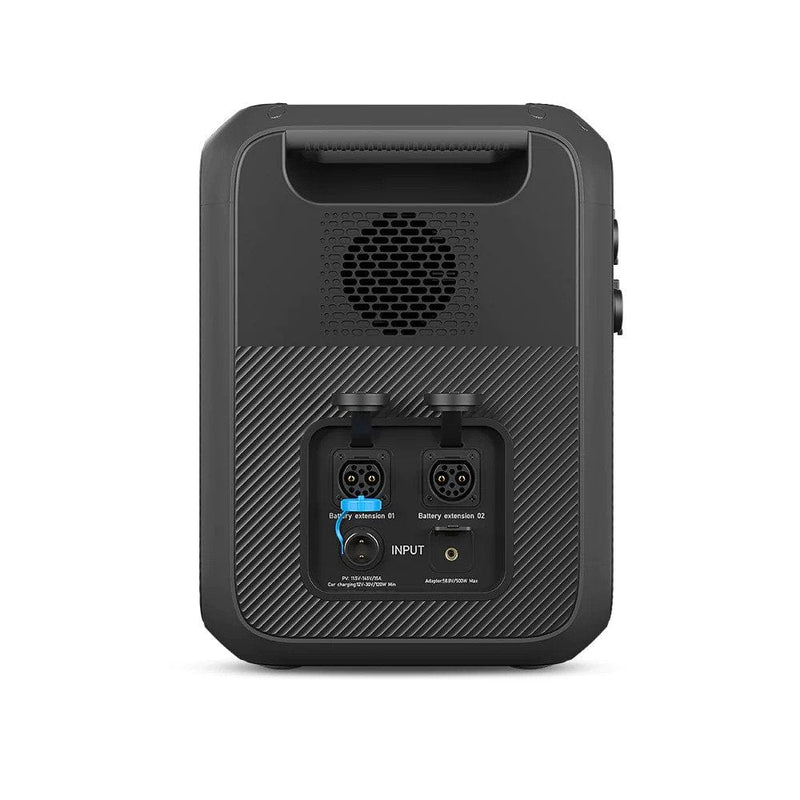

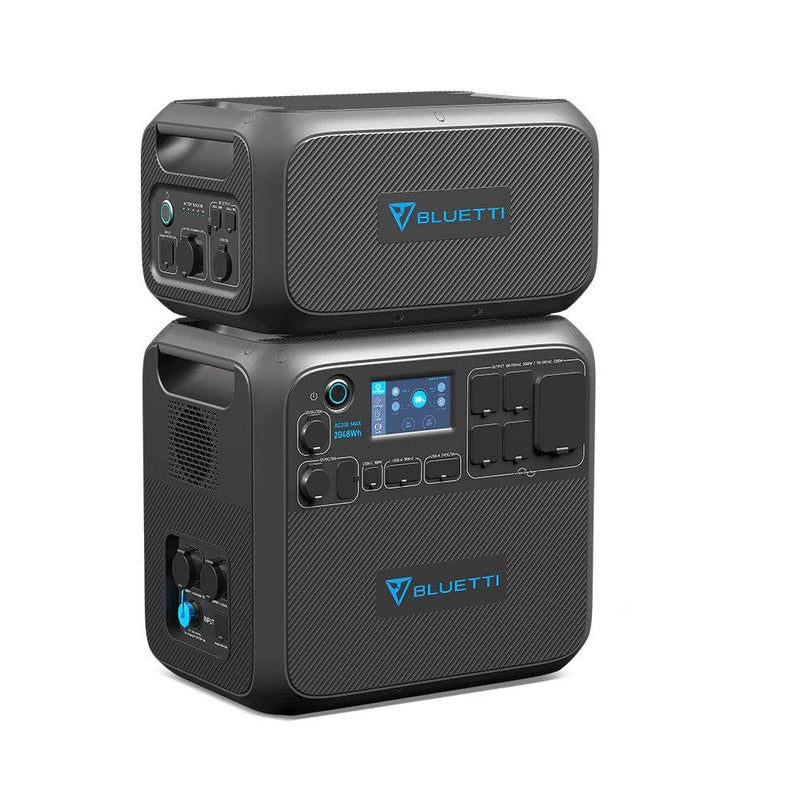

BLUETTI AC200MAX + 1*B230 | Home Battery Backup
Description
- 2,200W AC Pure Sine Wave Inverter (4,800W Surge)
- 2,048Wh Capacity
- LiFePO4 Battery with 3,500+ Life Cycles to 80%
- Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
- 900W Max. Solar Input
- 1400W Max. Fast Dual Charging (Solar + AC Adapter)
- Smart Control & Monitor in BLUETTI App
Product Specifications
BLUETTI AC200MAX + 1*B230 | Home Battery Backup Product Specifications
BLUETTI AC200MAX Product Specifications
BATTERY INFO
| Capacity: |
2,048Wh (51.2V, 40Ah) |
| Type: |
LiFePO4 (Lithium Iron Phosphate) |
| Life Cycles: |
3,500+ Cycles to 80% Original Capacity |
| Shelf-life: |
Recharge to 80% Every 3-6 Months |
| Management System: |
MPPT Controller, BMS, etc |
OUTPUT
| AC Outlets: |
4 x 120V/20A Outlets
1 x 120V/30A NEMA TT-30
2200W In Total |
| Inverter Type: |
Pure Sine Wave |
| Surge Power: |
4800W |
| USB-C Port: |
1 x 100W Max. |
| USB-A Port: |
2 x 5V/3A USB-A
2 x 18W USB-A
|
| 12V DC Outlets: |
1 x 12V/30A (RV Outlet)
1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlet)
*All Regulated.
|
| Wireless Charging Pad: |
2 x 15W Max. (For Each) |
INPUT
| AC Adapter Input: |
500W. |
| Solar Input: |
900W Max., VOC 10-145VDC, 15A |
|
Car Input:
|
12/24V from Cigarette Lighter Port |
|
Max Input:
|
1,400W, with AC+Solar Input |
RECHARGE TIME
|
AC Adapter (500W):
|
≈5.5~6 Hours |
| Solar (900W): |
≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature) |
| 12V/24V Car Outlet (100W/200W): |
≈10 or 20 Hours |
| AC Adapter + Solar (1400W): |
≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature) |
| Dual AC Adapters (1000W): |
≈3~3.5 Hours (Extra adapter is REQUIRED) |
GENERAL
| 240V Split Phase Bonding: |
No. Need 240V power source? |
|
Scalability:
|
Expandable w/ Up to 2 x B230 or 2 x B300 |
|
Pass-through Charging:
|
Yes |
|
Weight:
|
61.9lbs (28.1kg) |
|
|
16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)
|
|
|
|
|
Storage Temperature:
|
14-113℉ (-10-45℃) |
|
Certifications:
|
UL Standard, CEC, DOE, FCC, CA Prop 65 |
|
|
48 Months (Learn more about BLUETTI warranty policy)
|
BLUETTI B230 Expansion Battery Product Specifications
BATTERY INFO
| Capacity: |
|
|
Type:
|
LiFePO4 (Lithium Iron Phosphate)
|
|
Life Cycles:
|
3,500+ Cycles to 80% Original Capacity
|
|
Shelf-life:
|
Recharge to 80% Every 3-6 Months
|
|
Management System:
|
MPPT Controller, BMS, etc. |
OUTPORTS
INPUT
AC Adapter Input:
|
500W Max.
|
Solar Input:
|
500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S) |
|
Car Input:
|
12/24V from Cigarette Lighter Port (Via BLUETTI D050S) |
Lead-acid battery:
|
12/24V from Cigarette Lighter Port (Via BLUETTI D050S) |
Max Input:
|
500W |
RECHARGE TIME
AC Adapter (400W):
|
≈5.5~6 Hours
|
Solar (500W):
|
≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)
|
12V/24V Car Outlet (100W/200W):
|
≈10 or 20 Hours
|
GENERAL
Compatibility:
|
AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)
|
Pass-through Charging:
|
Yes |
Weight:
|
|
Dimensions (LxWxD):
|
16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)
|
Operating Temperature:
|
32°F-104°F (0-40°C)
|
Storage Temperature:
|
-4-104℉(-20-40℃)
|
Certifications:
|
UL, CEC, DOE, FCC, CA Prop 65
|
|
Warranty:
|
48 Months (Learn more about BLUETTI warranty policy)
|
IN THE BOX
Product Manual
Product Warranty and Return Policy
Warranty Policy
This warranty gives you specific legal rights, and you may have other rights that vary from state to state (or by country or province). Other than as permitted by law, BLUETTI does not exclude, limit or suspend other rights you may have, including those that may arise from the nonconformity of a sales contract. For a full understanding of your rights you should consult the laws of your country, province or state.
| Product |
Item |
Warranty Period(Months)
|
| Battery Module |
B230
|
48
|
| Power Station |
AC200MAX |
48 |
Replacement / Maintenance
Exclusions
BLUETTI’s warranty does not apply to:
- Misused/abused/damaged by accident/damaged due to acts of nature. (For example lightning strikes, tornadoes, hurricane and such).
- Unauthorized modification/repair/dis-assembly or operation not in accordance with the official instructions or manuals
- Non-quality related issues
- Items purchased from unauthorized resellers
- Used for special application other than normal consumer use
- Lost /stolen/free/refunded product
- Any defects or damages caused by exposure to excessive heat, cold, liquids or other external causes
- Not able to provide valid proof of purchase
How to claim warranty?
Feel free to contact our customer service team at service@bluettipower.com
Return & Refund Policy
If you purchased a BLUETTI product from the BLUETTI official store, you may request a return or refund.
If you purchased a BLUETTI product from other suppliers and resellers of BLUETTI, you may not request return or refund from us as our suppliers and resellers may have their own policies regarding refund and return. Please contact them for further information.
Return and refund policies may also vary according to local laws and regulations.
Order Cancellation
Customers can request a full refund within 72 hours after placing an order by email or phone with the BLUETTI official store. However, if the product has already been shipped, a $25 intercept fee will be charged.
Non-Receipt of Products / Damaged Products Received
1. If you believe your product was not delivered or lost, you must notify immediately notify us.
2. If you believe the product you received was damaged, or if you receive an incorrect/incomplete product, you must immediately contact us with proof of videos and/or pictures.
30-day No Reason to Return
1. 30-Day Refund Policy
Within 30 days of your purchase, if you are unsatisfied with your purchase (including but not limited to “don’t want”, ”don’t meet your needs”, or “don’t like” ), you may return the purchased items complete, unused, and in their original packing.
However, you will be responsible to pay for the return shipping costs. Please contact our customer service to verify the shipping costs for each item and to get a Return Merchandise Authorization (RMA) Number.
Once your item is received and inspected, we will deduct the shipping cost of return from your refund.
* For further instructions, please contact us at service@bluettipower.com.
2. Refused Delivery
Please note that return cost will be deducted from any refund if you reject the shipments.
NOTE: For products that have been used, we reserve the right to refuse the return.
Refund will be processed within 14 business days after the product is returned to BLUETTI warehouse.
3. No Reason to Return After 30 Days
If 30 days have passed since your purchase, we cannot offer a refund or exchange.
Exclusions
BLUETTI warranty policy does not apply to:
- Misused/abused/damaged by accident/damaged due to force majeure (e.g. lightning strikes, tornadoes, hurricanes, etc.)
- Unauthorized modification/repair/dis-assembly or operation not in accordance with the official instructions or manuals
- Items purchased from unauthorized resellers
- Used for special application other than normal consumer use
- Lost/stolen/free/refunded product
- Any defect or damage caused by exposure to excessive heat, cold, liquids or other external causes
IMPORTANT NOTE：
If the following conditions are not met, BLUETTI reserves the right not issue
a. Products returned don’t include allofthe original packaging and accessories.
b. Products returned sustain damages caused by misuse or improper packagingduring the return process.
c. Returns without prior authorization and an RMA number.
Before returning the product, please send a picture of the packaged product to our customer service.
Refund will be processed within 14 business days after the product is returned to BLUETTI warehouse.
Product FAQs
BLUETTI AC200MAX + 1*B230 | Home Battery Backup Product FAQs
Q1. How many B230 or B300 battery module can be hooked up with the AC200/P?
A1. Up to two B230 or B300, one via the solar input port by a converter cable, and another one via the AC adapter inlet (Require the BLUETTI D050S - DC charging enhancer, sold separately).
Friendly Note: which means that if the total power of your devices exceeds 700W.
Q2. Can the B230 battery module be used alone?
A2. Yes. B230 has a 100W USB-C, a USB-A and a 12V DC output ports, the battery module can work flawlessly when standalone.
Q3. What are the charging methods for the BLUETTI B230?
A3.
B230 can be recharged by:
1. 500W AC adapter (Sold separately)
2. Car cigarette lighter output or solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).
Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.
Q4. Does AC200MAX support split phase bonding?
A4. No.
Q5. Can AC200MAX be remotely controlled via APP?
A5. ou can control the AC200 MAX via APP or touchscreen. But APP only can be connected via Bluetooth.
