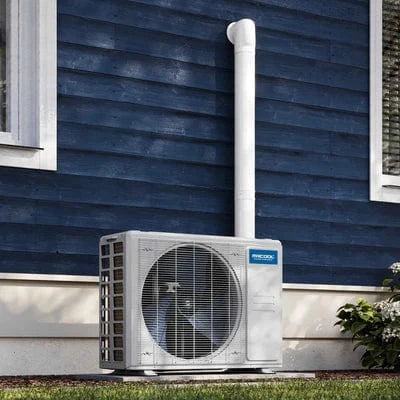

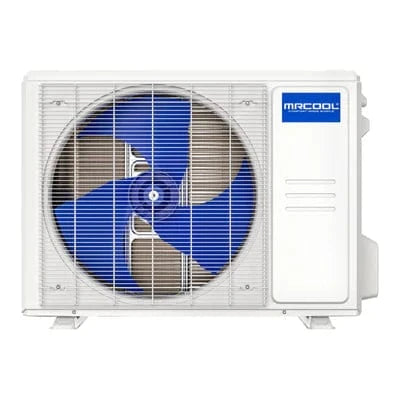

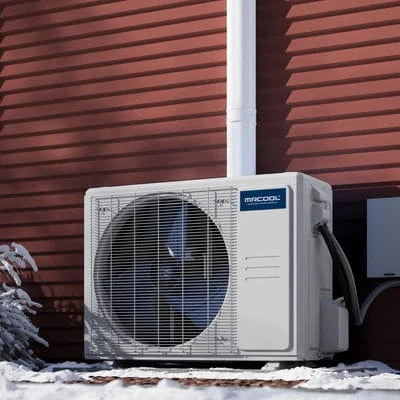

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Condenser 230V (DIY-24-HP-C-230D25-O)

MRCOOL Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU DIY-24-HP-C-230D25-O
Sold out
Original price $2,364.00 - Original price $2,364.00
Original price
$2,364.00
$2,364.00 - $2,364.00
Current price $2,364.00
Availability:
Out of stock

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living Solutions. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Condenser 230V (DIY-24-HP-C-230D25-O)

Description

Taking on an HVAC installation yourself might seem daunting, but the 5th Generation MRCOOL® DIY® 24K BTU 22.7 SEER Ductless Heat Pump Single Zone Mini Split Condenser is built specifically for easy, do-it-yourself setup. With no special tools or professional experience needed, this system is perfect for heating and cooling areas between 750-1,000 sq. ft.

The pre-charged 25-foot QuickConnect® line set simplifies installation by eliminating the need for vacuuming, while the included DIYPRO® cable adds extra durability, replacing traditional electrical conduit to protect against weather, animals, and yardwork hazards. With multiple control options, managing your comfort is effortless. Adjust settings using the included remote, the SmartHVAC app on Apple or Android devices, or go hands-free with voice control via Amazon Alexa and Google Assistant. For homes near the coast, the Gold Fin Condenser enhances corrosion resistance, ensuring lasting performance.

This system is packed with features to maximize efficiency and convenience. The Timer function helps regulate energy use, while Auto mode maintains your preferred temperature with no extra effort. If power is lost, the unit automatically restores previous settings. Plus, the anti-mildew function helps prevent moisture buildup inside the air handler. Engineered for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty, including a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty. Combining user-friendly installation with advanced technology, this system delivers lasting comfort with ease.

Features

  • NEEP ccASHP Listed
  • Intertek listed 5031495
  • Easy DIY installation
  • Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Product Specifications

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Condenser 230V (DIY-24-HP-C-230D25-O) Product Specifications

Dimensions

16.14" D x 31.89" H x 37.24" w

SEER2

22.7

EER2

12.7

HSPF2-4

9.5

HSPF2-5

7.1

Tonnage

2

Cooling Capacity (BTU)

23000

Heating Capacity (BTU)

23000

Voltage (V)

208/230

Phase

1

Cycle

60

Max Fuse Breaker (A)

25

Min Circuit Ampacity (A)

24

Color

White

Zone Capacity

1

Refrigerant Type

R-454B

Refrigerant Volume (Oz)

67.37

Decibel Rating (DBA)

58.5

Inverter

DC

Line Set Length

25

Max Lineset Length (FT)

164

Liquid Line Size

3/8

Suction Line Size

5/8

Compressor Motor Type

Rotary

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

UL Listed

Yes

ETL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Net Weight (Lbs)

122.8

Gross Depth (In)

19.88

Gross Height (In)

37.01

Gross Width (In)

42.91

Gross Weight (Lbs)

155.64

Product Manual

Product Warranty

MRCOOL Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
