Aims Power Off Grid Solar Kit | 8000W Pure Sine Inverter | 3960 Watt Solar Panels | 600 Amp Batteries

Description

Powerful all-in-one solar kit for all of your off grid or back up power needs. Whether you’re supplying power to a business office or whole house, this solar kit includes all necessary products and bundled for your convenience. This 3960 watts of solar and the 8,000 watt. 100/50amp output low frequency inverter charger 48VDC split phase 110/120/220/230/240 VAC along with 600 amps of battery power at 48VDC will keep you up and running.

The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available.  If grid power is lost, your solar system will automatically kick in. The 48VDC is more efficient, generates less heat allowing you to use smaller cables and fuses. The mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

3960 WATT SOLAR WITH 8,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID KIT

KIT COMPONENTS

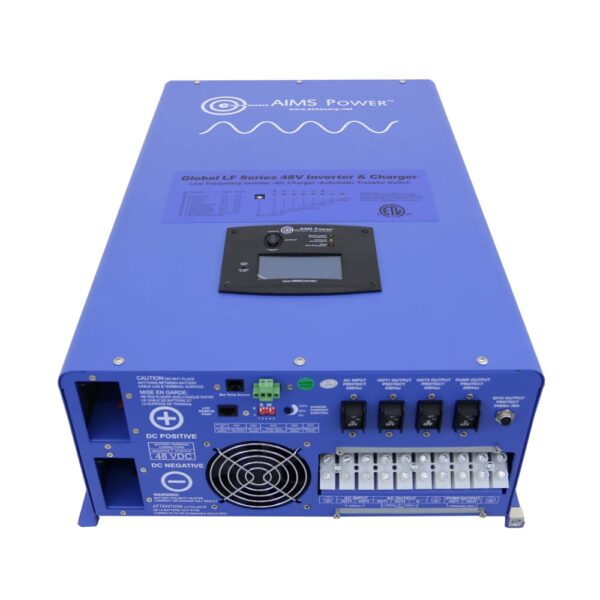

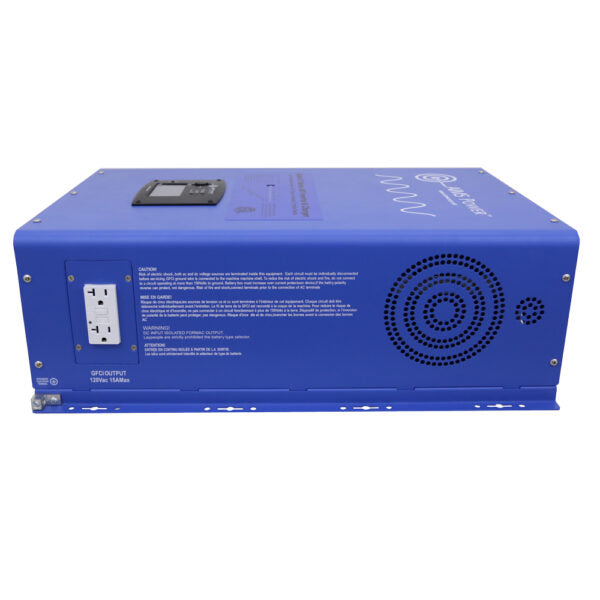

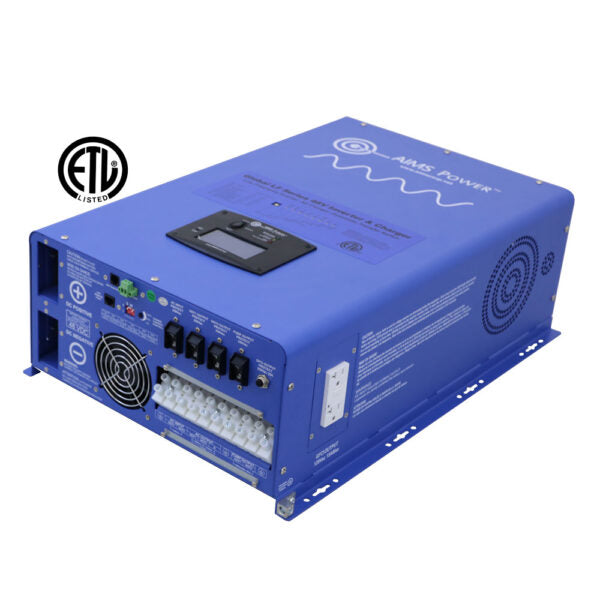

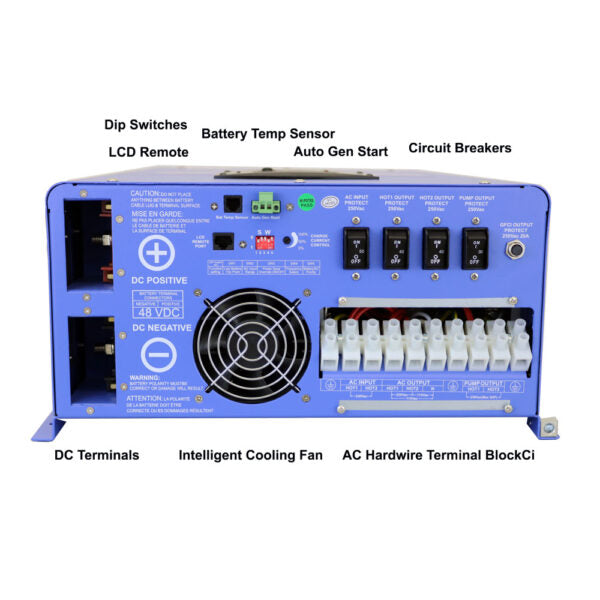

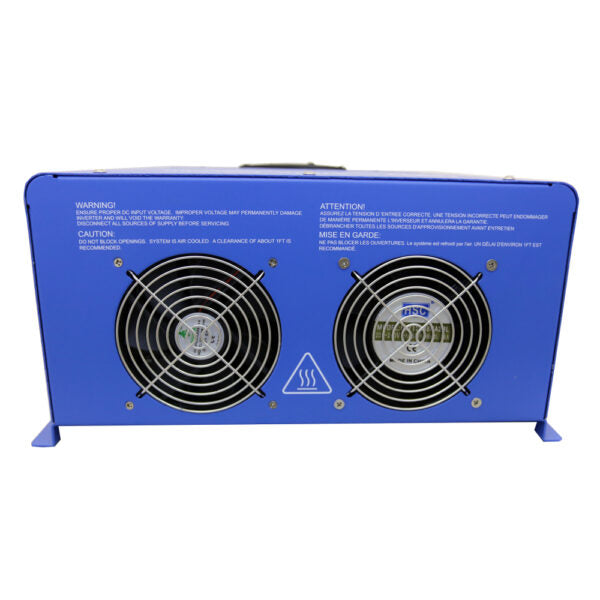

8,000 watt pure sine inverter charger 120/240vac ETL and CSA certified PICOGLF80KW48V240VS

Click here for more inverter charger info

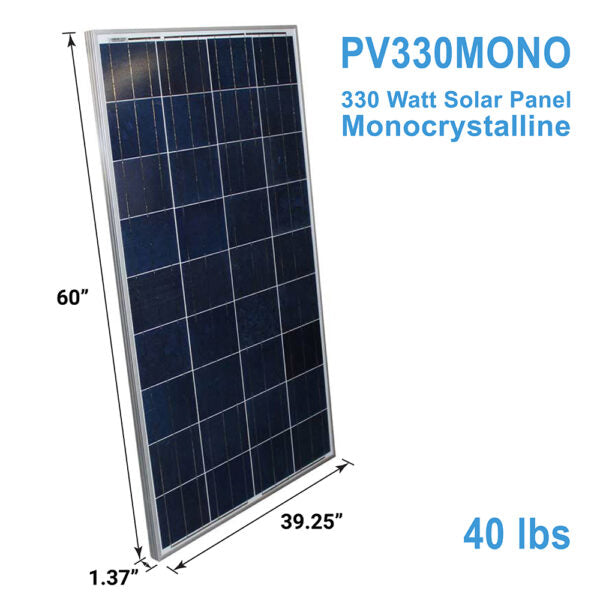

330 watt mono solar panel  Qty 12 – PV330mono @210 SQ FT

Click here for more panel info

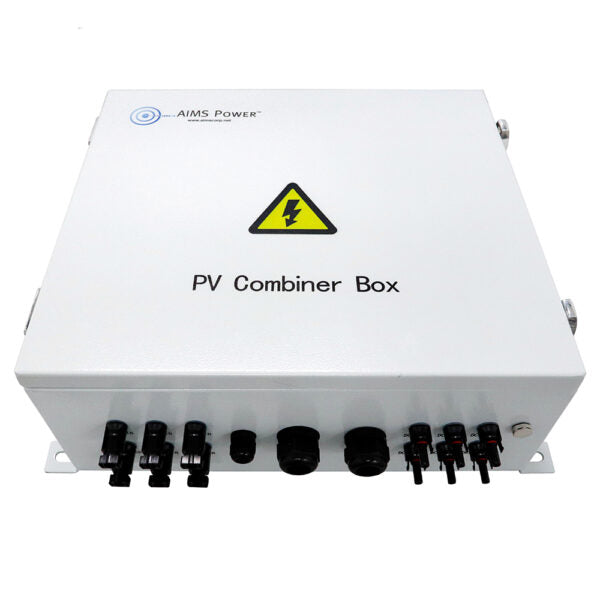

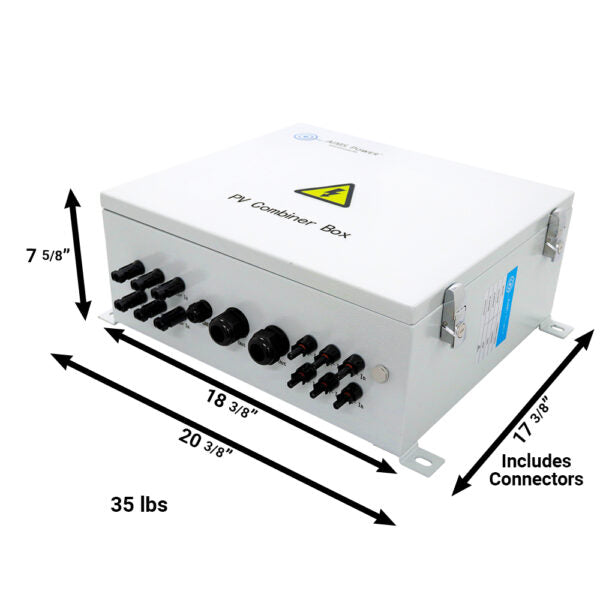

Combiner Box 6 String– Pre-wired

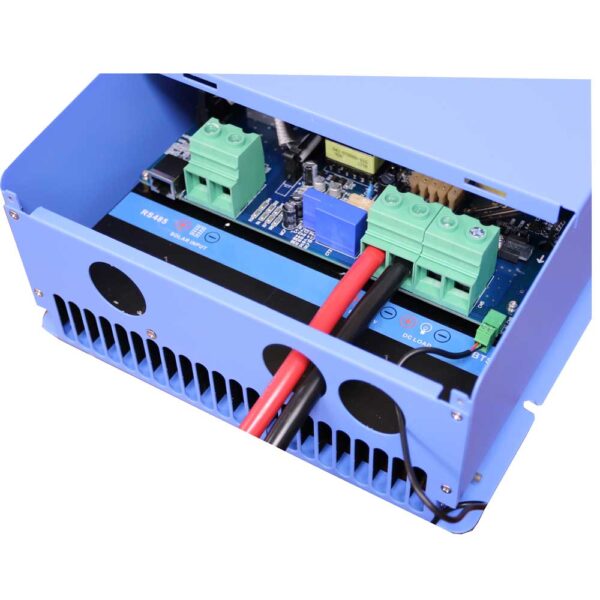

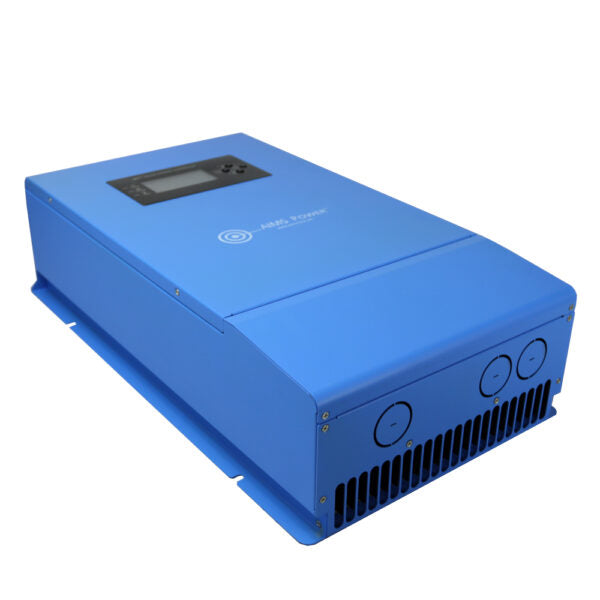

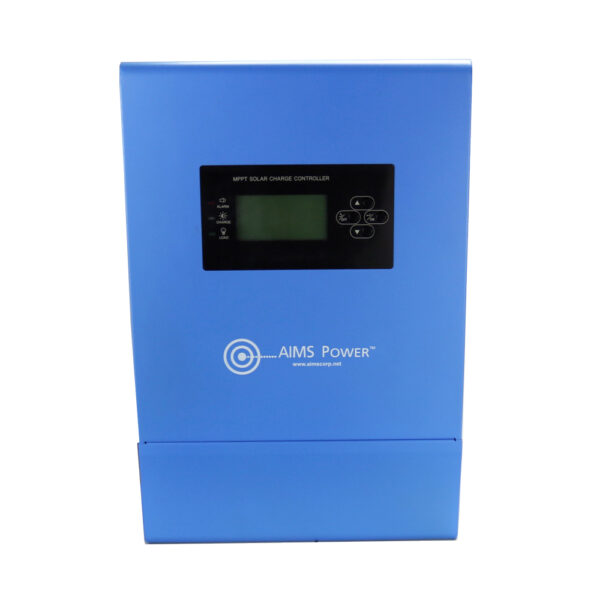

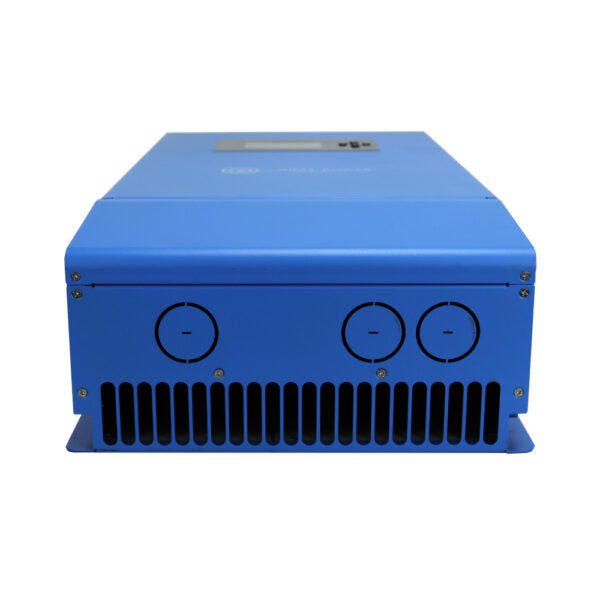

80 amp MPPT solar charge controller SCC80AMPPT

Click here for more charge controller info

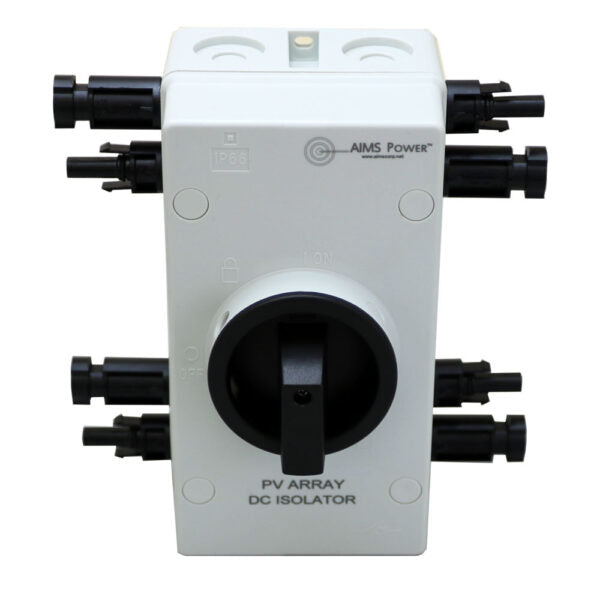

Quick Disconnect Switch DC1600V32A2IO

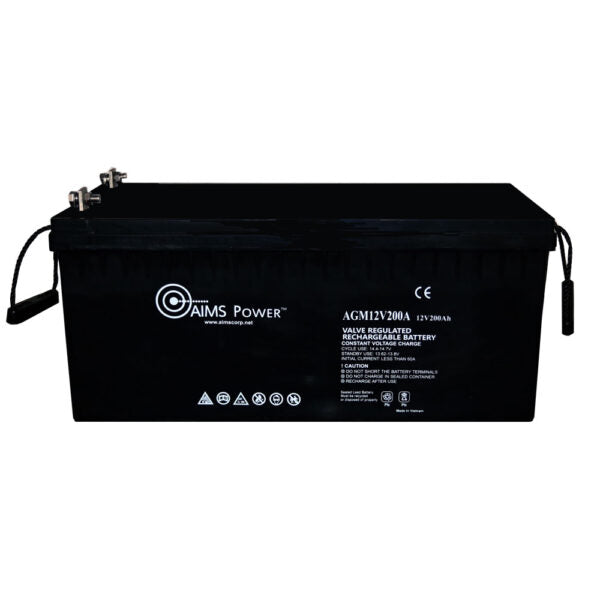

200 ah AGM deep cycle battery maintenance free sealed lead acid AGM12V200A – Qty 12

Click here for more battery info

  • PICOGLFBATS – qty 1 – battery temperature sensor
  • PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
  • PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
  • PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
  • CBL08FT6AWGC – 8 ft set charge controller to battery cables
  • CBL08FT1/0AWG- 8 ft set of 4 AWG cable battery bank to inverter
  • CBL02FT1/0AWG– qty 2 -2 ft 4 AWG cable (battery cables)
  • CBL01FT1/0AWGRED – qty 7 – 1 ft jumper for fuse kit and battery jumpers
  • ANL300KIT – 300 amp inline fuse kit for battery to inverter
  • ANL100KIT – 100 amp inline fuse kit for charge controller to battery
  • PVEXT15FT10AWG – qty 2 -15 ft PV extension wires male and female to connect solar panels in parallel

Features:

  • Everything you need for an off grid or backup solar system (mounting brackets/racks excluded)
  • Works with large size appliances up to 8000 watts/ 33 AC amps @ 240VAC and 66AC amps @ 120VAC
  • Ideal for tools, pumps, compressors, appliances and electronics
  • Automatically switches from grid power to solar power or can be used for all off grid applications
  • Need @210 SQ FT available for solar panels

*The solar panel array will recharge a 50% depleted 600 amp battery bank in <5  hours with full sunlight.*

              Product Specifications

              Aims Power Off Grid Solar Kit | 8000W Pure Sine Inverter | 3960 Watt Solar Panels | 600 Amp Batteries Product Specifications

              Specification Details
              Manufacturer Generic
              Part Number KITD-80W48V3840W
              Item Weight 600 pounds
              Product Dimensions 80 x 80 x 80 inches
              Included Components 3960W Solar panels, 8000W Pure Sine Power Inverter Charger 48VDC 120/240VAC, 12×200Ah AGM batteries, 80A MPPT charge controller
              Solar Panels 12 × 330W Monocrystalline
              Inverter-Charger 8000W Pure Sine, 48VDC, 120/240VAC
              Battery Bank 12 × 200Ah AGM
              Controller 80A MPPT

              Product Manual

              AIMS Power 8000 Watt 48 volt Inverter Charger 120/240vac – PICOGLF80W48V240VS

              AIMS Power 330 Watt Solar Panels 6PK – PV320MONO

              AIMS Power 6 Strings – COM6IN120A

              AIMS Power 80 AMP Charge Controller – SCC80AMPPT

              AIMS Power Disconnect Switch – DC1600V32A2IO.pdf

              AIMS Power AGM Battery – 200 amp 12V

              Product Warranty

              AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

              https://www.aimscorp.net/product_registration.php
