Aims Power Off Grid Solar Kit | 6000W Pure Sine Inverter 48VDC | 1980 Watt Solar Panels | 400A Batteries

Description

Powerful off grid or back up power kit. Up to 50 amps of power (@120V or 25 at 240V) and the panels will keep up with your load. If you lose grid power, this kit will automatically kick in.

Whether you’re supplying power to a business office or whole house, this solar kit includes all necessary products required and bundled for your convenience. This 1980 watt solar kit comes with a 6000 watt low frequency inverter charger (split phase 120/240VAC). The inverter has a built in charger and can recharge the batteries when city or generator power is available. The solar panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The kit is packed with  battery power to power your items at night or on shady days.

The pre-wired solar array combiner box makes installation a breeze and provides extra safety features for your system. Each system comes with a wiring diagram upon purchase.

The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available.  If grid power is lost, your solar system will automatically kick in. The 48VDC is more efficient, generates less heat allowing you to use smaller cables and fuses. The mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

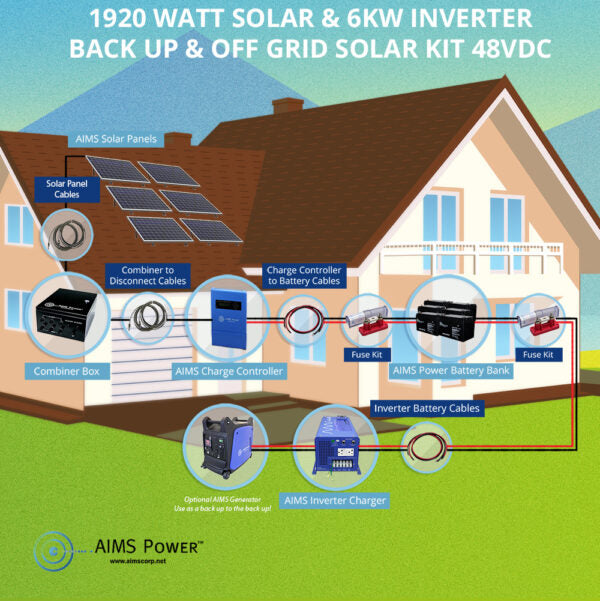

1980 WATT SOLAR WITH 6,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID SOLAR KIT

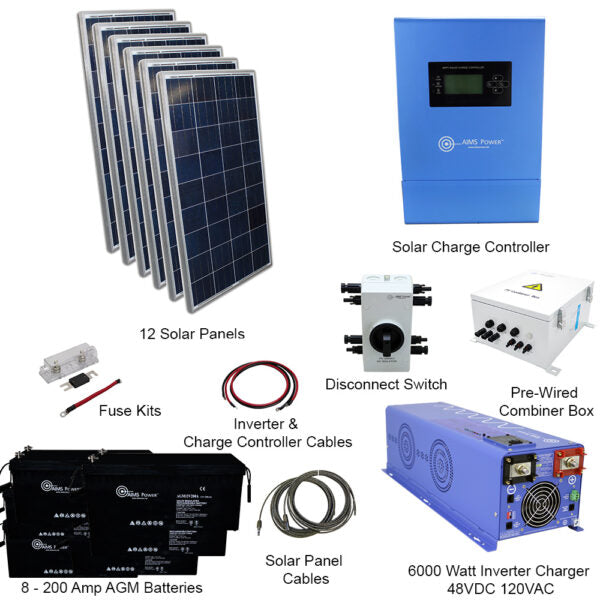

KIT COMPONENTS

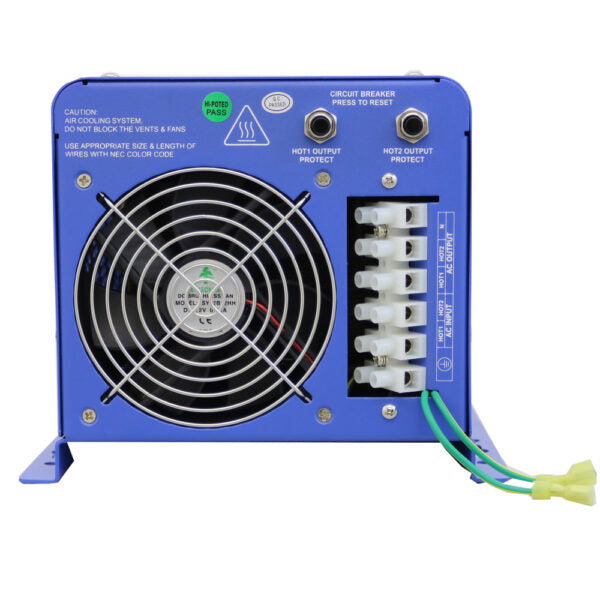

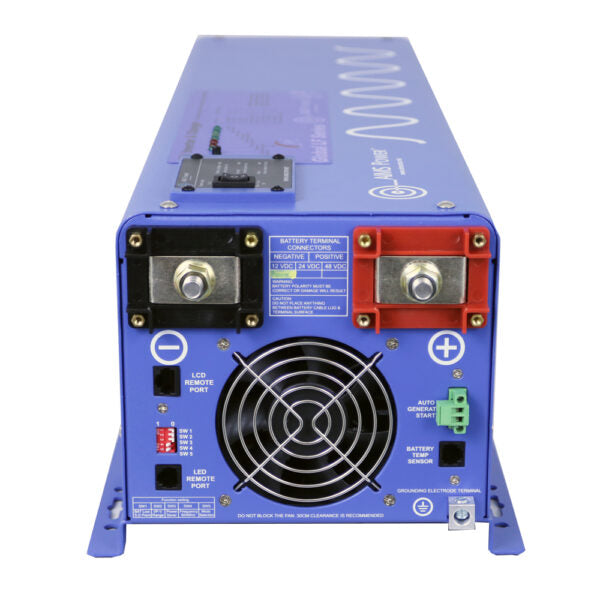

6,000 watt pure sine inverter charger 120/240vac 48V runs more efficiently

Click here for more inverter charger info

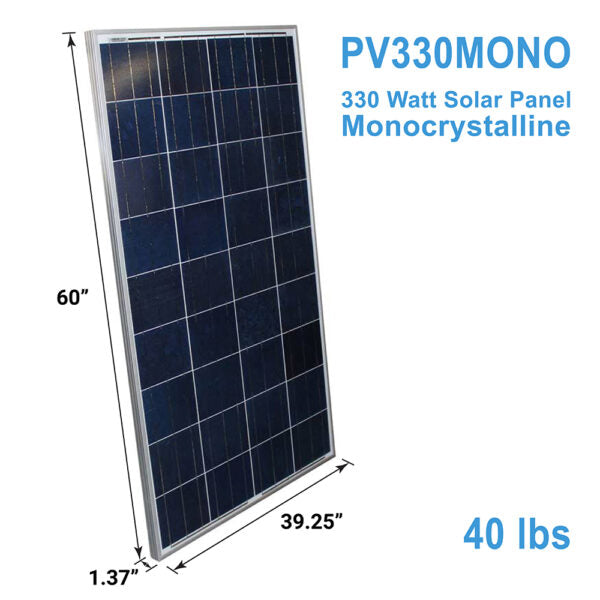

330 watt mono solar panel  Qty 6 – PV330mono @210 SQ FT

Click here for more panel info

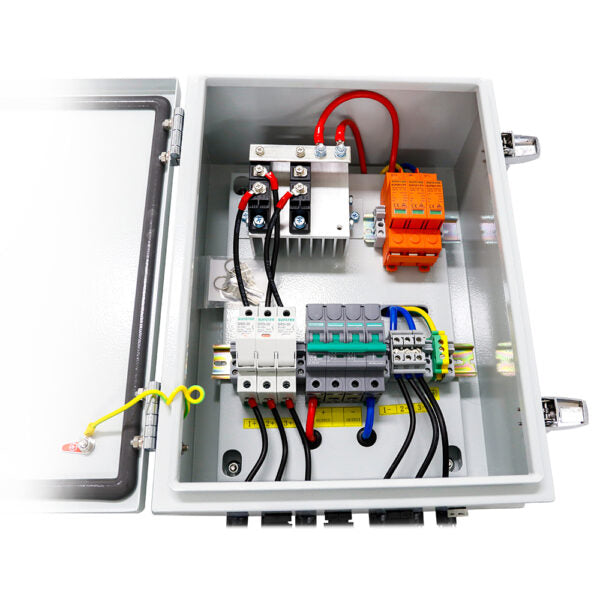

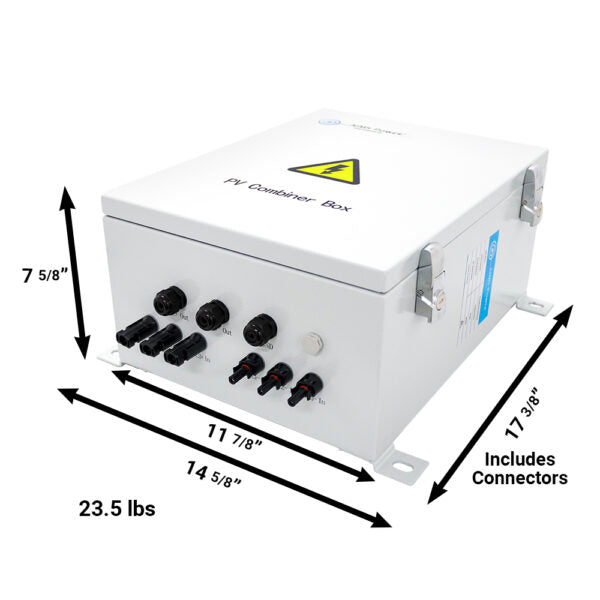

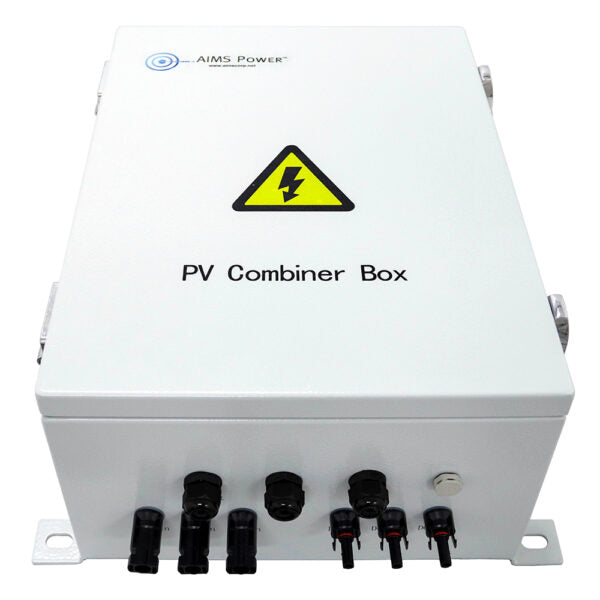

Combiner Box 3 String– Pre-wired

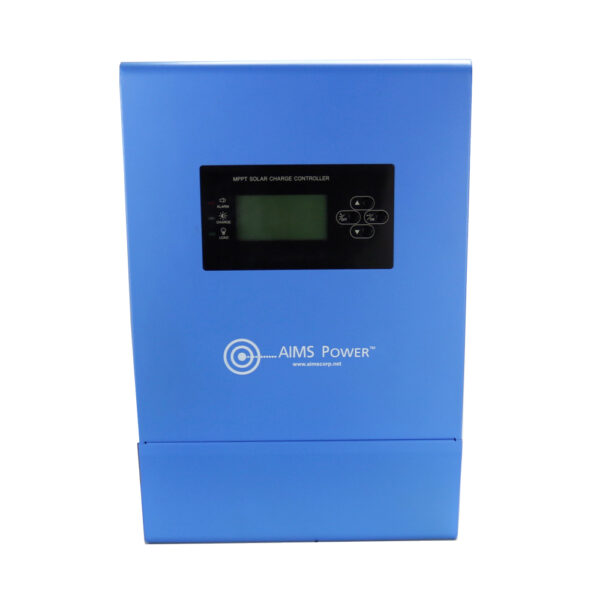

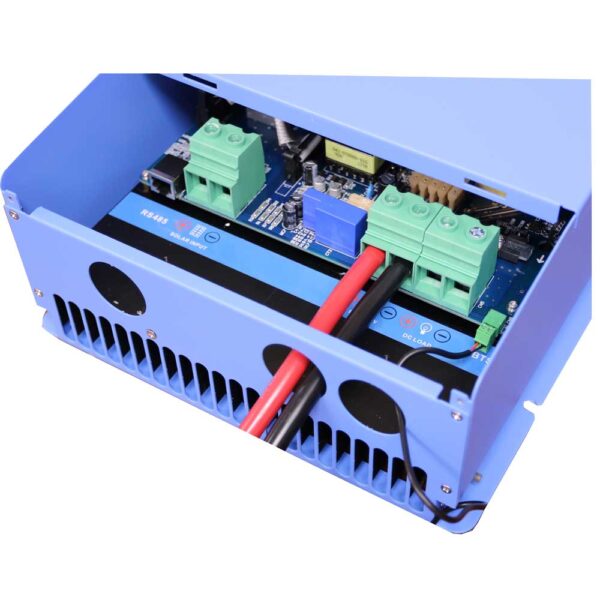

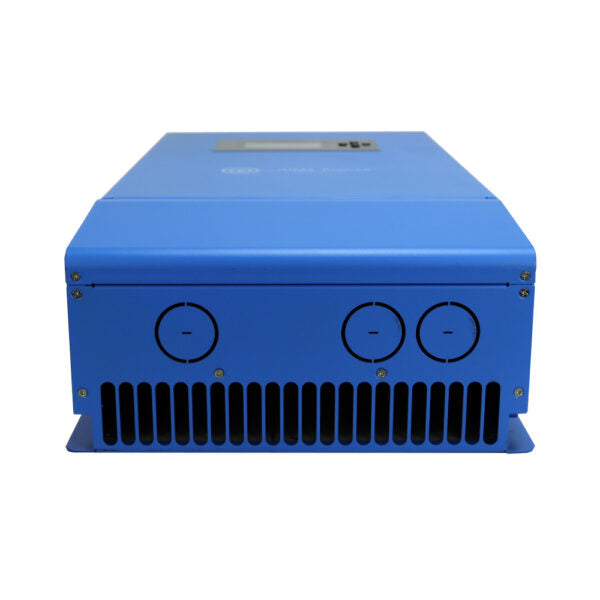

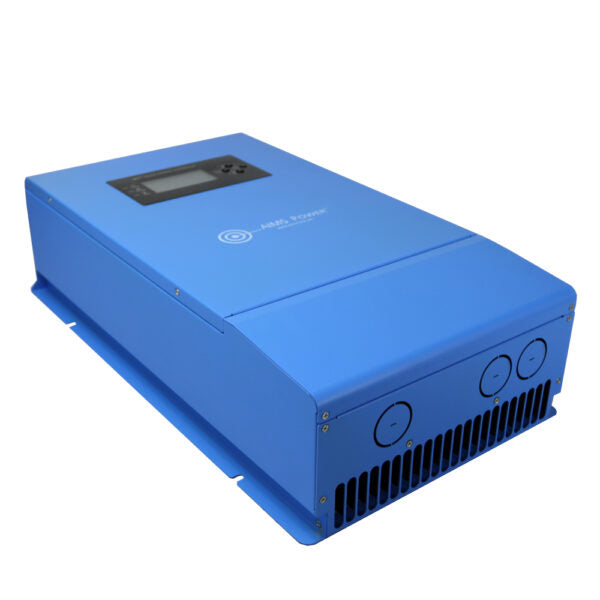

40 amp MPPT solar charge controller SCC40AMPPT

Click here for more charge controller info

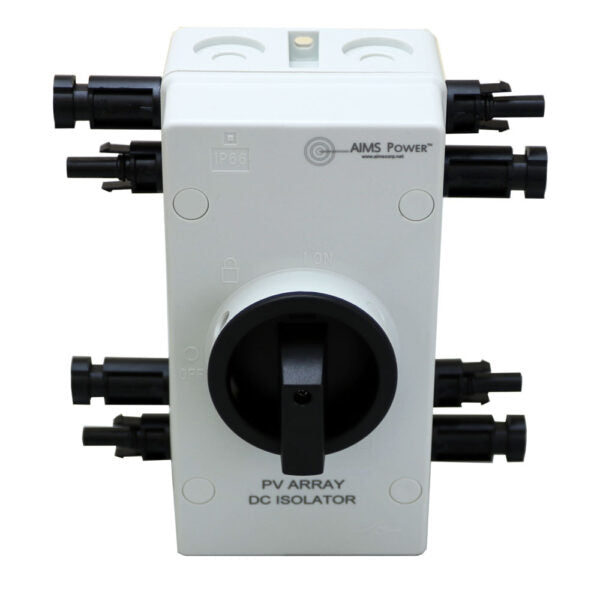

Quick Disconnect Switch DC1600V32A2IO

200 ah AGM deep cycle battery maintenance free sealed lead acid AGM12V200A – Qty 8

Click here for more battery info

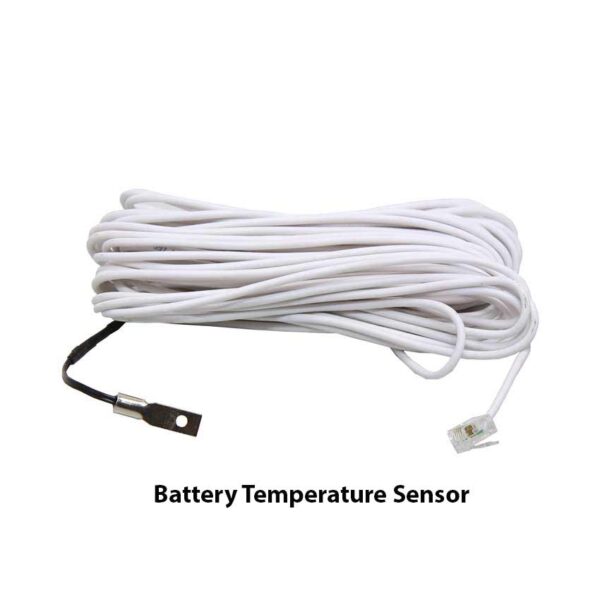

  • PICOGLFBATS – qty 1 – battery temperature sensor
  • PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
  • PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
  • PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
  • CBL08FT6AWGC – 8 ft set charge controller to battery cables
  • CBL08FT1/0AWG- 8 ft set of 4 AWG cable battery bank to inverter
  • CBL02FT1/0AWG– qty 2 -2 ft 4 AWG cable (battery cables)
  • CBL01FT1/0AWGRED – qty 7 – 1 ft jumper for fuse kit and battery jumpers
  • ANL150KIT – 300 amp inline fuse kit for battery to inverter
  • ANL50KIT – 100 amp inline fuse kit for charge controller to battery
  • PVEXT15FT10AWG – qty 2 -15 ft PV extension wires male and female to connect solar panels in parallel

1980 WATT SOLAR WITH 6,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC 120/240VAC OFF GRID SOLAR KIT

Features:

  • Everything you need for an off grid or backup solar system (mounting brackets/racks excluded)
  • Works with large size appliances up to 6000 watts/ 25 AC amps @ 240VAC and 50AC amps @ 120VAC
  • Ideal for tools, pumps, compressors, appliances and electronics
  • Automatically switches from grid power to solar power or can be used for all off grid applications
  • Need @72 SQ FT available for solar panels

*The solar panel array will recharge a 50% depleted 600 amp battery bank in <4  hours with full sunlight.*

                  Product Specifications

                  Aims Power Off Grid Solar Kit | 6000W Pure Sine Inverter 48VDC | 1980 Watt Solar Panels | 400A Batteries Product Specifications

                  Specification Details
                  Manufacturer Generic
                  Part Number KITD-6KW48V1920W
                  Solar Panel Output 1,980 W
                  Inverter Power 6,000 W Pure Sine
                  System Voltage 48 V DC
                  Battery Capacity 400 Ah
                  Included Components 1,980 W solar array with 6,000 W pure sine inverter charger
                  Unit Dimensions 36 × 36 × 18 inches
                  Unit Weight 450 lbs
                  Shipping Dimensions 40 × 40 × 24 inches
                  Shipping Weight 500 lbs

                  Product Manual

                  AIMS Power 6000 Watt 48 volt Inverter Charger – PICOGLF60W48V120V

                  AIMS Power 330 Watt Solar Panels 6PK – PV320MONO

                  AIMS Power 6 Strings – COM6IN120A

                  AIMS Power 40 AMP Charge Controller -SCC40AMPPT

                  AIMS Power Disconnect Switch – DC1600V32A2IO.pdf

                  AIMS Power AGM Battery – 200 amp 12V
