Aims Power Off Grid Solar Kit | 2000W Pure Sine Inverter Charger | 1980 Watt Solar Panels | 200 A Batteries

Description

Off grid or back up power kit for your essential items. Up to 16 amps of power and the panels will keep up with your load. If you lose grid power, this kit will automatically kick in.

This solar kit includes all necessary products required and bundled for your convenience. This 1980 watt solar kit comes with a 2000 watt low frequency inverter charger. The inverter has a built in charger and can recharge the batteries when city or generator power is available. The solar panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The kit is packed with  battery power to power your items at night or on shady days.

The pre-wired solar array combiner box makes installation a breeze and provides extra safety features for your system. Each system comes with a wiring diagram upon purchase.

The pure sine inverter has a built in smart charger, automatic transfer switch and can recharge the batteries when city or generator power is available.  If grid power is lost, your solar system will automatically kick in. The 48VDC is more efficient, generates less heat allowing you to use smaller cables and fuses. The mono crystalline panels are covered in tempered glass to protect from hazardous weather and the PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering.

Each system comes with a wiring diagram upon purchase.

1980 WATT SOLAR WITH 2,000 WATT PURE SINE POWER INVERTER CHARGER 48VDC OFF GRID SOLAR KIT

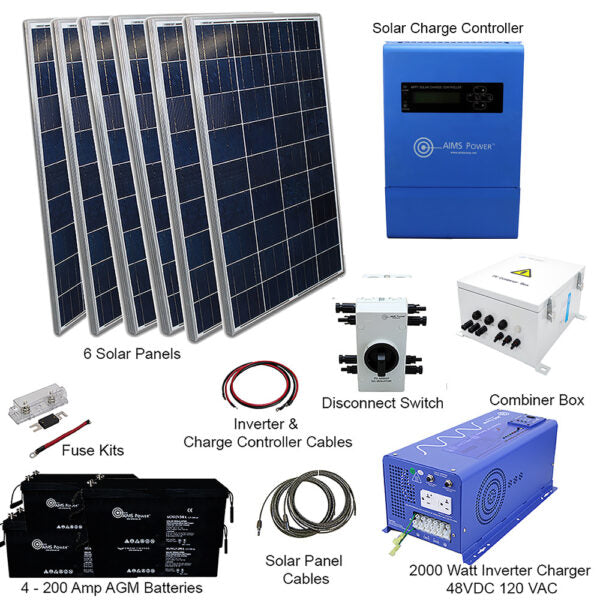

KIT COMPONENTS

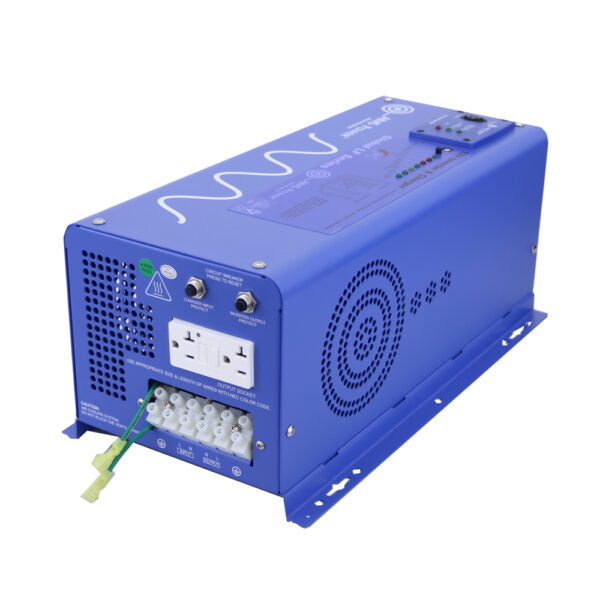

2,000 watt pure sine inverter charger 48VDC

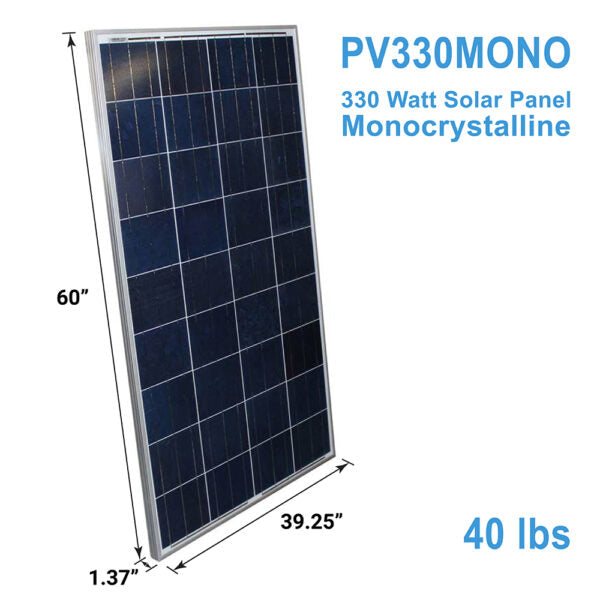

330 watt mono solar panel  Qty 6 – PV330mono @210 SQ FT

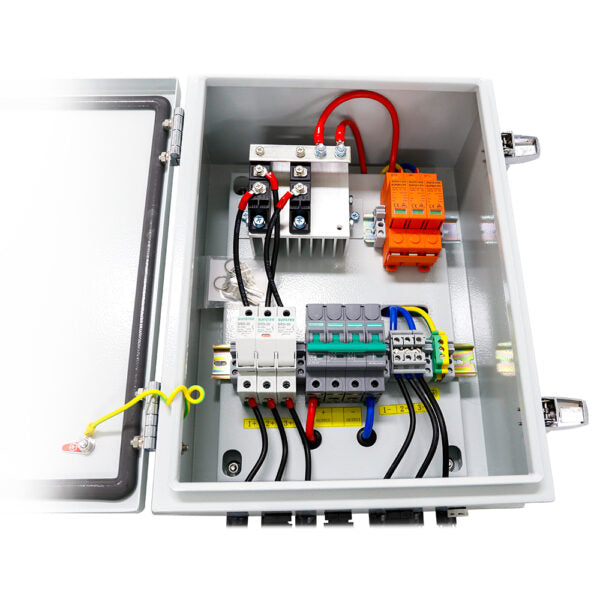

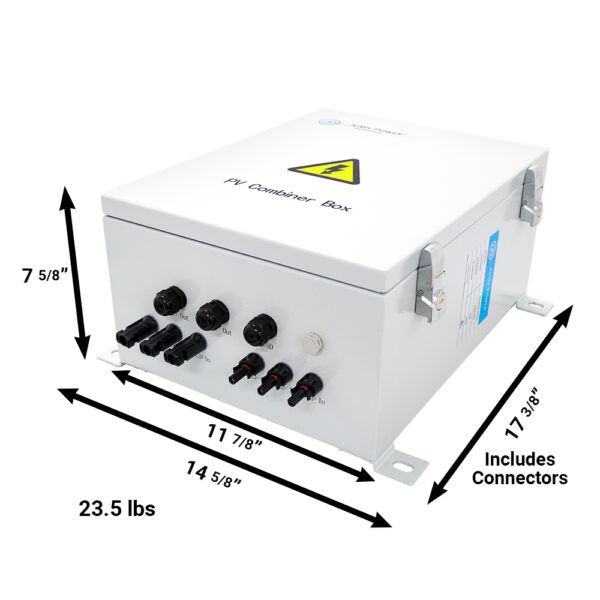

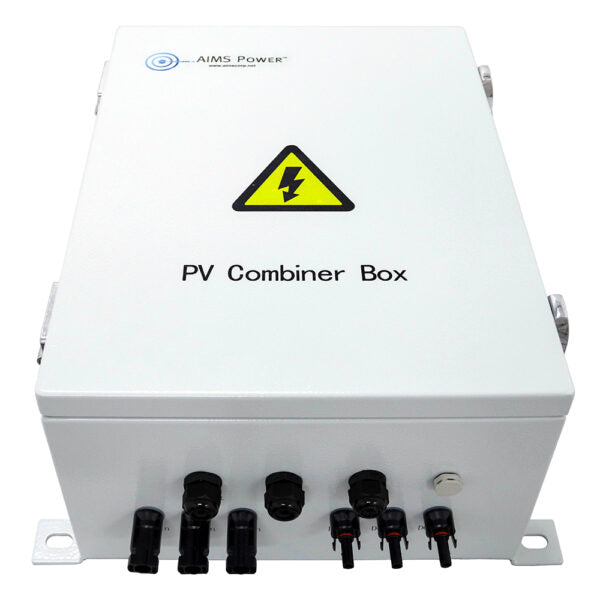

Combiner Box 3 String– Pre-wired

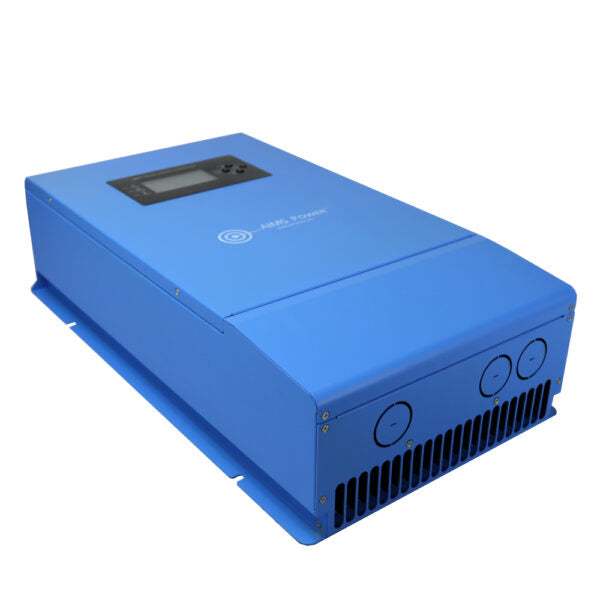

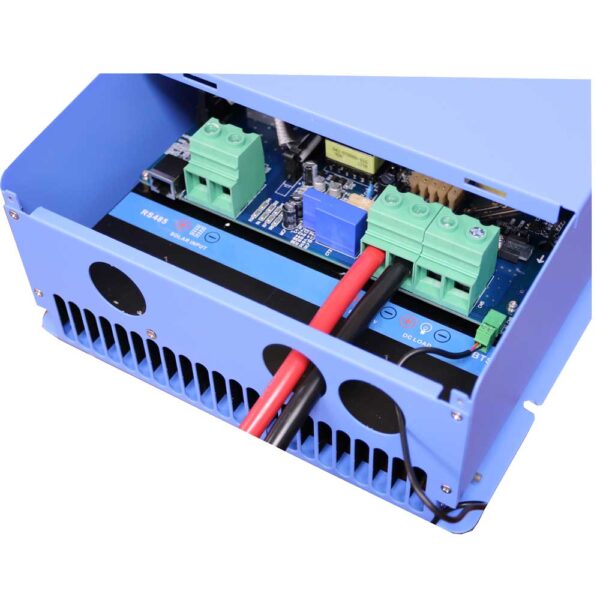

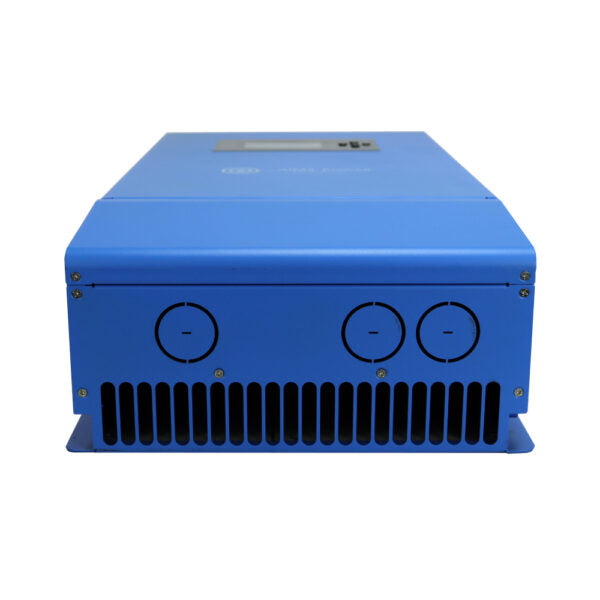

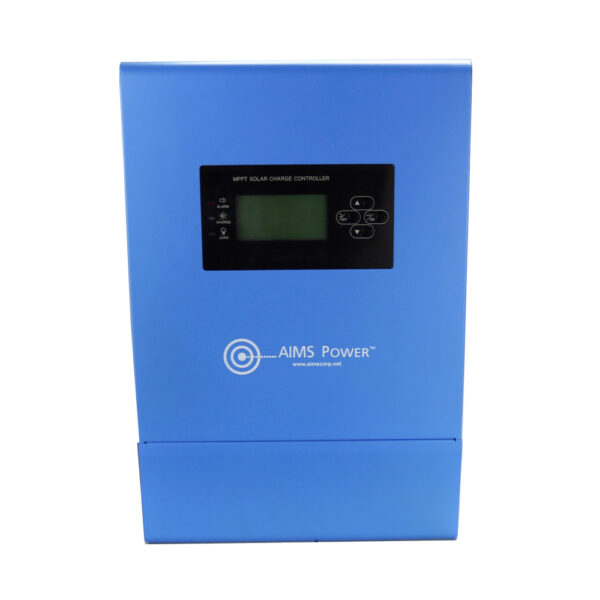

40 amp MPPT solar charge controller SCC60AMPPT

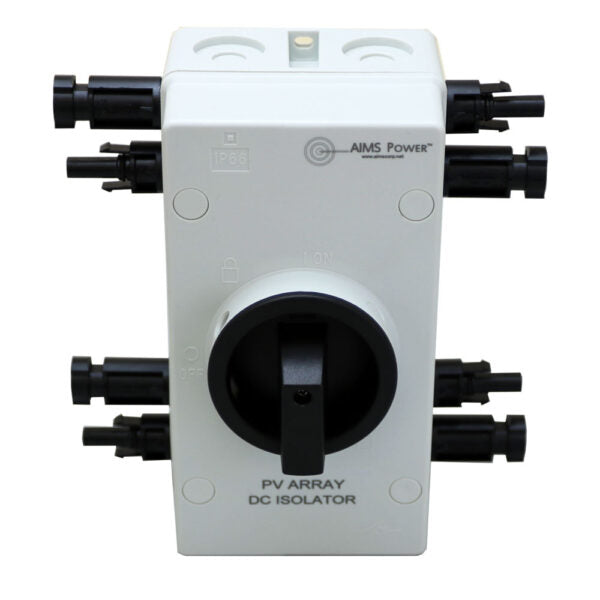

Quick Disconnect Switch DC1600V32A2IO

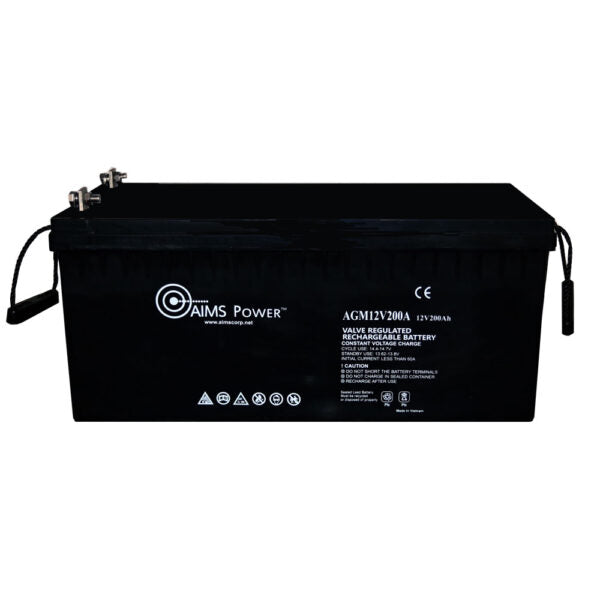

200 ah AGM deep cycle battery maintenance free sealed lead acid AGM12V200A – Qty 4

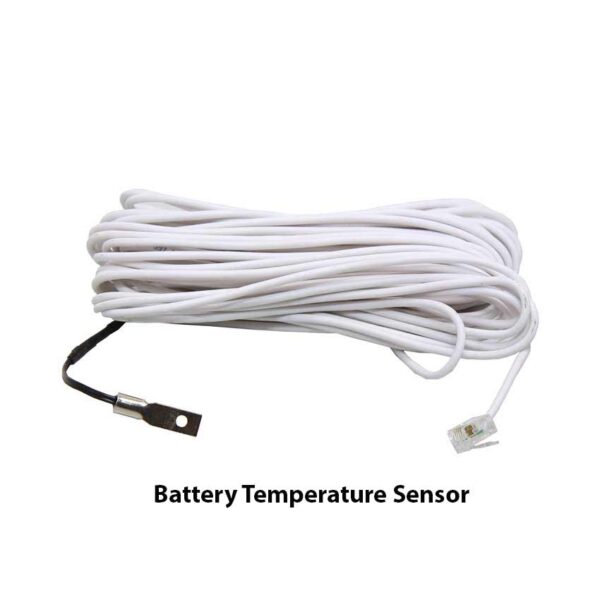

  • PICOGLFBATS – qty 1 – battery temperature sensor
  • PVEXT20FT10AWG – PV female & male extension cables for solar array to combiner box and disconnect to solar charge controller
  • PVM100FT10AWG – 100 foot PV wire for solar panel (male) from combiner box to disconnect
  • PVF100FT10AWG – 100 foot PV wire for solar panel (female) from combiner box to disconnect
  • CBL08FT6AWGC – 8 ft set charge controller to battery cables
  • CBL08FT1/0AWG- 8 ft set of 4 AWG cable battery bank to inverter
  • CBL01FT6AWGRED – qty 4 – 1 ft jumper for fuse kit and battery jumpers
  • ANL300KIT – 300 amp inline fuse kit for battery to inverter
  • ANL80KIT – 80 amp inline fuse kit for battery to inverter and charge controller to battery – Qty 2

Features:

  • Everything you need for an off grid or backup solar system (mounting brackets/racks excluded)
  • Works with large size appliances up to 6000 watts/ 25 AC amps @ 240VAC and 50AC amps @ 120VAC
  • Ideal for tools, pumps, compressors, appliances and electronics
  • Automatically switches from grid power to solar power or can be used for all off grid applications
  • Need @72 SQ FT available for solar panels

*The solar panel array will recharge a 50% depleted 200 amp battery bank in <3  hours with full sunlight.*

      Product Specifications

      Aims Power Off Grid Solar Kit | 2000W Pure Sine Inverter Charger | 1980 Watt Solar Panels | 200 A Batteries Product Specifications

      Specification Details
      Manufacturer AIMS Power
      SKU / Part Number KITD-2KW48V1920W
      System Type Off-Grid / Backup Solar Power Kit
      Inverter Power 2,000W Pure Sine Inverter Charger
      Inverter Voltage 48V DC
      AC Output 120/240VAC
      Solar Panel Capacity 1,980 Watts
      Solar Panels 6 × 330W Monocrystalline Panels
      Battery Capacity 200Ah AGM Deep Cycle Batteries
      Battery Quantity 4 × 12V 200Ah AGM
      Charge Controller MPPT Solar Charge Controller (40A)
      Combiner Box Pre-wired 3-string combiner box
      Transfer Switch Automatic (built-in inverter)
      Battery Charger Built-in smart charger
      System Efficiency 48V system for reduced heat and cable size
      Required Solar Panel Space ~72 sq ft
      Application Small home, cabin, backup power, off-grid use
      Included Wiring & Protection PV wiring, extension cables, fuses, disconnect switch
      Installation Wiring diagram included
