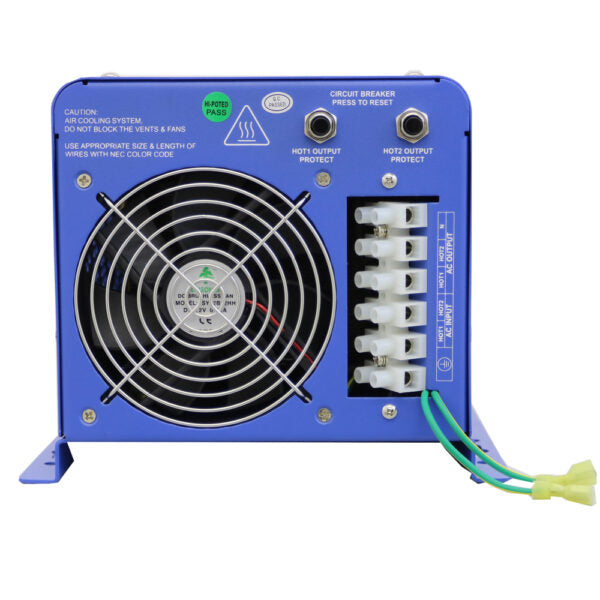

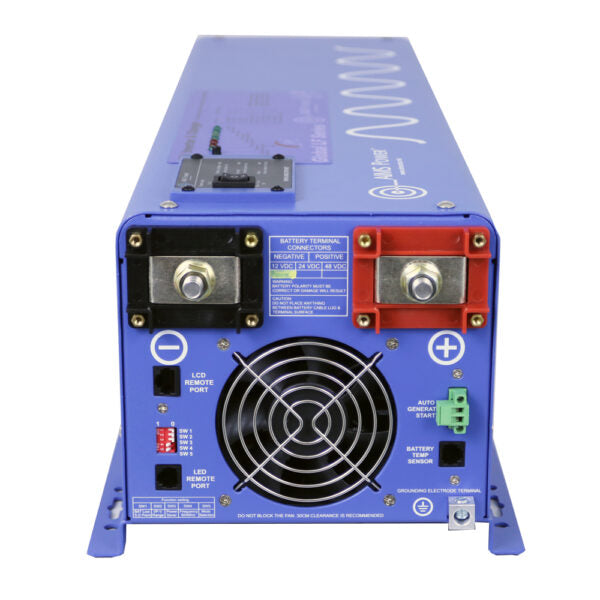

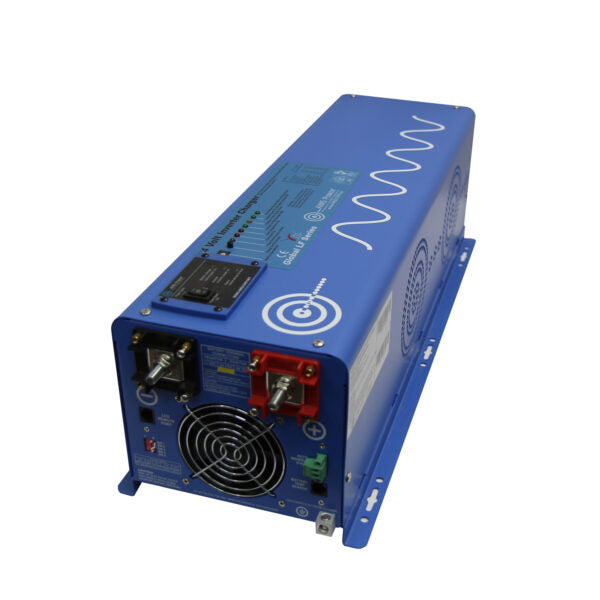

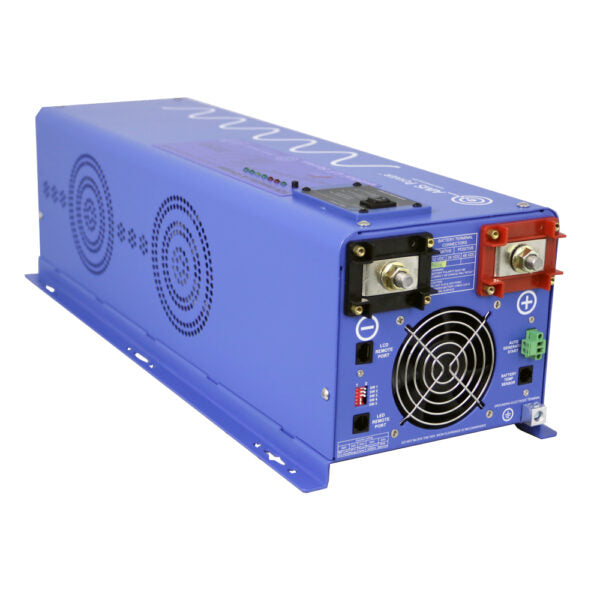

Aims Power 6000 Watt 48V Pure Sine Inverter Charger

Description

The AIMS Power low frequency 6000 Watt 48-volt, split phase 120/240 Vac power inverter charger is not your average every-day power inverter. This is a  top-of-the-line power inverter, built for the purpose of running your whole house (smaller home), business office or large RV. This inverter charger is perfect for your off grid system or for use as an emergency backup supply. Built with a 48 volt DC input, this inverter performs with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using inverters that accept 12 or 24 volts. This can be an attractive feature for sustainability lovers looking to live as efficiently as possible.

The 6000 watt inverter charger can utilize 240V grid power to charge the batteries and send the power out to your application using the built-in 60 amp charger. If the grid power is lost, this inverter is equipped with a seamless automatic transition transfer switch, becoming a true UPS (Uninterruptable Power Supply) when you need it in emergency situations and natural disasters (battery required).

Product Specifications

Aims Power 6000 Watt 48V Pure Sine Inverter Charger Product Specifications

Output Specifications:

  • Continuous output power: 6000 Watt
  • Surge rating: 18,000 Watt (20 seconds)
  • Output waveform: pure sine/same as input (bypass mode)
  • Output voltage: 100-110-120/220/230/240 VAC – split phase 120 & 240Vac
  • Nominal efficiency: >88% (peak)
  • Line mode efficiency: >95%
  • Output frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical transfer time: 10ms (Max)
  • THD: < 10% DC
  • Ambient operating temperature: 14°F to 122°F (-10°C to 50°C)

Input Specifications:

  • Nominal input voltage: 48 VDC
  • Minimum start voltage: 44 VDC
  • Low battery alarm: 42 Vdc-44  VDC
  • Low battery trip: 40 VDC-42VDC
  • High voltage alarm: 64 VDC
  • Low battery voltage restart: 53.2 VDC
  • Idle consumption: 1.67 amps DC
  • Power saver mode idle consumption: <.83 amps DC

Charger Specifications:

  • Output voltage: depends on battery type
  • Charger rate: 60A
  • Selectable charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four stage smart charger

Transfer Switch Specifications:

  • 75 amp @ 120 Vac and 40 AMP @ 240 Vac automatic transfer switch (bypass)
  • 10 ms (max)

Dimensions:

  • Unit weight: 80 lbs.
  • Unit size: L x W x H: 27.88 x 8.74 x 7.10 inches
  • Shipping weight: 89 lbs.
  • Shipping size: L x W x H: 30.5 x 14.25 x 13.75 inches

Product Manual

AIMS Power 6000 Watt 48 volt Inverter Charger – PICOGLF60W48V120V

Product Warranty

AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:

https://www.aimscorp.net/product_registration.php
