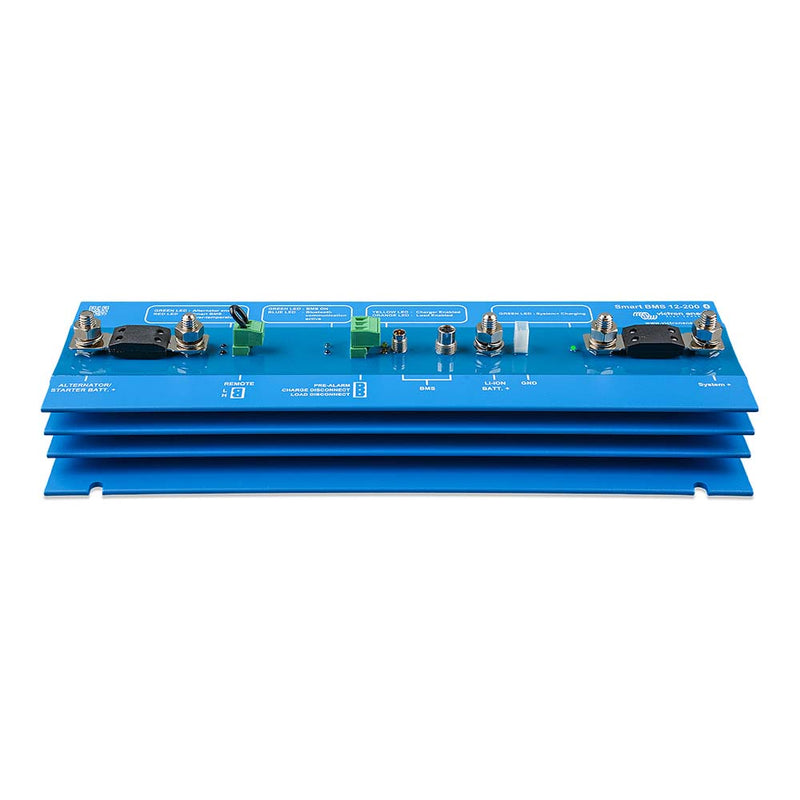

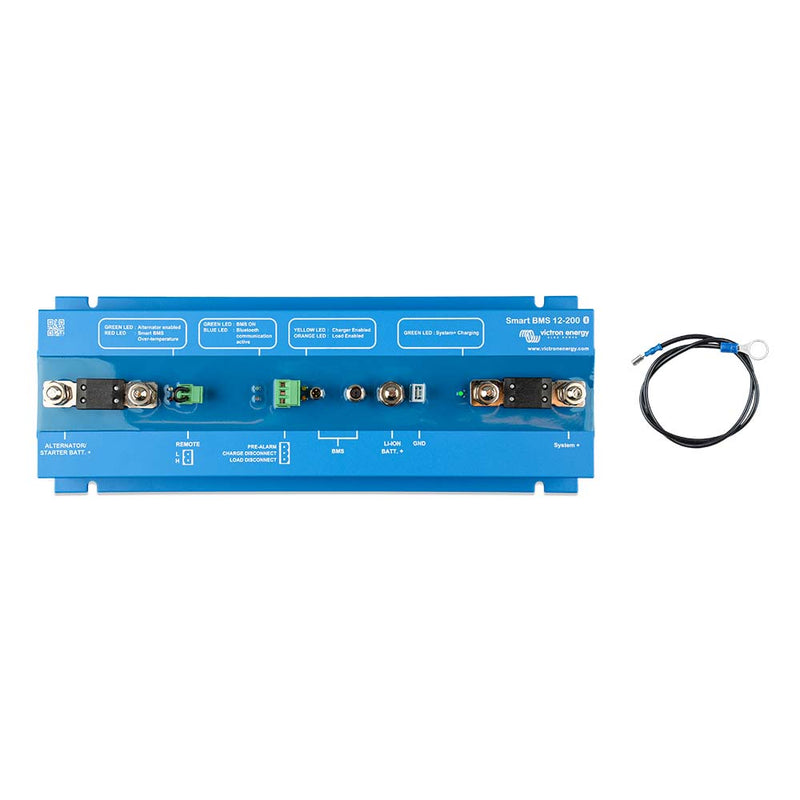

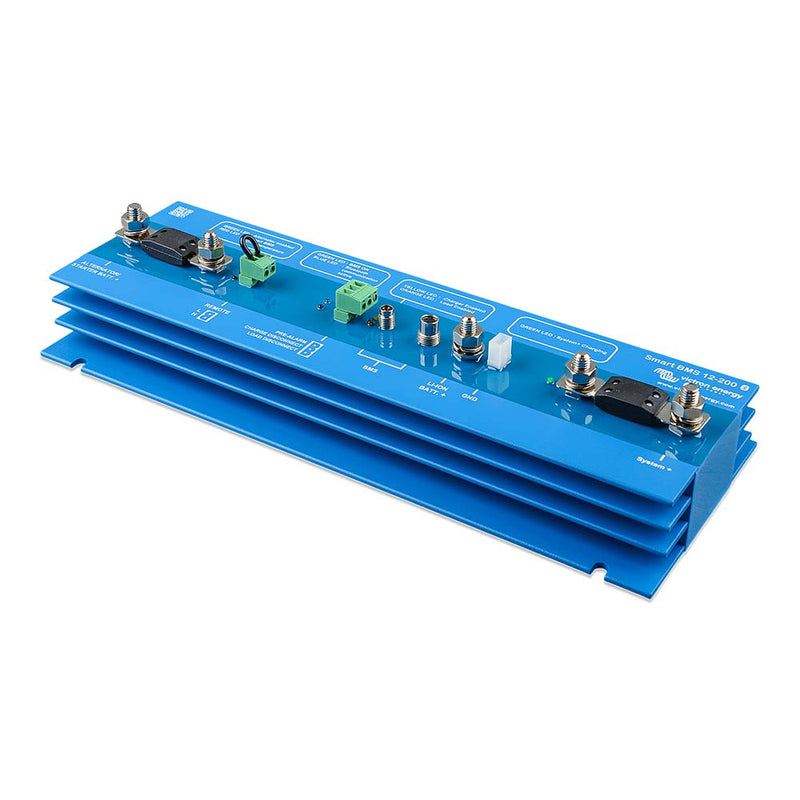

Victron Energy Smart BMS 12/200 f/Victron LIFEPO4 Batteries 12VDC Only [BMS210055000]

The Smart BMS 12/200 is an all-in-one Battery Management system for Victron Lithium-Iron-Phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator such as in vehicles and boats.

It combines a Current Limiter, Battery Combiner, and Battery Protector in a robust and compact solution and lets you safely connect any size 12V alternator (and starter battery), loads, and chargers to Smart Lithium batteries.

The Smart BMS 12/200 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources, or DC loads in case of low battery cell voltage, high battery cell voltage, or over temperature.

The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, so any size alternator (and starter battery) can be safely connected to the Smart Lithium battery (or battery bank) and the starter battery is protected from excessive discharge.

The BMS is equipped with Bluetooth for monitoring and configuration, a remote on/off the connector, to turn the BMS (and the system) off via a remote switch, and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.

Once purchased and in use, this product is non-returnable.

Product Specifications

Victron Energy Smart BMS 12/200 f/Victron LIFEPO4 Batteries 12VDC Only [BMS210055000] Product Specifications

Electrical Specifications

• System Voltage: 12 V

• Alternator (Starter Batt+) Port Max Charge Current: ~90 A with 100 A fuse (limits to 90% of fuse rating)

• System+ Port Max Charge/Discharge: 200 A continuous; 400 A peak

• Short-Circuit Withstand: 400 A peak

• Input Voltage to Start Charging: >13 V

• Quiescent Current:

  • Remote ON: 17.5 mA

  • Remote OFF: 6.5 mA

  • Fully Off: 4.5 mA

Outputs

• Load Disconnect Output: Open collector, normally high (~Vbat–0.1 V), max 10 mA source current

• Charge Disconnect Output: Same as Load output

• Pre‑Alarm Output: Open collector, normally floating; goes high during an alarm, max 1 A

Features & Communication

• Designed for Victron Smart LiFePO₄ batteries (M8 connectors)

• Bluetooth-enabled for wireless monitoring via VictronConnect

• Remote On/Off terminal for integrated system control

Physical & Environmental

• Operating Temperature Range: –40 °C to +60 °C

• Humidity: Up to 95% non-condensing

• Protection Rating: IP65 (electronics)

Product Manual

Quick Guide (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
