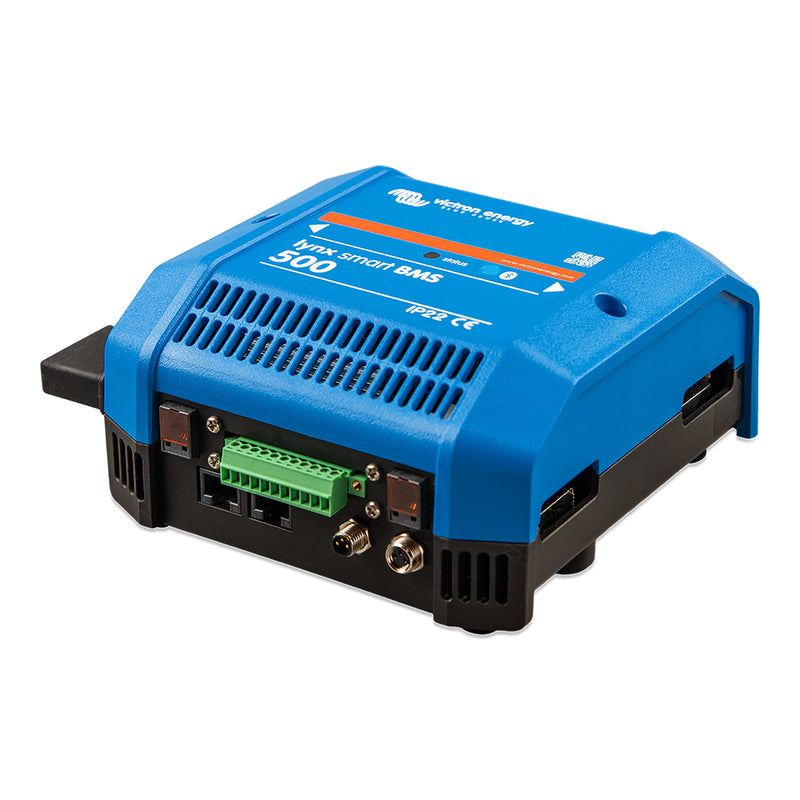

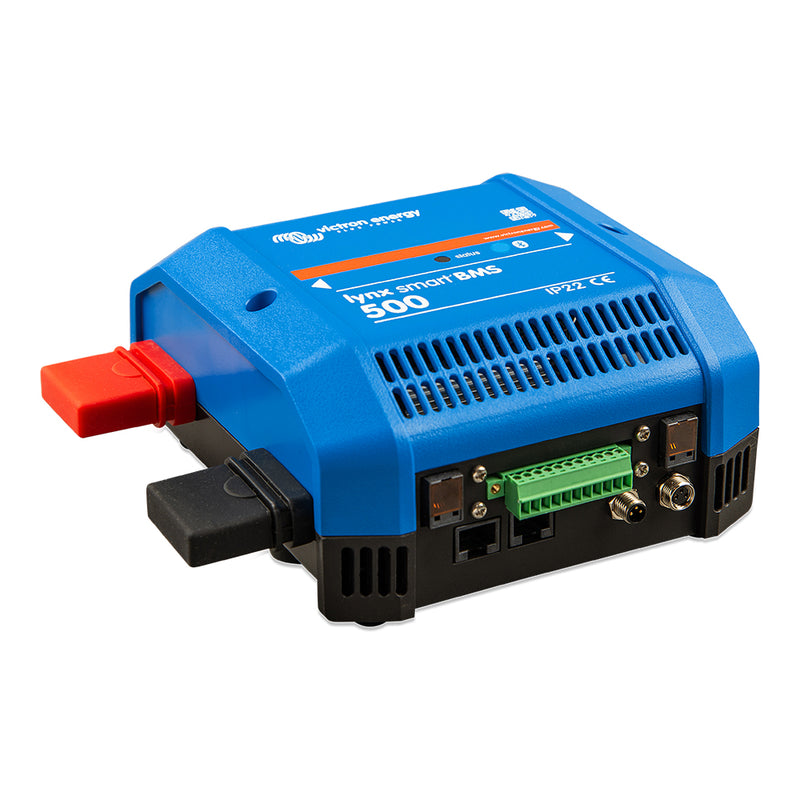

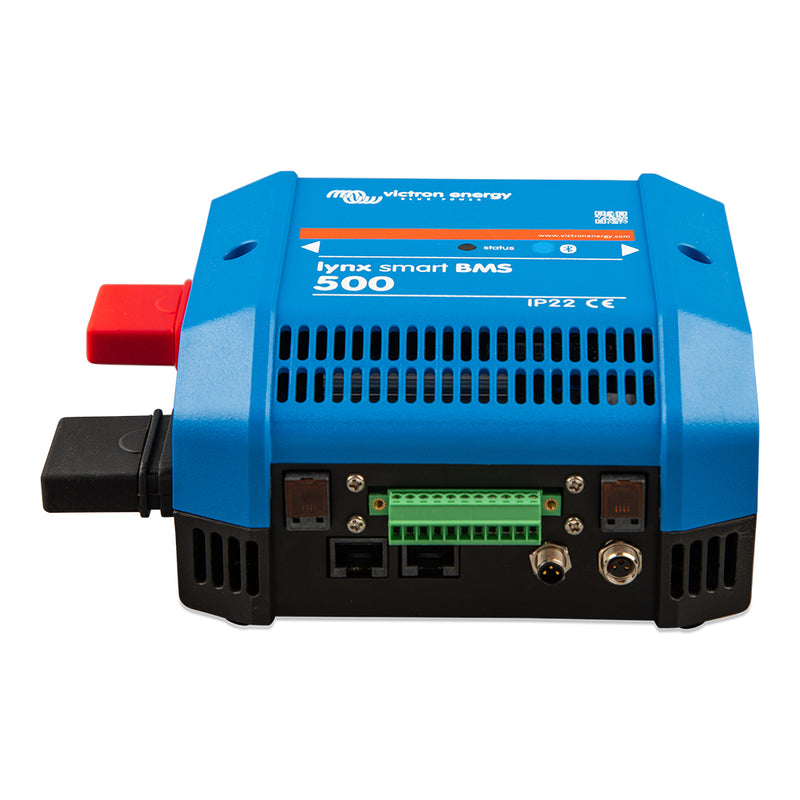

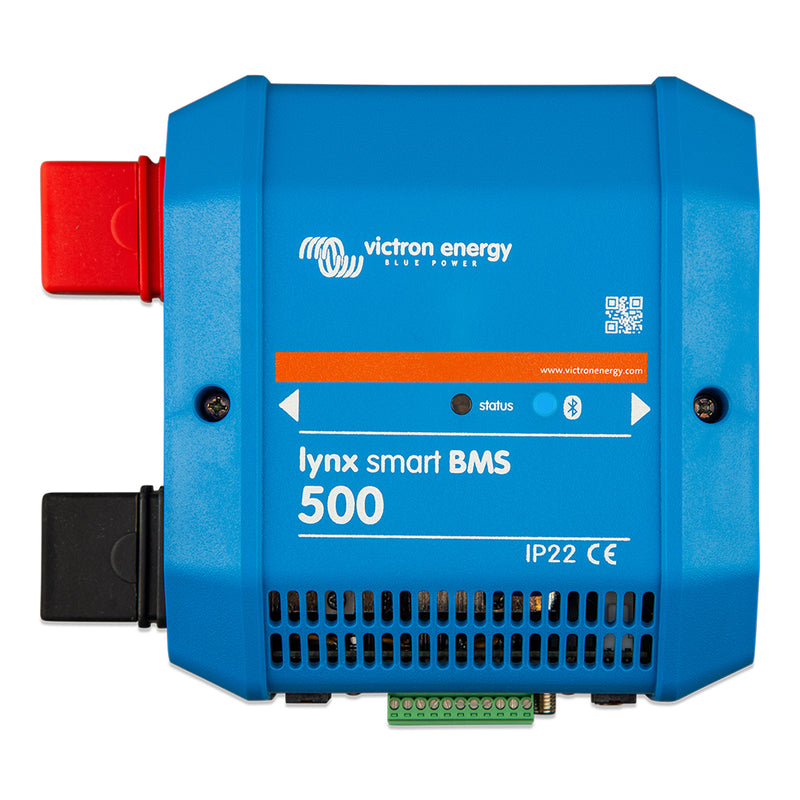

Victron Energy Lynx Smart BMS 500 Battery MGMT System f/Lithium Smart Batteries [LYN034160200]

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature-rich and complete option.

Features:

• Built-in 500A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch
• Battery monitor, indicating the state of charge percentage and more data.
• Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
• Bluetooth for use with our VictronConnect App, for setup and monitoring.
• Local and remote monitoring using a Victron GX device, for example, the Cerbo GX.

The Lynx Smart BMS is part of the modular Lynx distribution system.

Once purchased and in use, this product is non-returnable.

Product Specifications

Victron Energy Lynx Smart BMS 500 Battery MGMT System f/Lithium Smart Batteries [LYN034160200] Product Specifications

Power Specifications:

• System Voltage: 12V, 24V, or 48V (auto-detect)

• Input Voltage Range: 9 – 60V DC

• Main Contactor Continuous Current Rating: 500A

• Main Contactor Peak Current Rating: 600A for 5 minutes

• Power Consumption (ON): ~4.2 W (350 mA at 12V)

Protection & Outputs:

• Pre-charge Circuit: Yes, protects against inrush current

• Pre-alarm Relay: SPDT, 2A max at 60V DC

• Load Disconnect Output: Open collector, 60V/1A max

• Charge Disconnect Output: Open collector, 60V/1A max

• Aux Output: 1.1A max, protected by resettable fuse

• Allow-to-Charge Port: 0.5A at 60VDC, resettable fuse

• Allow-to-Discharge Port: 0.5A at 60VDC, resettable fuse

Communication & Monitoring:

• Built-in Bluetooth: Yes, for VictronConnect app

• VE.Can Ports: Yes (RJ45)

• Battery Monitoring: Integrated current and voltage monitoring

• Alarm Relay: 2A at 60V DC (SPDT)

Physical Specifications:

• Dimensions (H x W x D): 190 x 180 x 80 mm

• Weight: 1.9 kg

• Enclosure Material: ABS

• Busbar Material: Tinned copper

• Busbar Terminal: M8, 17 Nm torque

Environmental Ratings:

• Operating Temperature: -40 °C to +60 °C

• Storage Temperature: -40 °C to +60 °C

• Humidity: Up to 95% non-condensing

• Ingress Protection: IP22

Compliance:

• EMC: EN-IEC 61000-6-3

• Safety: EN-IEC 63000

• Quality Management: ISO 9001:2015

Product Manual

Quick Guide (pdf)
Brochure (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
