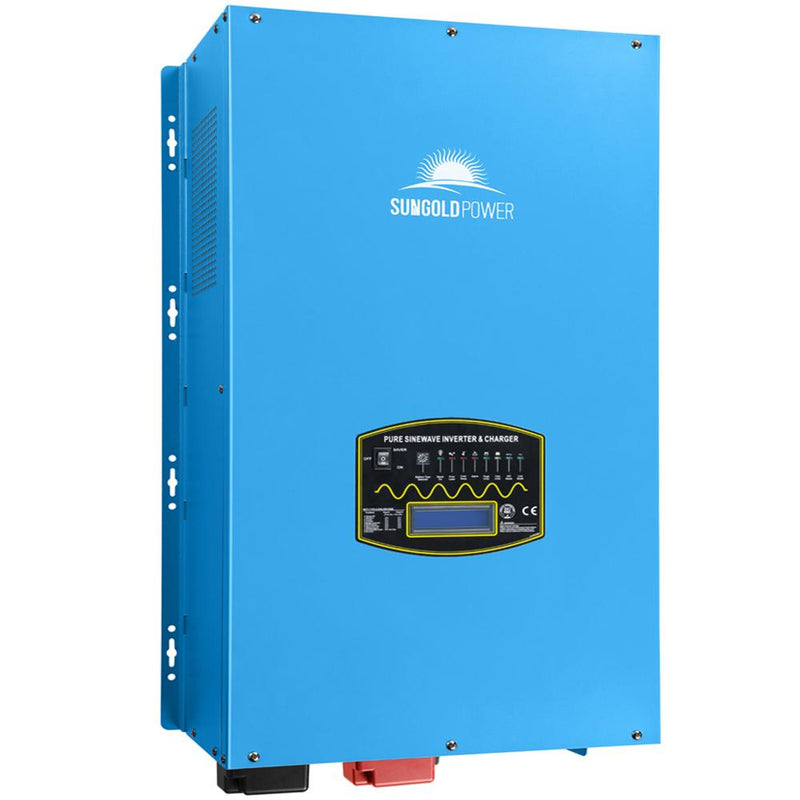

SunGold Power 15kW 48V Split Phase Solar Inverter Charger

SunGold Power Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU LFPV15K48V240VSP

Save 6% Save 6%
Original price $3,375.00
Original price $3,375.00 - Original price $3,375.00
Original price $3,375.00
Current price $3,175.00
$3,175.00 - $3,175.00
Current price $3,175.00

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

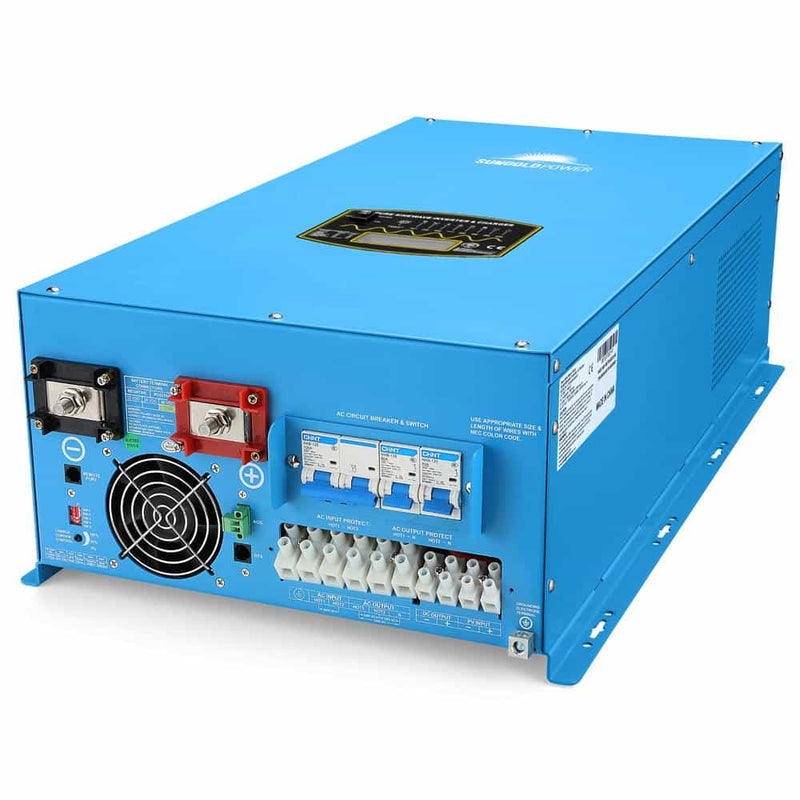

SunGold Power 15kW 48V Split Phase Solar Inverter Charger

Description

详情01--12kw.jpg__PID:0467fa83-8d16-49f0-ad0b-de678fd2fdcb
加变体.jpg__PID:c10467fa-838d-46b9-b02d-0bde678fd2fd
详情03.jpg__PID:4bd7ba37-08bc-48fd-9af7-207c30d77780
详情04.jpg__PID:f02d0bde-678f-42fd-8bd2-c11b44b65b75
详情02.jpg__PID:b9f02d0b-de67-4fd2-bdcb-d2c11b44b65b
详情05.jpg__PID:2d0bde67-8fd2-4dcb-92c1-1b44b65b75c3
详情06.jpg__PID:67fa838d-16b9-402d-8bde-678fd2fdcbd2
详情08.jpg__PID:fa838d16-b9f0-4d0b-9e67-8fd2fdcbd2c1

Product Specifications

SunGold Power 15kW 48V Split Phase Solar Inverter Product Specifications

Main Features Main Specifications DC Input Charger Solar Charger Controller Packaging
15KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V Continuous Output Power: 15.0KW Nominal Input Voltage: 48.0Vdc Output Voltage: Depends on battery type Solar Input Voltage Range: 60-145V(Max 4000W) 15000W 48V Split Phase Pure Sine Wave Solar Power Inverter
Auto Generator Start (AGS) Surge Rating (20s): 45.0KW Minimum Start Voltage: 40.0Vdc / 42.0Vdc Battery Initial Voltage for Start Up: 40-62.8V Rated Charge Current: 80A English Manual
Support Solar Panel with MPPT Function Output Waveform: Pure Sine Wave Low Battery Alarm: 42.0Vdc / 44.0Vdc Over Charge Protection Shutdown: 62.8V Over Charge Disconnection: 59.2V Remote Control

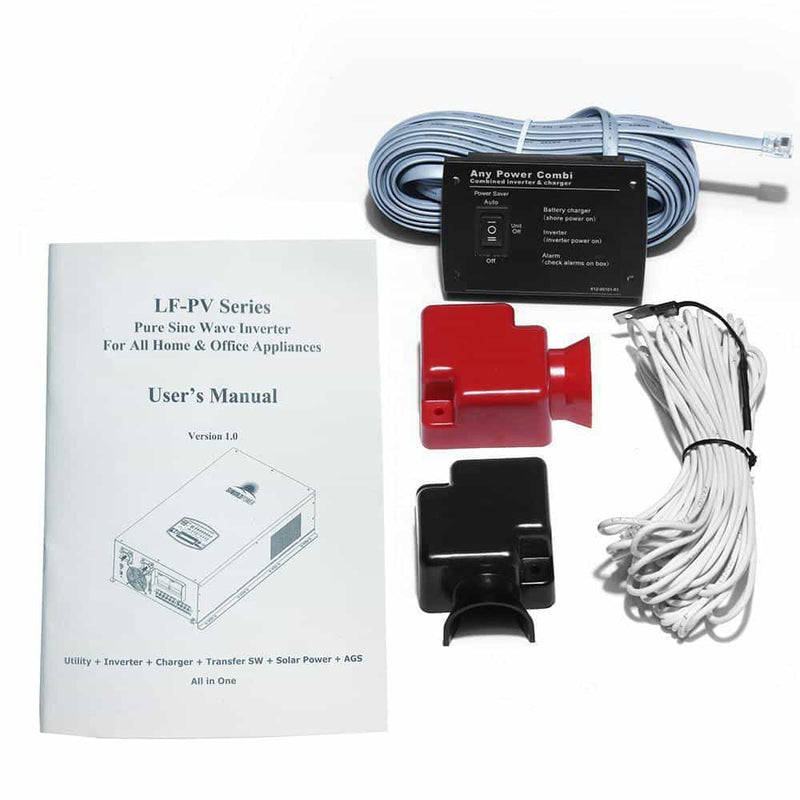

Include Battery Temperature Sensor (BTS) and Remote Control AC Output Voltage: 120V and 240V Low Battery Trip: 40.0Vdc / 42.0Vdc Charger Breaker: 100A Over Charge Recovery: 54.4V BTS Cable
8 kinds of battery voltage selection (lithium LiFePO4, gel, AGM and lead Acid) AC Input Voltage: 240V (not suitable for AC 120V input) High Voltage Alarm: 64.0Vdc Input Voltage Waveform: Sine wave (Grid or Generator) Over Discharge Disconnection: 43.2V Unit Weight: 176.6 LB
Compatible With All kind of Home & Office Appliances DC Battery Voltage: 48Vdc Low Battery Voltage Recover: 62.0Vdc AC input range: 184-253Vac/140-270Vac Over Discharge Reconnection: 49.6V Unit Size: 28.7x 16.5x 8 inch
Powerful Charge Rate Up to 100Amp, Selectable From 0%-100% Solar Charger Current: 80Amp Power Saver on Idle Consumption: 45W Nominal Input Frequency: 50Hz or 60Hz (Auto detect) Shipping Weight: 213 LB
Built-in transfer switch and battery charge, backup or off-grid power solutions AC Battery Charger: 100±5Amp Power Saver off Idle Power: 225W AC Battery Charger: 100±5Amp Shipping Size: 34.25x 21.3x 16.2 inch
AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration Output Frequency: 50Hz / 60Hz
4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger Typical Transfer Time: 10ms (Max)
8 ms Typical Transfer Time Between Utility & Battery, Ensure Power Continuity
15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator



Product Manual

LF-PV Series Pure Sine Wave Inverter User's Manual

Product Warranty

SunGold Power Product Warranty

WARRANTY PERIOD

The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.

LIMITED TO ORIGINAL CONSUMER BUYER

The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.

EXCLUSIONS

Sungoldpower's warranty does not apply to:

Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.

Attempted repair by anyone other than an authorized facility.

If any modified products received will be returned to you at your expense.

REPLACEMENTS

Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.

If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)

Product FAQs

SunGold Power 15kW 48V Split Phase Solar Inverter FAQs

1. How do you connect this to a home with the multiple phase system?
It only has dual phase output, 120V and 240V. It can't work with the multiple phase system

2. Does this unit work with lithium batteries? Is there an adjustable curve for charge discharge voltages?
This unit works with lithium battery, LiFePO4 in types is for lithium battery. In addition, the charge and discharge voltage can't be adjusted.

3. Can two units be connected together for 24 kW continuous?
No, the two units can not be connected together for 24kW continuous.
