SunGold Power 12kW 48V Split Phase Solar Inverter Charger

SunGold Power Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU LFPV12K48V240VSP
Save 7% Save 7%
Original price $2,799.00
Original price $2,799.00 - Original price $2,799.00
Original price $2,799.00
Current price $2,599.00
$2,599.00 - $2,599.00
Current price $2,599.00

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

SunGold Power 12kW 48V Split Phase Solar Inverter Charger

Description

详情01--12kw (1).jpg__PID:8ae4859b-ccea-4b59-8619-bbe501749f2a

详情03.jpg__PID:4bd7ba37-08bc-48fd-9af7-207c30d77780
详情04.jpg__PID:d7ba3708-bca8-4d1a-b720-7c30d7778002
详情05.jpg__PID:ba3708bc-a8fd-4af7-a07c-30d7778002c7
详情02.jpg__PID:764bd7ba-3708-4ca8-bd1a-f7207c30d777
详情08-拷贝.jpg__PID:8be24558-70f3-455d-9176-4bd7ba3708bc
详情06.jpg__PID:3708bca8-fd1a-4720-bc30-d7778002c72a

Product Specifications

SunGold Power 12kW 48V Split Phase Solar Inverter Charger Product Specifications


Category Specifications
Main Features 12KW Split Phase Pure Sine Inverter Charger DC 48V, AC 240V Input, AC Output 120V/240V
Auto Generator Start (AGS)
Supports Solar Panel with MPPT Function
Includes Battery Temperature Sensor (BTS) and Remote Control
8 kinds of battery voltage selection (Lithium LiFePO4, Gel, AGM, Lead Acid batteries)
Compatible with All Kinds of Home & Office Appliances
Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%
Built-in Transfer Switch and Battery Charge, Backup or Off-Grid Power Solutions
AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
4-Step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
8ms Typical Transfer Time Between Utility & Battery, Ensures Power Continuity
15s Delay Before Transfer When AC Recovers, Protection for Load When Used with Generator
Main Specifications Continuous Output Power: 12.0KW
Surge Rating (20s): 36.0KW
Output Waveform: Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage: 240V (Not suitable for AC 120V input)
DC Battery Voltage: 48Vdc
Solar Charger Current: 80Amp
AC Battery Charger: 120±5Amp
Output Frequency: 50Hz / 60Hz
Typical Transfer Time: 10ms (MAX)
DC Input Nominal Input Voltage: 48.0Vdc
Minimum Start Voltage: 40.0Vdc / 42.0Vdc
Low Battery Alarm: 42.0Vdc / 44.0Vdc
Low Battery Trip: 40.0Vdc / 42.0Vdc
High Voltage Alarm: 64.0Vdc
Low Battery Voltage Recovery: 62.0Vdc
Power Saver on Idle Consumption: 40W
Power Saver off Idle Power: 180W
Charger Output Voltage: Depends on Battery Type
Battery Initial Voltage for Start Up: 40-62.8V
Overcharge Protection Shutdown: 62.8V

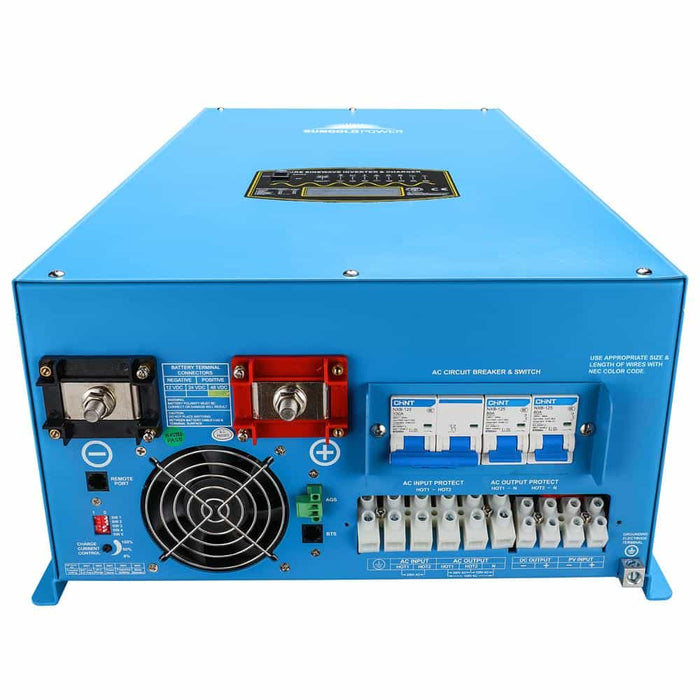

Charger Breaker: 80A
Input Voltage Waveform: Sine Wave (Grid or Generator)
AC Input Range: 184-253Vac / 140-270Vac
Nominal Input Frequency: 50Hz or 60Hz (Auto Detect)
Solar Charger Controller Solar Input Voltage Range: 60-145Vdc (Max 4000W)
Max PV Open Circuit Array Voltage: 145Vdc
Rated Charge Current: 80A
Overcharge Disconnection: 59.2V
Overcharge Recovery: 54.4V
Over Discharge Disconnection: 43.2V
Over Discharge Reconnection: 49.6V

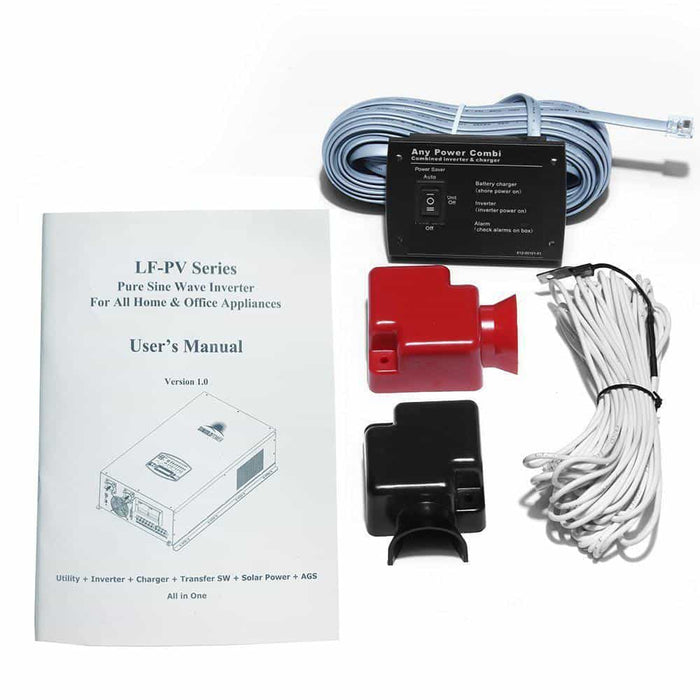

Packaging 12000W 48V Split Phase Pure Sine Wave Solar Power Inverter
English Manual
Remote Control
BTS Cable
Unit Weight: 160 LB
Unit Size: 27.6 x 16.5 x 8 inches
Shipping Weight: 185 LB
Shipping Size: 29.2 x 23 x 16.5 inches

Product Manual

LF-PV Series Pure Sine Wave Inverter User's Manual

Product Warranty

SunGold Power Product Warranty

WARRANTY PERIOD

The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.

Our products come with 30 days return policy. Within the return period, Sungoldpower will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra product you did not order. For all other reasons, customers are responsible for shipping fees.

LIMITED TO ORIGINAL CONSUMER BUYER

The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.

EXCLUSIONS

Sungoldpower's warranty does not apply to:

Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.

Attempted repair by anyone other than an authorized facility.

If any modified products received will be returned to you at your expense.

REPLACEMENTS

Sungoldpower will replace any Sungoldpower product that fails to operate( within 30 days). A replacement product assumes the remaining warranty of the original product.

If you want to replace one of the damaged parts, please contact us to arrange to send the replacement part. (under warranty)

Product FAQs

SunGold Power 12kW 48V Split Phase Solar Inverter FAQs

1. How do you connect this to a home with the multiple phase system?
It only has dual phase output, 120V and 240V, it can't work with the multiple phase system, thanks.

2. This inverter can use 240v, and 120v at the same time?
If you need have 240V & 120V load at the same time, HOT1 will have 2cables connected, but please note that 120V load power cannot exceed 50% of inverters real power, it is only 6000W if 120V output.

3. What is power consumption of the inverter with no load?
The  power saver on idle consumption is 40W and power saver off idle power is 180W.
