Rich Solar 12V 400AH 5.1kWh Lithium Battery Bank

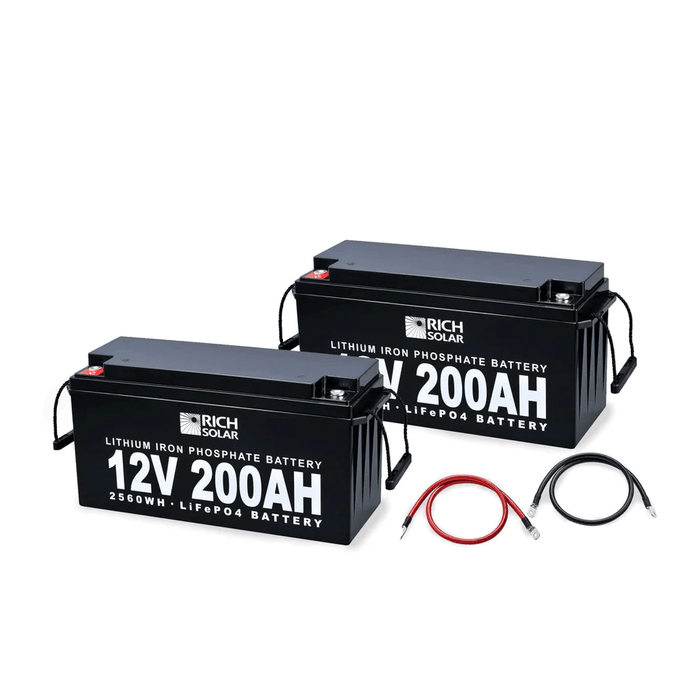

This 400AH 12V 5.1kWh Lithium Battery Bank comes with:
RICH SOLAR 12V lithium battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint. Easily uses the same space as your existing 12V battery bank and replaces lead acid, AGM or Gel battery applications in RVs, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries.
Features:
- Extremely high number of charge/discharge cycles
- > 10 Year lifespan with proper maintenance
- Built-in smart battery management system
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Lifetime customer support
- Over charging or discharging protection.
- Over current & short circuit protection.
- High & low temperature disconnects
- Charge Voltage: 14.4V
- Max Charge Current: 100 A
- Max Discharge Current: 200 A
- Battery Dimensions: 19.0″L x 6.7″W x 9.5″H
- Weight: 42.5 lb
BMS Safety Protection
- Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
- Convenient removable carry handle
- Lightweight
- Short circuit protected
- Physical damage to battery case will not cause fire
- Excessive thermal exposure will not cause a fire
- Able to withstand over-charge/over-discharge without damage to the battery
- Sophisticated Battery Management System (BMS)
Product Specifications
Rich Solar 12V 400AH 5.1kWh Lithium Battery Bank Product Specifications
Electrical Specifications
- Nominal Voltage: 12.8V
- Nominal Capacity(at .5C, 77°F): 200Ah
- Minimum Capacity (at .5C, 77°F): 190Ah
- Expected Cycle Life: >5000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD
Operating Specifications
- Charge Method: Smart charger, constant current, constant voltage
- Operating Voltage: 12.8 V
- Capacity: 200 Ah
- Energy: 2560 Watt Hours
- Charge Voltage Range (Max 14.6V): 14.4 -14.6V
- Continuous Charge Current: 100A
- Continuous Discharge Current: 200A
- Over Voltage Shutdown: 15.6 +/-0.2V
- Discharge Cut-off Voltage: 8V =/- 0.5V
- Self Discharge (stored at 50% SOC): < 3%/month
- Waterproof: IP65
Temperature Performance
- Charge Temperature: 32° F to 140° F
- Discharge Temperature: -4° F to 140° F
- Storage Temperature: -4° F to 140° F
- BMS High Temperature Cut-off: 149°F
- BMS Low Temperature Cut-off: 32°F
Physical Specifications
- Battery Dimensions: 19.0″L x 6.7″W x 9.5″H
- Weight: 42.5 lb
- Group Size: 62
- Battery post size: 5/16″
BMS Operation
Over Charge Protection
- Over charge detection voltage: 3.9 +/- 0.05V
- Over charge detection delay time: 0.96 – 1.4s
- Over charge release voltage: 3.80 +/-0.05V
- Maximum charge voltage: 3.65 +/-0.05V
Over Discharge Protection
- Over discharge detection voltage: 2.0V +/- 0.05V
- Over discharge detection delay time: 115-173ms
- Over discharge release voltage: 2.3V +/- 0.10V
- Over Current Protection Over current detection delay time: 9 +/- 2ms
- Over current release condition: Cut load
Polarity Reverse Protection: Yes
Short Circuit Protection: Yes
Warranty
3 Year Manufacturer Defect
Product Warranty
Rich Solar Product Warranty
The warranty period for RICH SOLAR's products:
1) Rigid Solar Panels: 25-year power output warranty
2) Portable Briefcase Solar Panels: 5 year power output warranty
3) Portable Power Stations: 2 years
4) Solar Charge Controllers: 2 Years (MPPT) | 6 Months (PWM)
5) Inverters: 2 years
6) Flexible Solar Panel: 1 year workmanship and materials
7) CIGS Flexible Solar Panel: 1 year workmanship and materials
8) LiFePO4 Lithium Battery: 3 year manufacturer defect
The warranty period for all other RICH SOLAR products and components is one (1) year from the date of original purchase by the original consumer. A sales receipt from the original consumer purchase, or other reasonable documentary proof, is required in order to establish the start of the warranty period. If you completed the online RICH SOLAR Product Registration Form within thirty (30) days after purchasing your product, that registration can also establish the start date of the warranty period (but warranty coverage is not conditioned upon such registration). REMEDY. RICH SOLAR will, at its option, (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product. A replacement product/part assumes the remaining warranty of the original product or ninety (90) days from the date of replacement or repair, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes RICH SOLAR’s property.
LIMITED TO ORIGINAL CONSUMER BUYER. This warranty is not transferable to any subsequent owner of a RICH SOLAR product.
EXCLUSIONS AND LIMITATIONS. This Limited Warranty applies only to hardware products manufactured by or for RICH SOLAR that can be identified by the "RICH SOLAR" trademark, trade name, or logo affixed to them. The Limited Warranty does not apply to any non-RICH SOLAR products, even if packaged or sold with RICH SOLAR products. Non-RICH SOLAR manufacturers, or suppliers may provide their own warranties. This warranty does not apply to: (i) to damage caused by accident, abuse, misuse, misapplication, or non-RICH SOLAR products; (ii) to damage caused by service performed by anyone other than RICH SOLAR; (iii) to a product or a part that has been modified without the written permission of RICH SOLAR; (iv) to a product where any RICH SOLAR serial number has been removed or defaced, or (v) to any product purchased through an online auction house. This limited warranty does not apply to any battery cell or product containing a battery cell unless the battery cell has been fully charged by you within seven (7) days after your purchase of the product and at least once every 6 months thereafter.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. RICH SOLAR SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF RICH SOLAR CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. No RICH SOLAR reseller, agent, or employee is authorized to make any modification, extension, or addition to this warranty. IN NO EVENT WILL RICH SOLAR BE LIABLE FOR ANY DIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM ANY USE OR MALFUNCTION OF ANY RICH SOLAR PRODUCT, OR FROM ANY BREACH OF WARRANTY, INCLUDING DAMAGE TO OTHER DEVICES. IN NO EVENT WILL RICH SOLAR'S LIABILITY FOR ANY CLAIM, WHETHER IN CONTRACT, WARRANTY, TORT (INCLUDING NEGLIGENCE AND STRICT LIABILITY), OR UNDER ANY OTHER THEORY OF LIABILITY, EXCEED THE AMOUNT PAID BY YOU FOR THE RICH SOLAR PRODUCT. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
OBTAINING WARRANTY SERVICE. To obtain warranty service, you must contact our customer service team via telephone at 1-800-831-9889, or via email at sales@richsolar.com. If our customer service team determines that this is a warranty matter, they will give you a Return Material Authorization ("RMA") number. You must properly package the product, clearly marking the RMA number on the package and including proof of your purchase date with the product. You must then send the product by mail or courier, with shipping costs paid by you, to RICH SOLAR at 5550 Jurupa St Ontario, CA 91761. We will process your return and send your repaired or replacement product to you at our expense for product being shipped to locations in North America. For product purchased or being shipped outside of North America, please contact the local distributor from whom you purchased the product, or email sales@richsolar.com to obtain further distributor information.
Product FAQs
Rich Solar FAQs
How does solar work with my RV?
Solar power allows you to take your RV off the grid while still using your refrigerator,
lights and other appliances for extended periods. Solar panels convert the sun’s energy
into direct current (DC) electricity, and this charges your RV’s batteries, storing the
electricity. A power inverter converts this DC power to AC (alternating current) in order
to run many of your RV appliances.
What is the difference between DC and AC power?
DC (direct current) power is drawn directly from the battery and will run several types of
RV appliances, like lights and water pumps. AC power (alternating current), is what is
used in your home. An inverter in your RV converts your DC battery power into AC for
AC-powered devices such as TVs, hair dryers or coffee makers.
Can I run my TV, refrigerator, or water pump on solar?
Yes. Many RV refrigerators can run on DC or AC power. You can also use solar to
power your water pump. Most TVs run on AC power, requiring an inverter.
What is the difference between a solar kit and a solar system?
Our solar kits provide the basics you need for charging your RV battery — they contain
a solar panel, solar charge controller, and cables. A solar system includes more
components (such as an inverter, transfer switch, battery charger, and fuse block) so
you can run AC appliances and electronics, charge your battery, and connect both
shore and solar power to your RV’s breaker panel.
How long can I run my appliances or electronics on solar?
That depends on the number of appliances, how much power they consume, and what
size of battery bank you have installed.
What is the difference between amps, watts and volts?
Think of your power system as a gas station. Amps are like gallons of gas that fill your
RV’s battery, and volts are like the pressure at the gas pump. You need a certain
voltage ‘pressure’ to fill your batteries (the gas tank). – Watts are simply the amps
multiplied by the volts.
Why do I need a solar controller/regulator?
The solar charge controller is required to prevents your solar panels from overcharging
your RV batteries.
Do I need to install an inverter if I only want to charge my boat or RV battery with
a solar panel?
No, you only require an inverter if you want to convert DC battery power to AC
household power in order to run devices like TVs, tool chargers, and microwaves.
What is the difference between a pure sine wave and a modified sine wave
inverter?
All AC devices can run with pure sine wave power. Modified sine wave power replicates
AC power, but not perfectly. While modified sine wave inverters are much less
expensive, many devices run poorly when it is used — for example, portable tool
chargers, high-end TVs and stereos, CPAP machines, and microwaves.
Will solar work in the winter in my state or province?
Will the sun be shining? Solar will work any time there is sunlight is shining on the
panel. If there is a snow buildup on the panel, the system will not work.
What voltage are your panels? Will they work with my 12V, 24V or 48V system?
We have nominal 12V and 24V panels. These panels actually produce 20+V and 30+V,
respectively. Whether it will work with a 12V, 24V, and 48V will depend on the controller
that you use. All the controllers we offer will work with 12/24V systems. The MidNite
Classic controllers will work with 48V systems.
