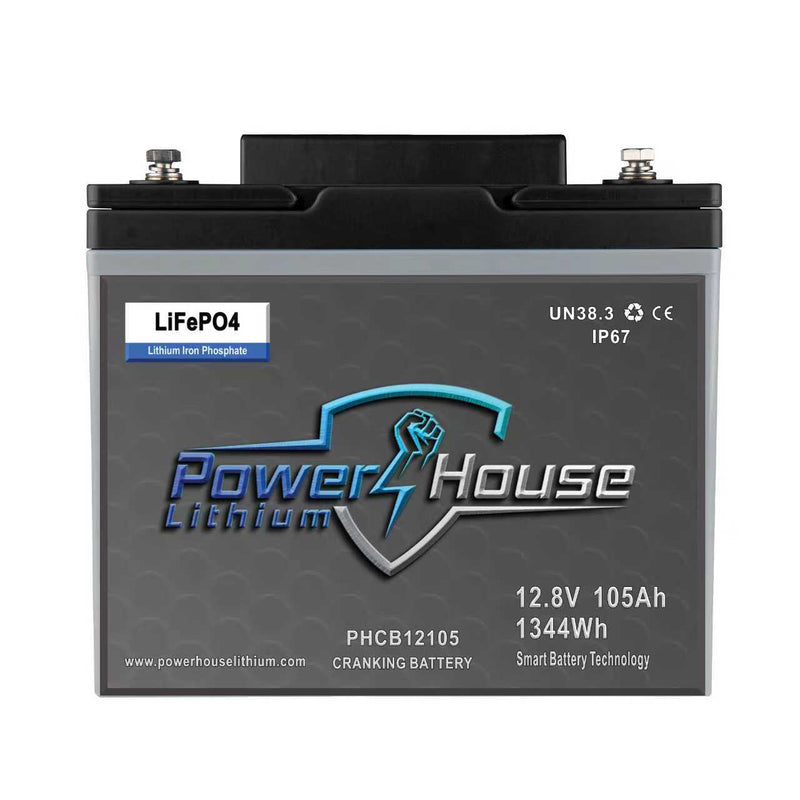

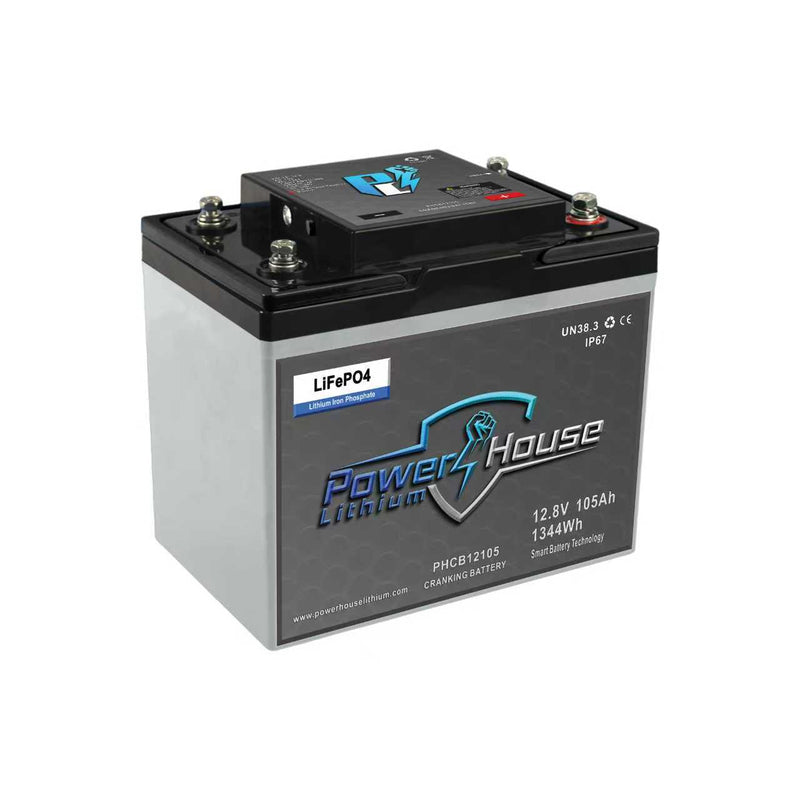

PowerHouse Lithium 12V 105Ah Cranking Battery with Emergency Start - Dual Purpose
Description
The primary role of a cranking battery is to start the engine. It provides the necessary power needed to turn the starter motor, which then cranks the engine. This initial jolt of energy is crucial, especially in colder climates where the engine oil thickens and requires more effort to start. With a 12V 105Ah deep-cycle battery from PowerHouse Lithium, youāll have the charge you need to keep your adventures going.Ā

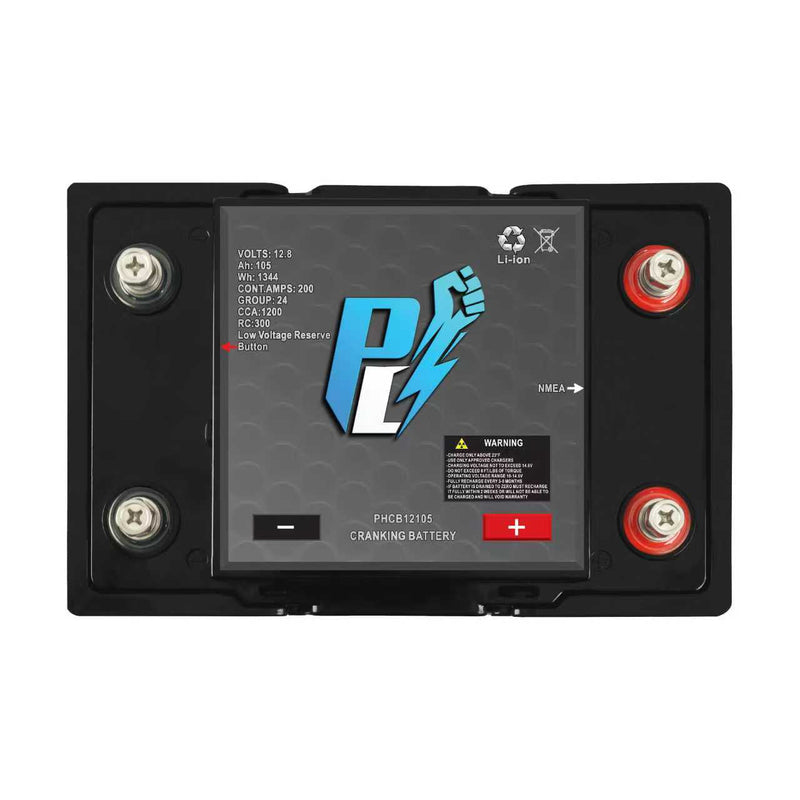

First in the industry emergency jump start button! If your cranking battery ever dies on the water, simply press and hold the emergency jump start button that is easily accessible on the top of the battery for 3 seconds to activate the battery reserve! Never be stuck on the water again with a dead battery!
Industry leading Smart Battery Technology - Blue Tooth enabled will constantly monitor your battery and make changes to give you optimal performance all day. Keep up with this from the convenience of your phone.
Key Features & Innovations
Ā * True Dual-Purpose Performance: Delivering massive Cold Cranking Amps (CCA) to fire up the most demanding outboards, while providing 105AH of deep-cycle capacity to keep your graphs, pumps, and accessories running all day without voltage drop.
Ā * Built-In Emergency Start Button: Peace of mind is standard. If you ever over-discharge your battery, the onboard emergency reserve can be activated with a single press, providing the jump-start you need to get back to the ramp safely.
BMS equipped with all voltage protections, and temperature protections.
The 12V 105Ah Dual Purpose cranking/deep cycle battery was engineered to keep you out on the water longer and ensure you still have enough juice to fire your boat up to get home!
Requires Group 24 Tray
Product Specifications
PowerHouse Lithium 12V 105Ah Cranking Battery with Emergency Start - Dual Purpose Product Specifications
| Category |
Specification |
| Warranty |
5 Years |
| Battery Management System |
Yes |
| Bluetooth |
Yes |
| Dimensions (L x W x H, inches) |
13 x 6.77 x 8.46 |
| Weight |
27.4 lb |
| Case Size |
24 |
| Terminal Bolt Size |
M8 |
| Cell Type |
Cylindrical |
| Watt Hours |
1,260 Wh |
| Reserve Capacity |
105Ah |
| Nominal Voltage |
12.8V |
| Voltage Range |
10V to 14.6V |
| Maximum Charge Current |
200A |
| Continuous Discharge |
200A |
| Peak Discharge (CCA) |
1200 CCA |
| Peak Discharge (50ms) |
1200 CCA @ 50ms |
| Peak Discharge (1 sec) |
900 CCA @ 1 sec |
| Peak Discharge (8 sec) |
800 CCA @ 8 sec |
| Peak Discharge (30 sec) |
350 CCA @ 30 sec |
| Pack Charge Cutoff |
14.6V |
| Pack Discharge Cutoff |
10V |
| Reserve Capacity (RC) |
300 minutes |
| IP Rating |
IP67 Waterproof |
| Charge Temperature Range |
23Ā°F to 140Ā°F |
| Discharge Temperature Range |
-4Ā°F to 149Ā°F |
Amp Draw Specs
12V versus 16V efficiency.
Now run your equipment 20% longer and on a separate clean power system, and receive better clarity and signal returns with 16V systems. Switch with no effects on warranty issues. as all units listed operate at above 16 volts. When setting up a system add the the total number of amps needed and divide by the AH of the battery rating. Remember to addĀ 20% more AH rating then needed for a 10 hour day or longer so that same battery will be big enough for load after 4 years of service.Ā
Note less amp draw from units on 16V mean less heat for units to absorb making units run cooler.
All Battery Models & Trays
VEX
12V 6Ah
12V 8Ah
12V 12Ah
Shuttle
12V 30Ah
16V 18Ah
GROUP 20
12V 60Ah
16V 48Ah
GROUP 24
16V 60Ah
GROUP 31
12V 100Ah
12V 105Ah
12V 110Ah
16V 80Ah
24V 60Ah
36V 40Ah
GROUP 5D
16V 100Ah
16V 140Ah
36V 60Ah
Product Manual
Product Warranty
PowerHouse Lithium Warranty
Important Information: Battery Service and Inspection
Ā Please be aware that if your battery needs to be sent for inspection, you may be responsible for a repair and shipping fee of up to $150. This fee covers both the repair and the shipment of the product. These costs apply if the issue is a result of user error or misuse, and therefore not covered under our standard warranty.
Examples of issues caused by user error or misuse include:
Ā * Dead battery: This can be a result of improper charging, not charging a fully drained battery, or loss of Bluetooth connection in the app.
Ā * Physical damage: Examples include over-tightening the battery strap, loose connections causing the battery terminals to melt, or over-tightening the terminal bolts.
Ā * Short cycle counts.
If the inspection determines the issue is due to a manufacturing defect, the standard warranty process will be followed, and you will not be charged.
WARRANTY REGISTRATION
We recommend you protect your investment andĀ register your warranty. If your battery is not registered within 90 days of purchase, warranty will begin at manufacture date of battery.Ā Proof of ownership is required.Ā Warranties are not transferrable.Ā
WARRANTY FEES FOR DEEP CYCLE 40AH +(Non-Cranking) Ā BATTERIES
CRANKING AND 48V BATTERIES CARRY A 5 YEAR FREE REPLACEMENT WARRANTY*
- 15 years total**
- 10 years non-prorated**Ā
- Replace defective battery forĀ free any time inside of 60 months.
- Repair battery for free from year 5 through year 10
- Customer will have option for expedited replacement battery year 5 through 10 with immediate battery replacement for 30% off of MSRP. This will forego the 2 to 6 week turnaround time on battery repair. Plus give you new battery with new 15 year warranty.
- All warrantied items will be subject to the shipping cost from PowerHouse Lithium of $60. This fee is waived for the first year only no exceptions.
- Warrantied replacement cost is based on current MSRP on all batteries over the 5 year period.Ā
Replacement cost of batteries over 10 years old that have a 15 year warranty will be sold at 30% off MSRP, for customer satisfaction of being a loyal customer to the brand.
* Batteries with more than 2,000 cycles are considered at the end of normal use. For those batteries, being a Powerhouse customer. We will offer a discounted price of 10% off retail for a new battery.Ā
Example of how long 1000, 1500 and 2000 cycles would be.
1. You fish 2 times a week every week and you need to charge every time (most cases you will not) but just for example purposes. 2 x 52 = 104 cycles per year divided into 1000 cycles is 9.62 years.Ā
2. Same setup but now 1500 cycles
104 cycles per year divided into 1500 cycles is 14.42 yearsĀ
3. Same setup but now 2000 cycles (the average life for a LiFePo4 Battery)
104 cycles per year divided into 2000 cycles is 19.23 yearsĀ
Ā Don't be mislead about companies that advertise their batteries that do 5000 cycles as all LifePO4 batteries with Grade A cells are the same. Sure, our batteries will do 5000 cycles as well but what they fail to tell you is that is with only 10% usage in the battery each cycle.Ā
The fact about Lithium is that it only has so much total energy in it's lifetime that it can be transferred back and forth so the deeper the charge the less cycles it will go, and the quick charge of 20% or less it will go a lot longer. The end result no matter how you want to charge your batteries the total amount of energy will be the same at the end of the batteries life.Ā
WARRANTY FOR CRANKING BATTERIES AND 48V BATTERIES
- 5 year non-prorated
- Free repair or replacement any time inside of 60 months from purchase date. (Excluding exclusions)
- All warrantied items will be subject to the cost to ship from PowerHouse to your location.Ā
- Warrantied price is based on current MSRP
- Year 5-10, replacement fee of 25% off MSRP will be given.Ā
WARRANTY FOR DEEP CYCLE BATTERIES UP TO 30AH
- 3 years total
- Free repair or replacement any time inside of 24 months from purchase date. (Excluding exclusions)
- 25% discount from year 2 to year 3
- All warrantied items will be subject to the cost to ship from PowerHouse to your location.Ā
- Warrantied price is based on current MSRP
Ā CHARGER AND EXTRA COMPONENTS WARRANTY
Chargers, wiring kits, and all components are subject to a 1 year manufacturers defect warranty.
NON-TRANSFERABLE
This Limited Warranty is to the original purchaser of the Product and is not transferable to any other person or entity. .
WARRANTY EXCLUSIONS
The Manufacturer has no obligation under this Limited Warranty for Product subjected to the following conditions (including but not limited to):Ā
- Water damage, impact, or collision
- Physical damage to battery case or mishandling of the product
- Product that has been opened, modified, or tampered with
- Tampering or removal of manufacture date codes
- Product that was used for applications other than which it was designed and intended for by the PowerHouse over the rated Continuous amp rating
- Warranty only eligible to United States residentsĀ
This Limited Warranty does not cover a Product that has reached its normal end of life (2000 cycles)Ā due to usage which may occur prior to the Warranty Period. A battery can deliver only a specific amount of Energy over its life which will occur over different periods of time depending on the use. The Manufacture reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.
SUBMITTING A WARRANTY CLAIM
To submit a warranty claim, please refer to our warranty application. The Product may be required to be shipped back to PowerHouse for further inspection.
Please Note:Ā When selecting to warranty a battery, providing the Serial Number of the battery is key as not to delay the warranty process.
Where will you find the Battery Serial Number...
On the side of your battery, you will find these two stickers. You can also find your Battery's Serial Number in the PHL App.Ā (See Pic Below)
Return Policy
- Ā Returns are accepted within the first 30 days based on the following:
- All returns are subject to a 15% restocking fee based on current MSRP, plus all shipping costs
- Return product in original packaging with return number enclosed inside of the box
- Contact PHL for RMA number.
