MRCOOL® E Star DIY 4th Gen 24k BTU 208-230V/60Hz Ductless Mini-Split Heat Pump Complete System

Description

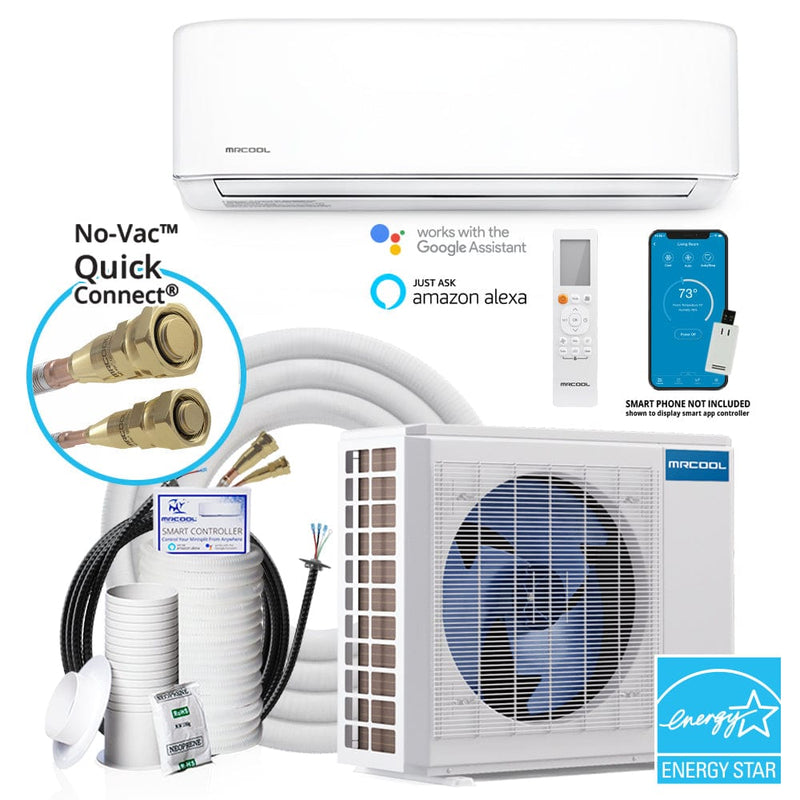

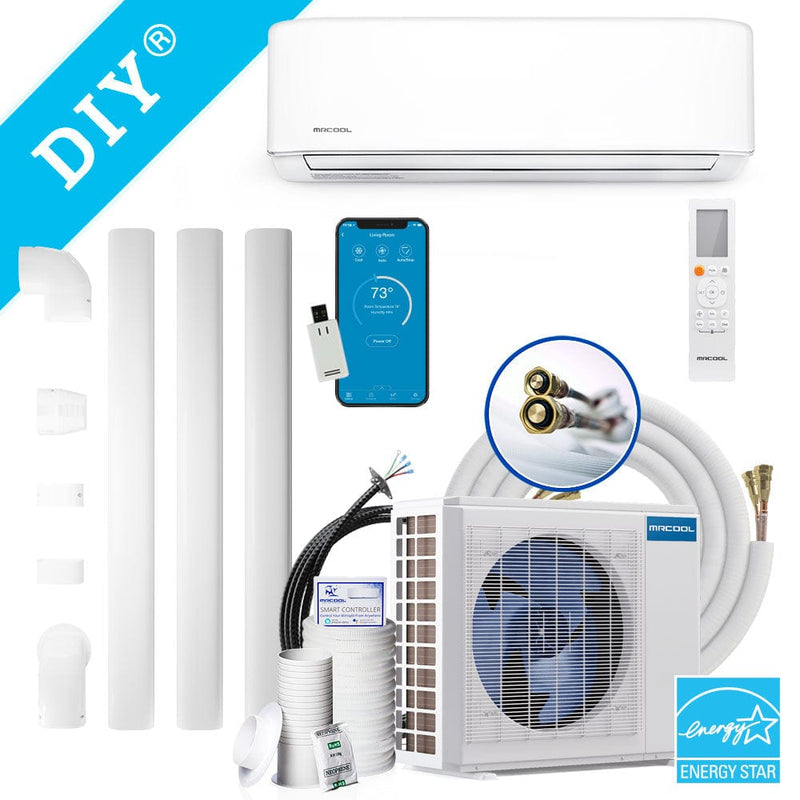

The MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.

  • Up to 20.5 SEER2
  • Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty







Product Specifications

MRCOOL® E Star DIY 4th Gen 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz Product Specifications

SEER

20.5

SEER2

20.5

EER

12.5

EER2

12.5

COP 47

3.15

HSPF

hspf4/hspf5 : 10.5/9

HSPF2

hspf2-4/hspf2-5 : 9.2/7.1

CFM

605.88/505.88/364.71

TONNAGE

2

COOLING CAPACITY

23000BTU

HEATING CAPACITY

25000 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MAX FUSE BREAKER

35 A

MIN CIRCUIT AMPACITY

22 A

COLOR

White

COLOR FAMILY

White

RATED LOAD

0.45 A

MAX COVERAGE AREA

Up to 1000 sqft

ZONE CAPACITY

1

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME

81.13 oz

DECIBEL RATING

48.5/43.5/33

DECIBEL RATING LOW

33 dBA

DECIBEL RATING HIGH

48.5 dBA

OSCILLATION

4-W

INVERTER

Yes

MIN AMBIENT COOL

-13F - 122F

MIN AMBIENT HEAT

-13F - 75F

LINE SET LENGTH

25ft

MAX LINESET LENGTH

75 ft

LIQUID LINE SIZE

3/8 in

SUCTION LINE SIZE

5/8 in

COMPRESSOR MOTOR TYPE

Twin-Rotary

CONDENSER FAN MOTOR RPM

850/750/700

BLOWER MOTOR RPM

1200/1000/700

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

UL LISTED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

CONDENSER DEPTH

16.14 in

CONDENSER HEIGHT

31.89 in

CONDENSER WIDTH

37.24 in

CONDENSER WEIGHT

125.22 lbs

AIR HANDLER DEPTH

8.90 in

AIR HANDLER HEIGHT

13.19 in

AIR HANDLER WIDTH

42.52 in

AIR HANDLER WEIGHT

35.27 lbs

Product Manuals

Install Manual

Owner Manual

Remote Manual

Technical Manual

Service Manual

AHRI CERTS

Energy Guide Certs

Product Warranty

Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.

Q3 I have not received my free SWAG item yet, has it been shipped?

Answer: Orders typically take 4 to 6 weeks to process and ship. If you have not received your Swag order within 8 weeks – please, contact us via email at swag@mrcool.com
