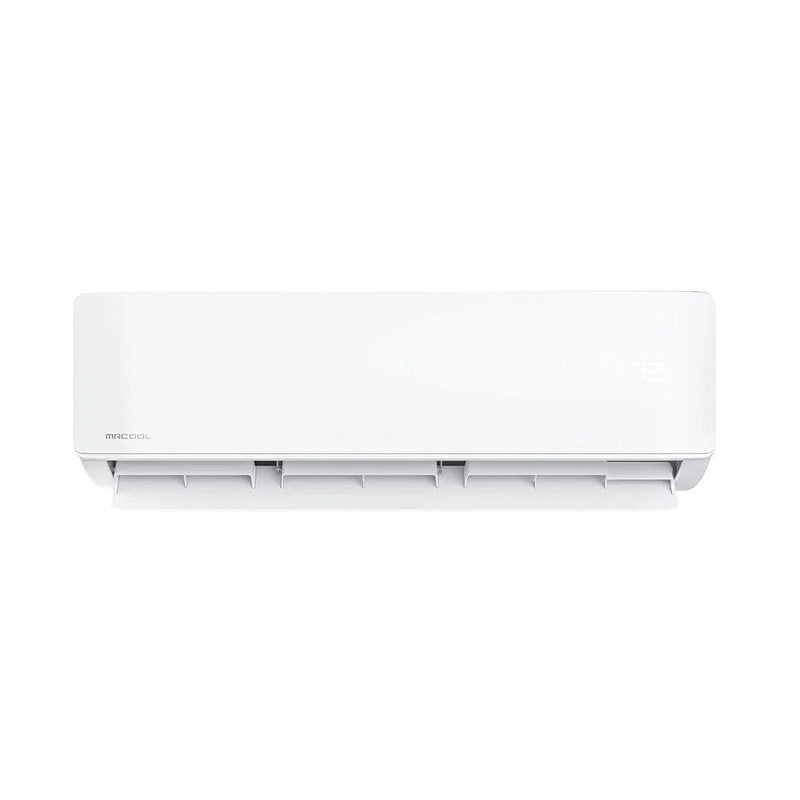

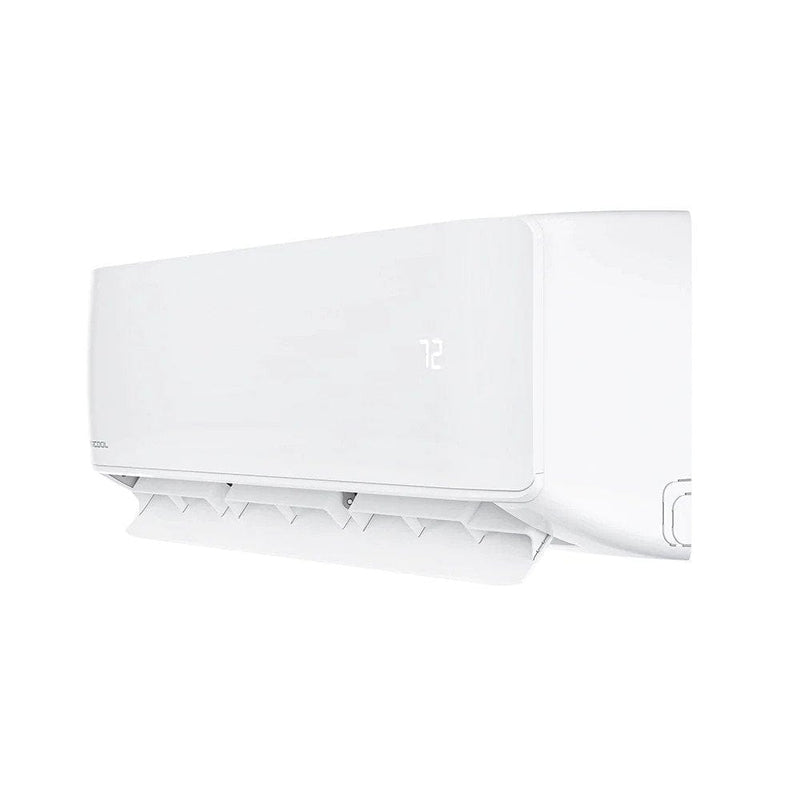

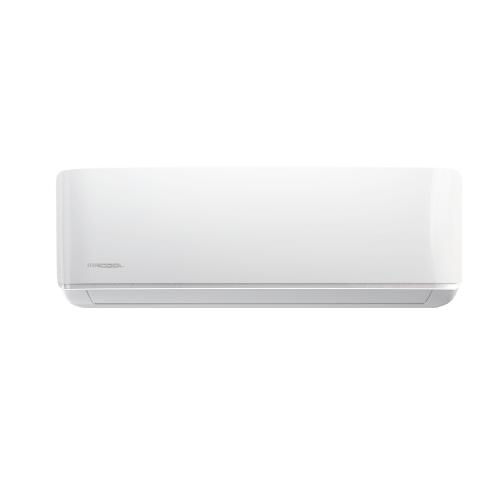

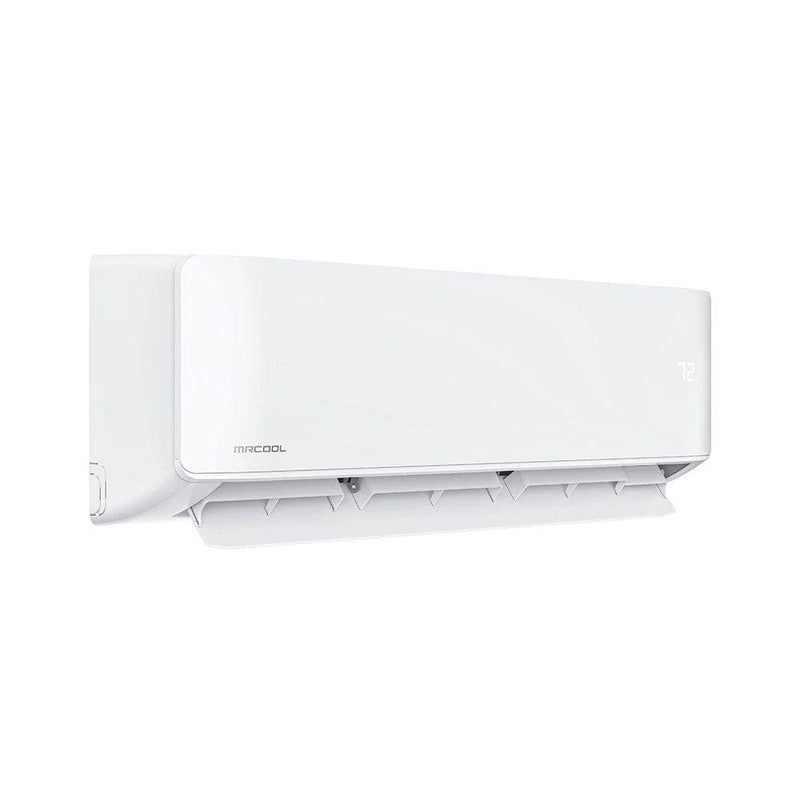

MRCOOL® E Star DIY 4th Gen 18k BTU 208-230V/60Hz Ductless Mini-Split Air Handler

by MRCOOL
SKU DIY-18-HP-WMAH-230C25
Original price $724.00 - Original price $724.00
Original price
$724.00
$724.00 - $724.00
Current price $724.00
Availability:
in stock, ready to be shipped

Get it between -

Price Match Policy

Price Match

Here at OffGrid Living Solutions, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living Solutions, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living Solutions. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

MRCOOL® E Star DIY 4th Gen 18k BTU Ductless Mini-Split Air Handler 208-230V/60Hz

Description

This product only includes an Air Handler (Indoor Unit).

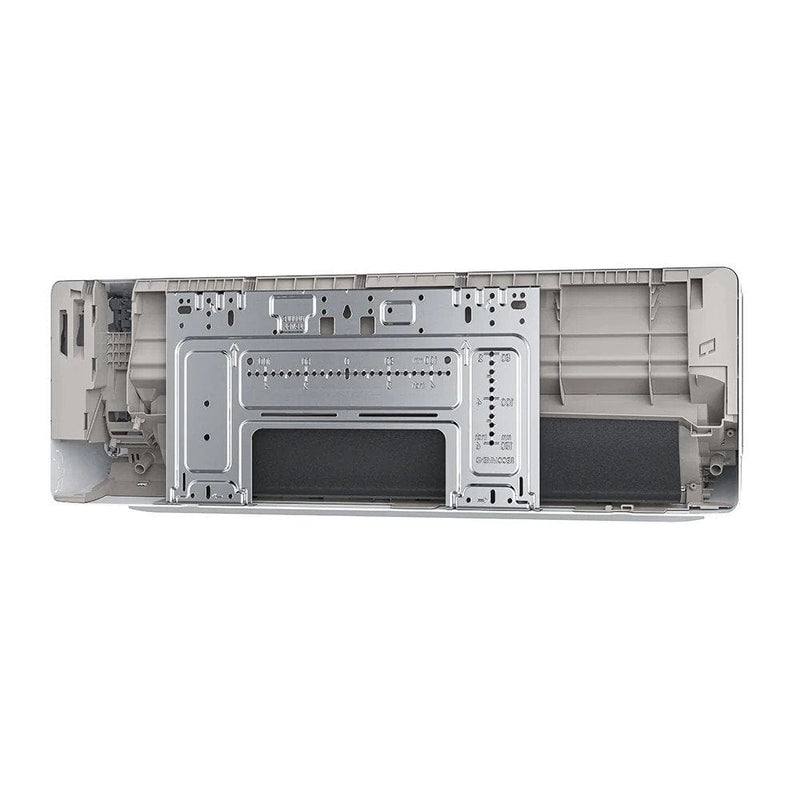

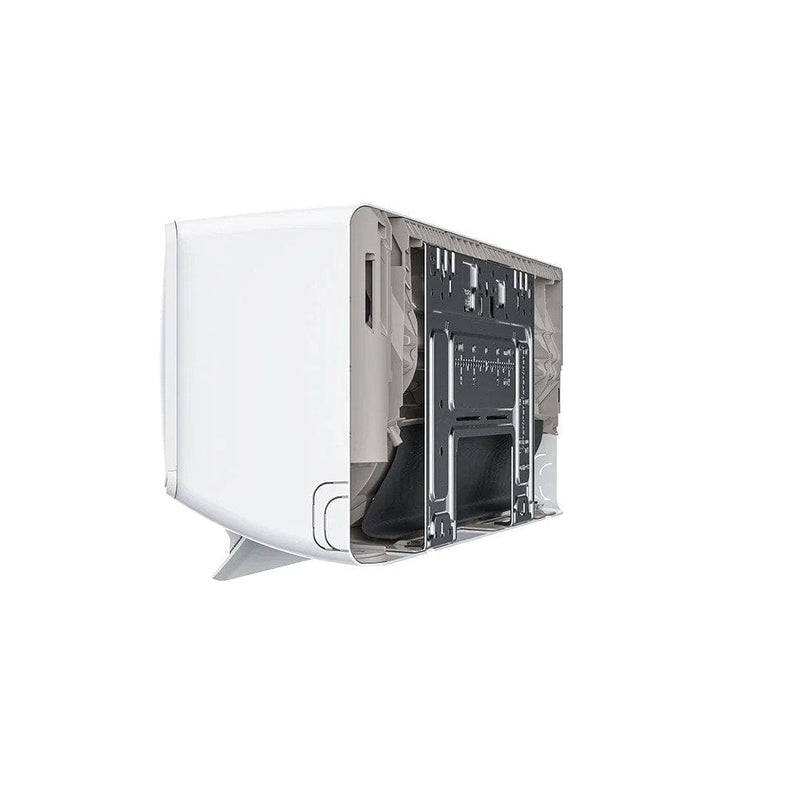

The MRCOOL® 4th Generation DIY 18K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. When part of a MRCOOL® DIY system, it can reach an effective 22 SEER efficiency rating and deliver that performance to an area up to 750 sq. ft. This air handler is also very versatile because of its many different operating modes, these include, COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. It also has the ability to be controlled from anywhere using an Apple or Android smartphone with our convenient Smart HVAC app. This air handler is very compact and relatively light, so it can easily be mounted to most interior walls using the included mounting plate. The ease of installation does not stop there, as it is designed to be used along with the MrCool Pre-Charged Quick Connect Line Set. This allows the installer to easily connect the refrigerant piping, which is precharged with the correct amount of R-410A refrigerant, with the use of simple hand tools. This also means the system will not require any vacuuming once the line set is connected. The MrCool DIY 18K BTU Ductless Wall Mounted Air Handler has the performance to handle your home comfort needs.

  • SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

Product Specifications

MRCOOL® E Star DIY 4th Gen 18k BTU Ductless Mini-Split Air Handler 208-230V/60Hz Product Specifications

COOLING CAPACITY

18000 BTU

HEATING CAPACITY

18000 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MOUNT TYPE

Wall

COLOR

White

COLOR FAMILY

White

MAX COVERAGE AREA

Up to 750 sqft

REFRIGERANT TYPE

R-410A

DECIBEL RATING

44.5/37/31

DECIBEL RATING LOW

31 dBA

DECIBEL RATING HIGH

44.5 dBA

INVERTER

Yes

MAX LINESET LENGTH

98.42 ft

LIQUID LINE SIZE

1/4 in

SUCTION LINE SIZE

1/2 in

BLOWER MOTOR RPM

1120/950/700

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET DEPTH

8.90 in

NET HEIGHT

13.19 in

NET WIDTH

42.52 in

NET WEIGHT

34.61 lbs

GROSS DEPTH

19.57 in

GROSS HEIGHT

17.32 in

GROSS WIDTH

49.09 in

GROSS WEIGHT

56 lbs

Product Manuals

Install Manual

Remote Manual

Service Manual

Product Warranty

Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.

Q3 I have not received my free SWAG item yet, has it been shipped?

Answer: Orders typically take 4 to 6 weeks to process and ship. If you have not received your Swag order within 8 weeks – please, contact us via email at swag@mrcool.com
