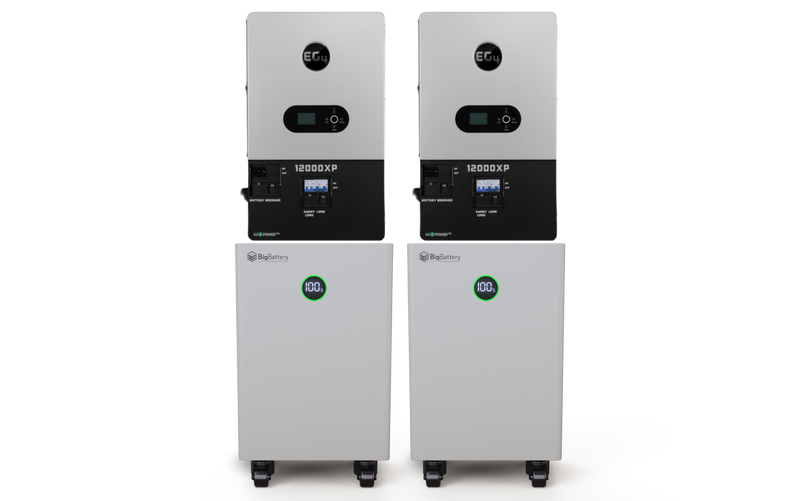

EG4 & BigBattery Hybrid Power Kit | 24kW 120/240V Output 48VDC Inverter - 30kWh System Bundle | 2 x EG4 12000XP Inverter + 2 x BigBattery NEXUS

EG4 Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU K0160
Original price $11,430.00 - Original price $11,430.00
Original price
$11,430.00
$11,430.00 - $11,430.00
Current price $11,430.00
Availability:
in stock, ready to be shipped
Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer youĀ the bestĀ prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note,Ā this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than oursĀ before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

We offer a 30 day return for this product from date of receipt. All returns must be pre-approved and issued an Return Merchandise Authorization (RMA) #. The return shipping fees are the responsibility of the customer. Returns are subject to a restocking fee. Returns are only allowed if the product was unused, original-condition items, or not installed.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

EG4 & BigBattery Hybrid Power Kit | 12kW 120/240V Output 48VDC Inverter - 30kWh System Bundle | 2 x EG4 12000XP Inverter + 2 x BigBattery NEXUS

Description

EG4 & BigBattery Hybrid Power Kit 12kW 120/240V Output 48VDC Inverter 15kWh System Bundle

Take control of your energy independence with the EG4 & BigBattery Hybrid Power Kit. This complete bundle combines the powerful EG4 12000XP Inverter with the reliable BigBattery NEXUS, delivering seamless off-grid or hybrid energy solutions for residential and commercial applications. With a 12kW output at 120/240V and a robust 15kWh storage capacity, this system is engineered to keep your home or business running smoothly—day and night.

  • High-Capacity Storage: 15kWh BigBattery NEXUS ensures long-lasting backup and off-grid reliability.
  • Powerful Inverter: EG4 12000XP delivers 12kW continuous output with split-phase 120/240V capability.
  • Hybrid Flexibility: Supports both grid-tied and off-grid setups for maximum versatility.
  • Scalable Solution: Expandable design to grow with your energy needs.
  • Smart Efficiency: Advanced inverter technology for optimized performance and reduced energy loss.

Whether you’re powering a home, cabin, or small business, this hybrid kit provides the strength, flexibility, and peace of mind you need for true energy independence.

Would you like me to also craft a shorter, sales-optimized version (bullet-heavy, Amazon-style) for quick product listings?

What's Included

2 x EG4 12000XP 120/240V Output 48VDC Inverter

2 x BigBattery 48V NEXUS-LiFePO4-300Ah-15kWh


Product Specifications

BigBattery NEXUS Product Specifications

Battery Specifications NEXUS 15KWh
SKU F-NXUS-48150-G1
System Voltage 48V
Nominal Voltage 51.2V
Chemistry LiFePO4
Usable Energy (kWh) 15kWh
Ah Capacity 300Ah
Cell Configuration 16S1P
Max Continuous Discharge 100A
Max Discharge Power 7.6kW
Max Discharge Peak 110A
Max Charge Current 100A
Charging Voltage Range 53.5V-57.6V
Operating Voltage Range 48V-57.6V
Max Charge Voltage 57.9V
Suggested Low Voltage Cutoff 50.8V
Charge Temp Range 0°C to 45°C
Discharge Temp Range -20°C to 45°C
Optimal Discharge Temp +15°C to +35°C
Storage Temp Range (SoC >50%) -20°C~25°C
Humidity Range 10%-95% (No Condensation)
Weight (kg) ~142.8 kg ±5
Dimensions (WxHxD) 19.7 x 27.5 x 15.7 in (500Ɨ700Ɨ400 mm)
Altitude Limit <2000m
Max Connections 15 in parallel (up to 225kWh)
Communications RS485 / RJ45 / CAN
Protection Rating IP21
Certifications UN38.3
Installation Indoor Floor-standing


EG4 12000XP Product Specifications

EG4 12000XP Spec Sheet

EG4 12000XP Certificate of Compliance

EG4 12000XP WiFi Configuration Guide


Product Manual

EG4 12000XP User Manual

BigBattery 48V NEXUS Product Manual

Product Warranty

EG4 Product Warranty

EG4 Electronics offers a 10-year Full Parts Replacement or Full Product Replacement Prorated Warranty from the date of battery (EG4 WallMount Indoor 100Ah*1) purchase.

Your warranty must be registered within the first year of purchase or provide proof of purchase from an EG4 authorized distributor to remain valid. If you choose not to register or cannot provide proof of purchase, your warranty may be invalidated.

This limited warranty is to the original purchaser of the product and is one time transferable only if the product remains installed in the original installation location. All parts exchanges, including BMS, are covered during the warranty period. If a full replacement warranty is needed, the warranty is prorated 1/10th per year after the first year at the current retail pricing. Replacement shipping charges may incur on a case-by-case basis. Outside of the continental US, replacement shipping charges may apply.

Product that is not purchased through an EG4 approved vendor is not covered under this warranty. A list of approved vendors can be found on our website. Reselling or removing the product from the original installation site will void the warranty.

Warranty Exclusions – EG4 Electronics has no obligation under this limited warranty for products subjected to the following conditions (including but not limited to):

  1. Damages incurred during installation/reinstallation or removal

  2. Poor workmanship performed by an individual, installer, or a firm

  3. Damages caused by mishandling the product or inappropriate environmental exposure

  4. Damages caused by improper maintenance or operating outside the specified operating conditions

  5. Tampering, altering, and/or disassembly of the product

  6. Using product in applications other than what the manufacturer intended

  7. Lightning, fire, flood, earthquake, terrorism, riots, or acts of God

  8. Any product with a serial number that has been altered, defaced, or removed

  9. Any unauthorized firmware updates/upgrades/patches

  10. Failure to update with the most recent firmware version, when known defects/issues are corrected

  11. Damages incurred from a voltage or current spikes due to open-loop lithium battery communications

EG4 product warranty is a limited warranty – EG4 limits its liability in the event of a product defect to repair or replacement in accordance with the terms of thisĀ limited warranty. EG4 is not responsible for any additional or indirect damages that may arise from the malfunctioning of the product. These damages could be incidental or consequential, including without limitation, any liability for the loss of revenue, profits, or time. EG4 shall not be liable for any direct or indirect loss of life, including but not limited to bodily injury, illness, or death arising from the misuse or mishandling of the product, whether caused by negligence or otherwise.

EG4 recommends operating its batteries under the conditions listed in our white paper ā€œSoH, DoD and Round-trip Efficiency Explainedā€ to maintain longer and more efficient battery life.
