Automaxx 1500W Hybrid Power System
Description

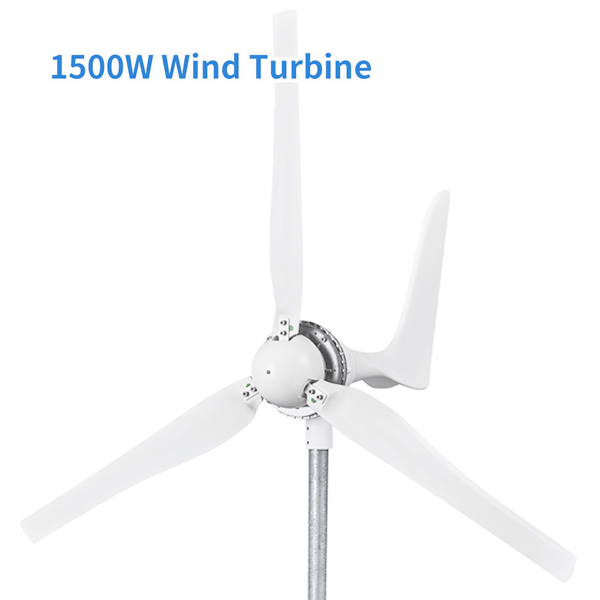

Wind Turbine:
The wind turbine that is mounted on top is durable, low maintenance, and a light wind turbine that can generate more power. Coated with special high weather tolerant spray to protect the wind turbine from the elements such as rain and the harsh UV rays from the sun. It generates 100% clean GREEN renewable energy, without you being present or around it.

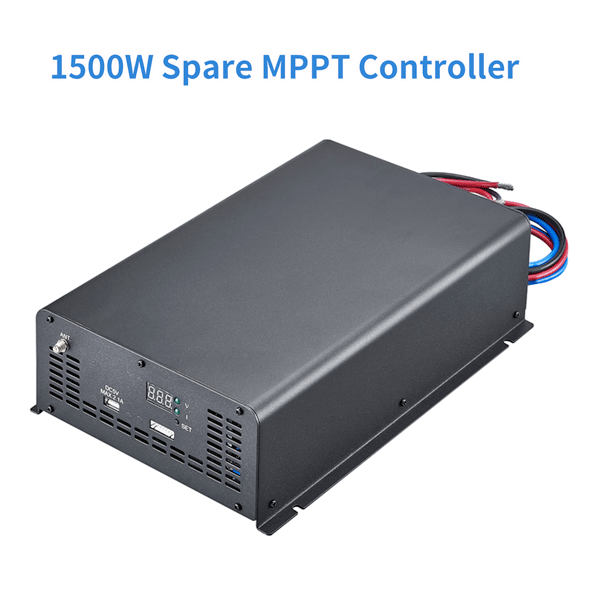

MPPT:
The MPPT is specially designed for each individual wind turbine, the special design allows you to get the most power out of the wind turbine as well as to protect your wind turbine from overcharging.

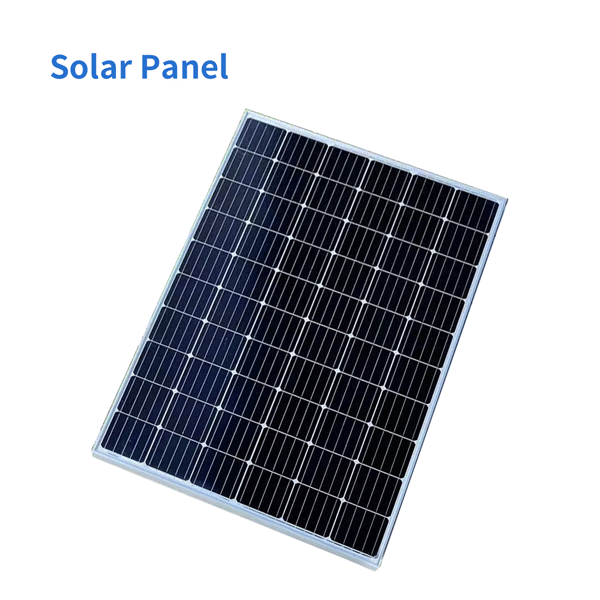

Solar Panel:
The advanced 300W solar panels have a solar efficiency of up to 18.82% with an operating temperature of between -40 degrees centigrade and 85 degrees centigrade. The solar panels are made from high-grade materials that protect the solar panels from weather elements. The solar panel comes with its own battery in case the wind turbine were to fail or break the solar panel will still be able to operate by itself.

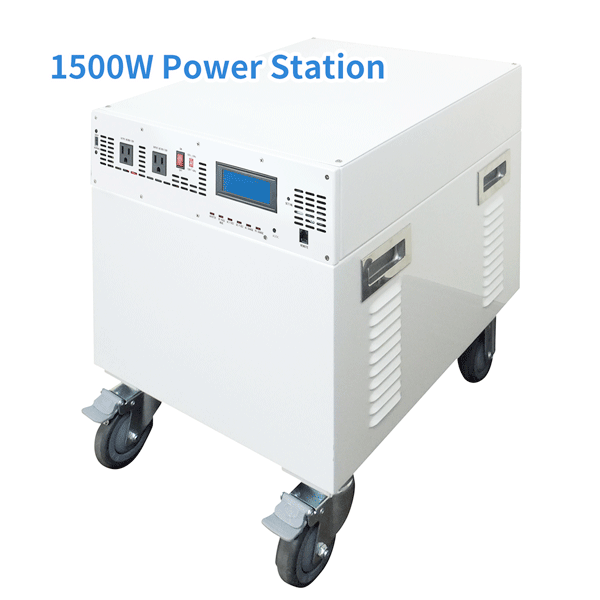

Power Station:
Our power station has been specially designed to handle a hybrid power situation. The default setting on the Power Station is to only charge from the Green Energy devices. If the green energy is not producing enough power in the limited time you need there is an option for you to charge the device directly from an AC outlet. There is a Voltage meter and an Ampere meter to show the status of the power bank.
The Power Station can connect a solar panel, a wind turbine, and an AC input to power up the Power Station.
The Power Station can be situated in areas near where your green energy power equipment is for them to be charged and used. Since the Power Station is movable, once the Power Station is charged you can move it to an area where you need electricity to be supplied.
Why Use Our Hybrid System
Solar and wind are clean sources of renewable energy that produce no air or water pollution. Solar and wind are free and since the operational costs are close to zero once a hybrid is erected therefore demands mass production and technology advances are making turbines cheaper and more versatile. We then took the innovative initiative to re-engineer the concept of wind turbines and solar panels as a whole making it more stylish, and more efficient.
The genius reasoning behind combining both wind and solar power is when there is no sun it is usually windy (night times and rain) and when it’s not windy it’s usually sunny. This way the hybrid system is always able to generate power in any weather conditions.
How To Use Our Hybrid System
We supply you with all the necessary parts and tools to construct the wind turbine and solar panels. All our hybrid systems come with instructions on how to operate the hybrid system. Once fully installed the wind spins the glass fiber blades, which turns a shaft that is connected to a generator that converts kinetic energy into clean, free, renewable electricity which is then either directly used or stored for later use. All the while the solar panels are working independently to gather power from the sun too.
Where Can Our Hybrid System Be Used
Automaxx wind turbines and solar panels are designed so that they are small, compact, and versatile enough for parking lots, zoos, tourist attraction sights, farms, and many more residential applications at the fraction of the cost but with multiple benefits. We suggest you consider the following for the location of your hybrid system:
1. The distance from any obstacles that will cause turbulence and shade such as trees.
2. The distance between the MPPT controller and the battery.
3. Local zoning restrictions.
4. Clearance of power lines.

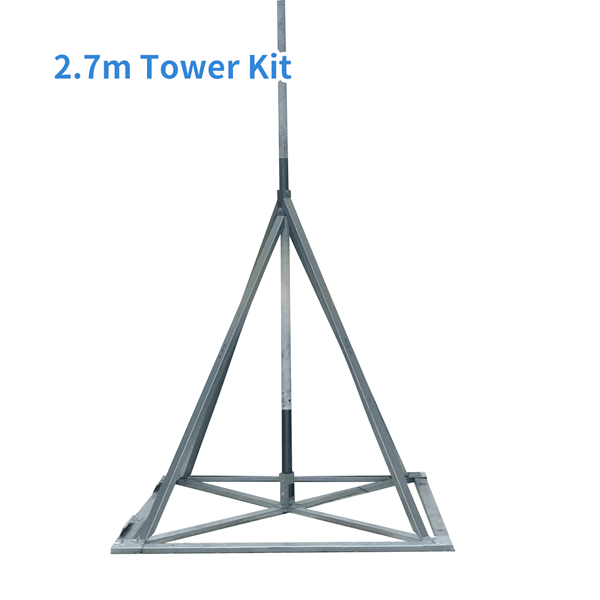

In general the higher the hybrid system the less obstruction to airflow and sunlight it will have. We recommend the wind turbine be at least 6 m high.
Product Specification
Specification
Model Number: |
ST-200 |
SOLAR PANEL |
Rated Power: |
340W |
Max. Power Voltage: |
33.3V |
Max. Power Current: |
9.48A |
Open Circuit Voltage: |
40.8V |
Short Circuit Current: |
10.18V |
Module Efficiency: |
18.82% |
Solar Cell Efficiency: |
17.2% |
Operating Temperature: |
-40°C ~ +85°C |
POWER STATION |
Output Wave Form: |
Pure Sine Wave |
AC Output: |
110V/220V |
DC Input: |
12V/24V |
Normal Power Output: |
1500W |
Max. Power Output: |
1650W |
Surge Power Output: |
3000W |

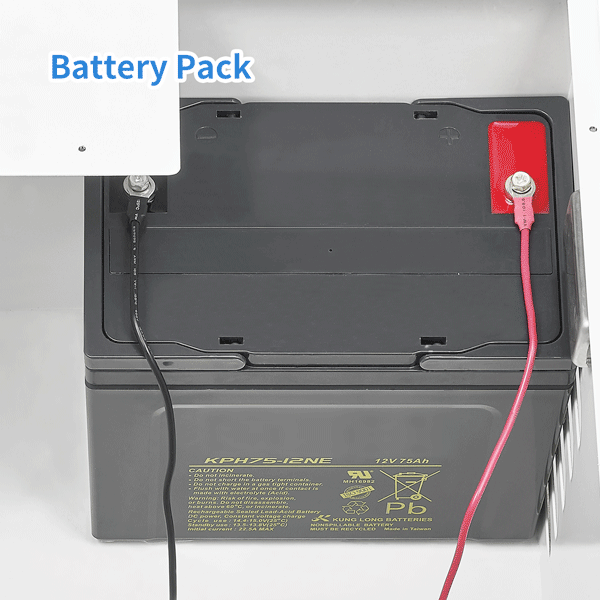

Batteries: |
Lead-acid batteries 150AH (Not Included) |
Product Warranty & Return
Automaxx Warranty & Return
General
We warrant your product to be free from defects in material and/or workmanship for 2 year from the original date of purchase. Warranty coverage is extended only to the customer (original purchaser). If the product proves defective during the warranty period, Automaxx option will be:
- Replace wind turbines with a new or refurbished product.
- Repair or replace the defective part.
The customer’s warranty continues to be valid on repaired or replaced products from the original warranty date.
Warranty Period
The Automaxx warranty valid for the period of two year (730 days) after the date of first purchase. If proof of purchase cannot be provided, the manufacturer date as recorded by Automaxx will be deemed to be the start of the Warranty Period.730
Product FAQs
Automaxx 1500W Hybrid Power System FAQs
1) How does the wind turbine control power and RPM in high winds?
Our Turbine’s MPPT charge controller applies the brakes and halts the operation to reduce the risk of damage due to overcharge and over-spin of the rotor blades.
2) What is the maximum wind speed that wind turbine will survive and do I need to take it down in a storm?
Our wind turbine is designed to operate in most climatic conditions. Should you expect or experience winds of 110 MPH upwards, please manually activate the brake. Once the Turbine has stopped it is possible to lay down the tower to offer further protection.
3) Can the unit self re-direct towards the wind?
Yes, our wind turbine can rebalance itself according the blowing wind and can rotate 360 degrees.
4) Does the turbine comes with the current breaker?
Our wind turbine come with multi stage protection one is manual brake (App controlled brakes, only for Bluetooth version) and has in-build Mosfet inside the MPPT charge controller that acts as an auto current breaker.
5) Can we add this to our existing solar system?
All of our wind turbines are designed such that they can be used as single stand-alone units or can be conjugated with other off-grid solar/ wind turbine units.
6) Can & How to connect a wind turbine and a solar panel? Any special setting requirements?
Yes, of course you can. All of our wind turbines are designed such that they can be used as single stand-alone units or can be conjugated with other solar/ wind turbine units. Connecting both systems to the same battery pack is as same as connecting them to a separate pack, but they should have a separate charge controller. Sometimes, on a sunny day, overcharge protection may appear, as to protect the battery which is pretty common in a hybrid system case.
