ARCO Marine BI-1602 Battery Isolator - 160A - 1 Alternator, 2 Battery [BI-1602]

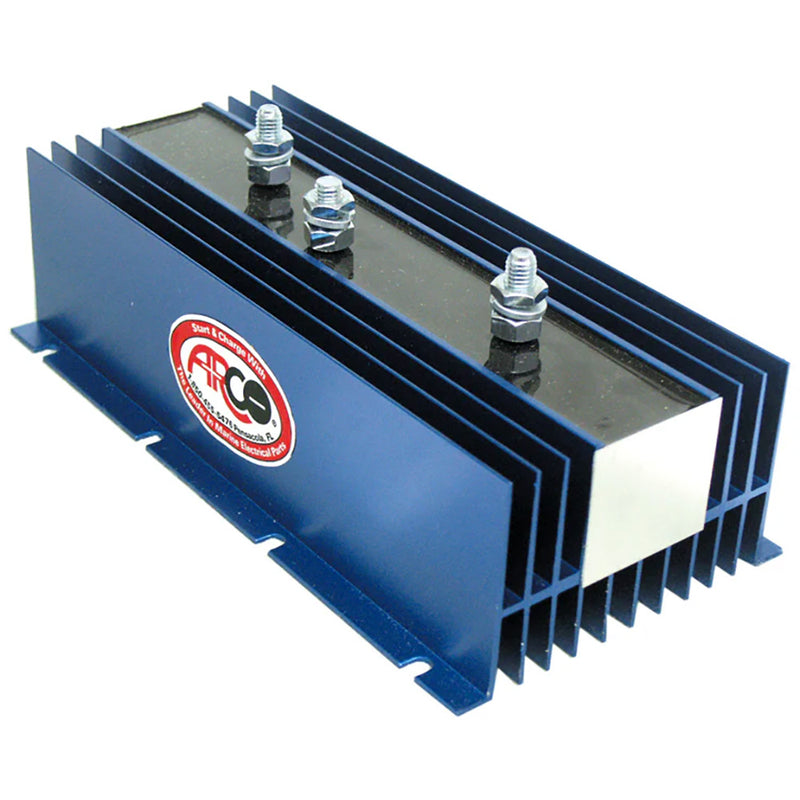

The Arco Marine BI-1602 is an inboard/outboard battery isolator that can handle 1 alternator, 2 batteries, and 160A max. Rated for use with 10 to 350-amp alternators on 12, 24, or 32-volt negative ground systems.

Features:

  • 1 alternator, 2 batteries, 160A max
  • Inboard and outboard battery isolators are solid-state devices that allow electrical current to flow in one direction ONLY, thus permitting the alternator to be connected directly to two batteries without fear of one higher-charged battery discharging into the lower-charged battery.
  • Both batteries are always being charged automatically, in proportion, to their needs whenever the engine is running.
  • When battery isolators are used in conjunction with selector switches, it is not necessary to change the switch position to provide for charging of both batteries.
  • Isolators provide proportioning of the output or charging current on the alternator to the batteries as required, regardless of switch position.

NOTE: Battery Isolators cannot be used on 12 volt charging systems with 24 volt trolling motors or newer outboard engines with rectifier-regulator charging systems.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product Specifications

ARCO Marine BI-1602 Battery Isolator - 160A - 1 Alternator, 2 Battery [BI-1602] Product Specifications

Technical Specifications:

  • Configuration: 1 alternator → 2 battery banks

  • Maximum Current Rating: 160A

  • Alternator Compatibility: 10–350A output

  • System Voltage: 12V, 24V, or 32V (negative-ground systems)

  • Isolation Type: Solid-state diode (one-way current flow)

  • Regulator Sense Terminal: Included

  • Functionality: Charges both batteries automatically—no switch position changes needed

  • OEM Equivalent: Replaces Sierra 18‑6852

  • Weight: Approx. 3.65 lbs (1.66 kg)

  • Dimensions: 4″ H × 5″ W × 11″ D

  • UPC: 693006007403

  • Restrictions: Not for use with 12V systems connected to 24V trolling motors or with rectifier-regulated outboard engines

Product Manual

Quick Guide (pdf)

Product Warranty

ARCO Marine Warranty

ARCO Marine warrants all newly manufactured parts sold by authorized dealers to be free from any defects in materials or workmanship for 12 months. All rotating electric parts will receive an additional year of parts warranty when registered within 30 days of purchase.
