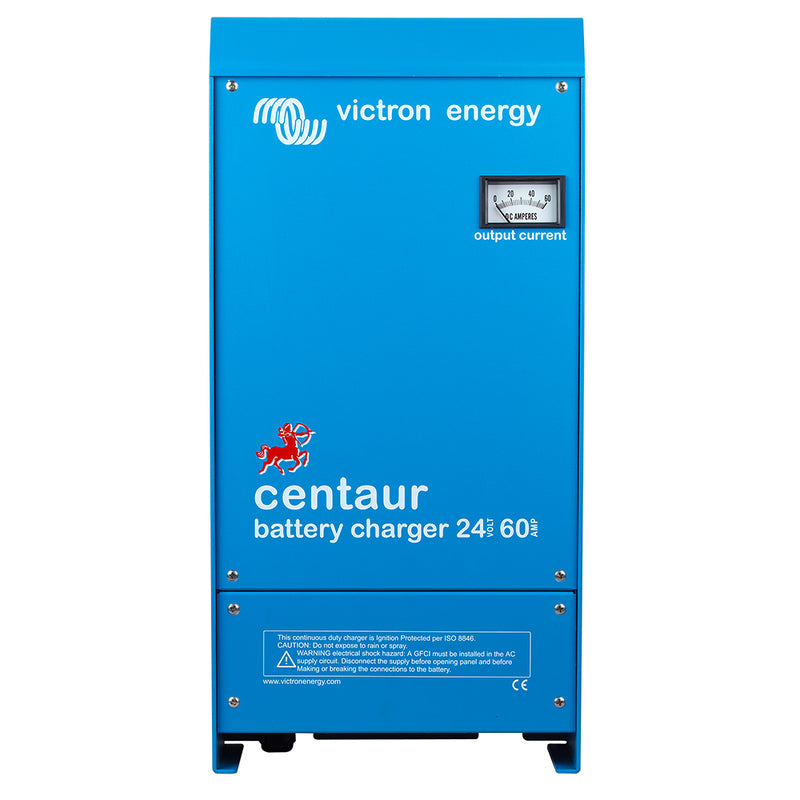

Victron Energy Centaur Charger - 24 VDC - 60AMP - 3-Bank - 120-240 VAC [CCH024060000]

Features:

• Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
• Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
• The chargers also accept a 90-400 V DC supply.
• Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
• Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Once purchased and in use, this product is non-returnable.

Product Specifications

Victron Energy Centaur Charger - 24 VDC - 60AMP - 3-Bank - 120-240 VAC [CCH024060000] Product Specifications

Electrical Specifications

• Charger Input Voltage: 120/240 V AC (range: 90–265 V, 45–65 Hz)

• Charger Output Voltage: 24 V DC nominal

• Charger Output – Amps: 60 A total

• Charging Banks: 3 isolated outputs

• Charging Algorithm: IUoU (3-stage charging)

• Absorption Voltage: 28.6 V DC

• Float Voltage: 27.2 V DC

• Temperature Compensation: –3 mV/°C per cell (internal sensor)

• Power Factor: Approximately 1.0

Key Features

• Three isolated outputs for simultaneous charging of multiple 24 V battery banks

• Maintains full output across wide input voltage range

• DIP switch selection for battery type (Flooded, Gel, AGM)

• Controlled cooling via internal fan responding to temperature/load

• Protections for short-circuit, over-voltage, and over-temperature

• Durable aluminum housing with integrated drip shield

Physical & Environmental

• Portable: No

• Cooling: Temperature and load-controlled internal fan

• Operating Temperature: –20 °C to +60 °C (output derates above +40 °C)

• Enclosure Rating: IP21 (indoor, dry environments)

• AC Connection: Screw-clamp terminals (up to 4 mm² / AWG 6)

• Battery Connections: M8 studs

• Box Dimensions: 9" H × 14" W × 25" L

• Weight: 22.05 lbs (approx. 10 kg)

• Humidity Tolerance: Up to 95%, non-condensing

• UPC: 8719076021575

Product Manual

Quick Guide (pdf)
Brochure (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
