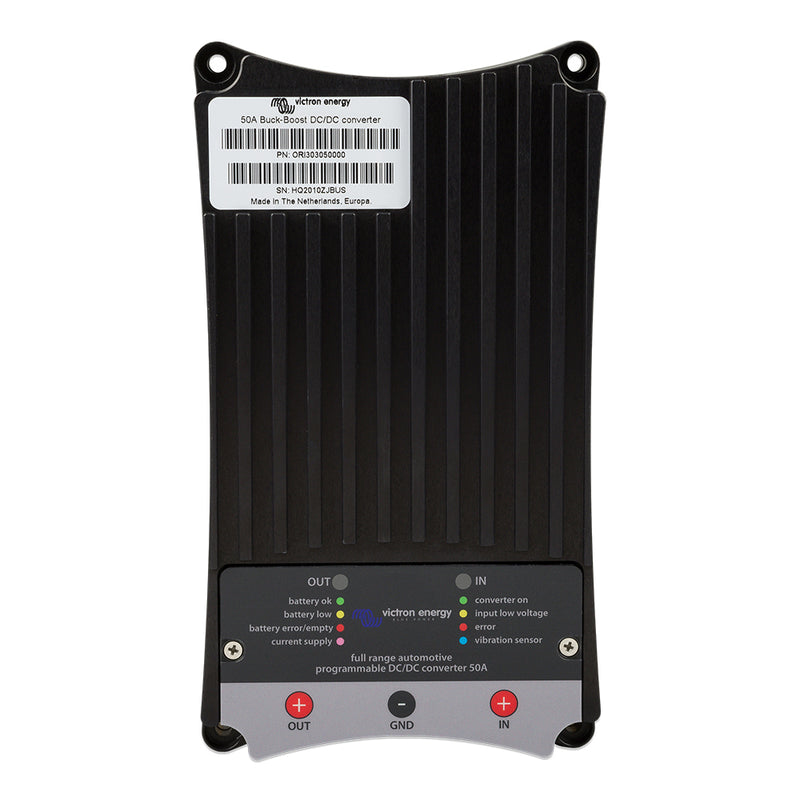

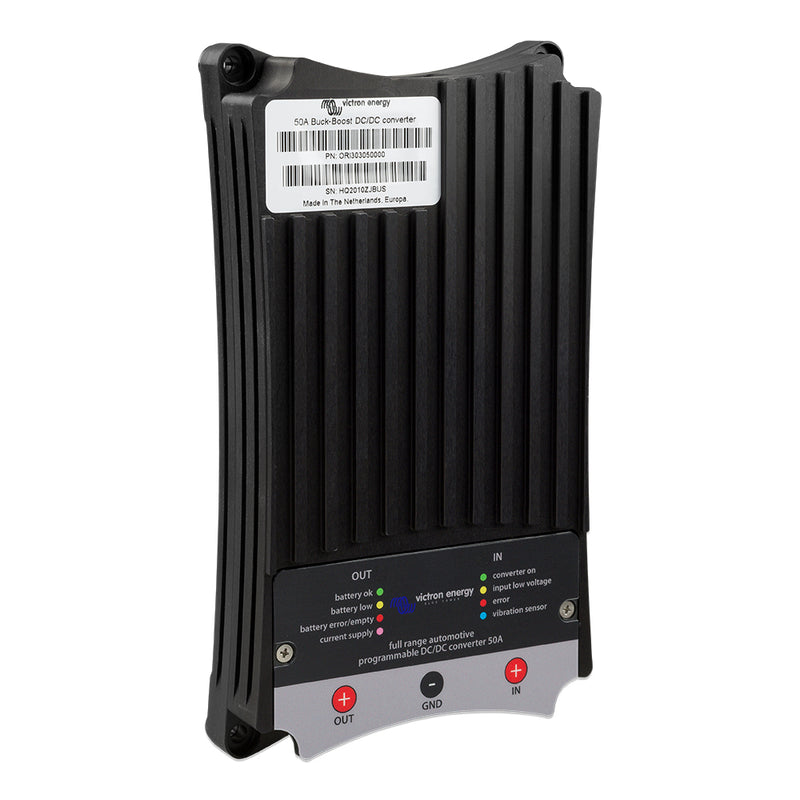

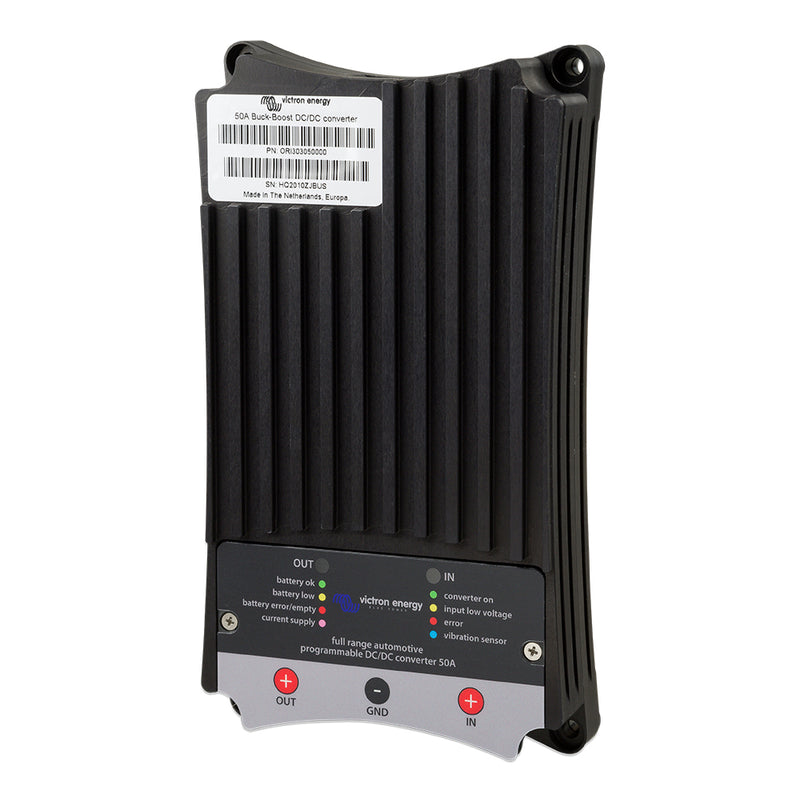

Victron Energy Buck-Boost DC-DC Converter - 50A [ORI303050000]

DC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo.

The Buck-Boost DC-DC Converter is a DC-DC converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. Since, when the engine is running, these dynamos (powered by the on-board electronics of Euro 5 and 6 engines) do not always emit the correct charging current, a DC-DC converter is essential for charging the service battery properly.

Once purchased and in use, this product is non-returnable.

Product Specifications

Victron Energy Buck-Boost DC-DC Converter - 50A [ORI303050000] Product Specifications

Power & Output

  • Input Voltage Range: 10 – 30 V DC (max 30 V)

  • Output Voltage Range: 10 – 30 V DC (matches input)

  • Maximum Charge Current:

    • 50 A (12 V systems)

    • 25 A (24 V systems)

  • Power Settings: Fully programmable output current and input current limits

  • Efficiency/Conversion: High-efficiency buck-boost topology

Features & Protections

  • Engine‑Running Detection: Built-in sensor activates converter only when vehicle is running

  • Fully Programmable: Set charge voltage, current limits, activation conditions via USB cable

  • LED Indicators: Input/output status and engine detection via multi-color LEDs

  • Protections: Over-temperature shutdown, smart alternator support, and input undervoltage protection

Physical & Environmental

  • Dimensions: 213 × 120 × 30 mm

  • Weight: 1.4 kg

  • Enclosure: Compact design, wall or surface mountable

Use Case Summary

  • Designed for 12 V or 24 V service battery charging from 12/24 V alternators—especially with smart alternators (Euro 5/6, regenerative braking)

  • Prevents overvoltage or undervoltage to the auxiliary battery

  • Offers adjustable current limiting to protect both alternator and battery

Product Manual

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
