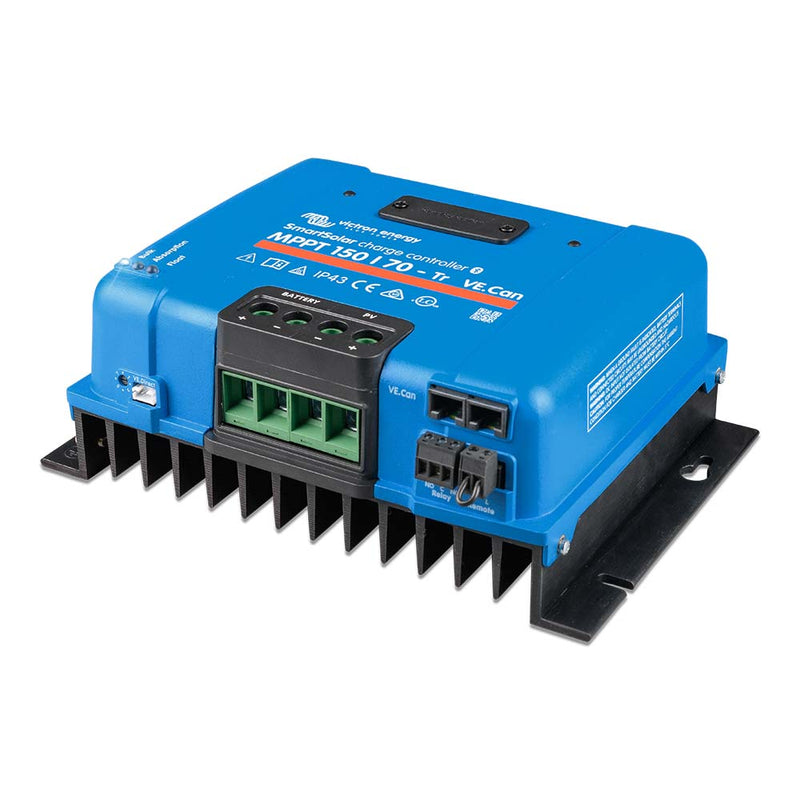

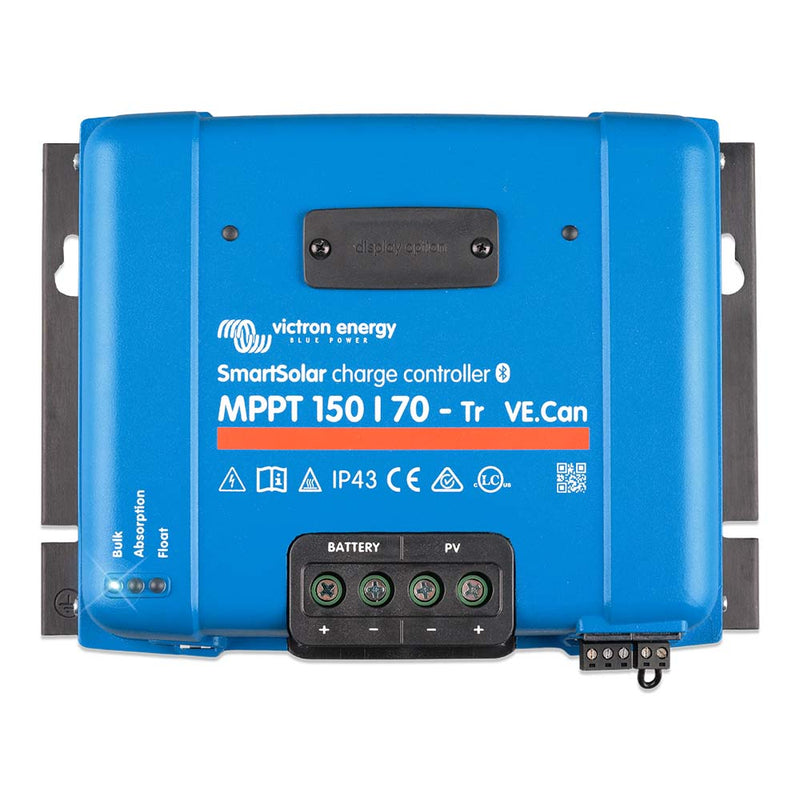

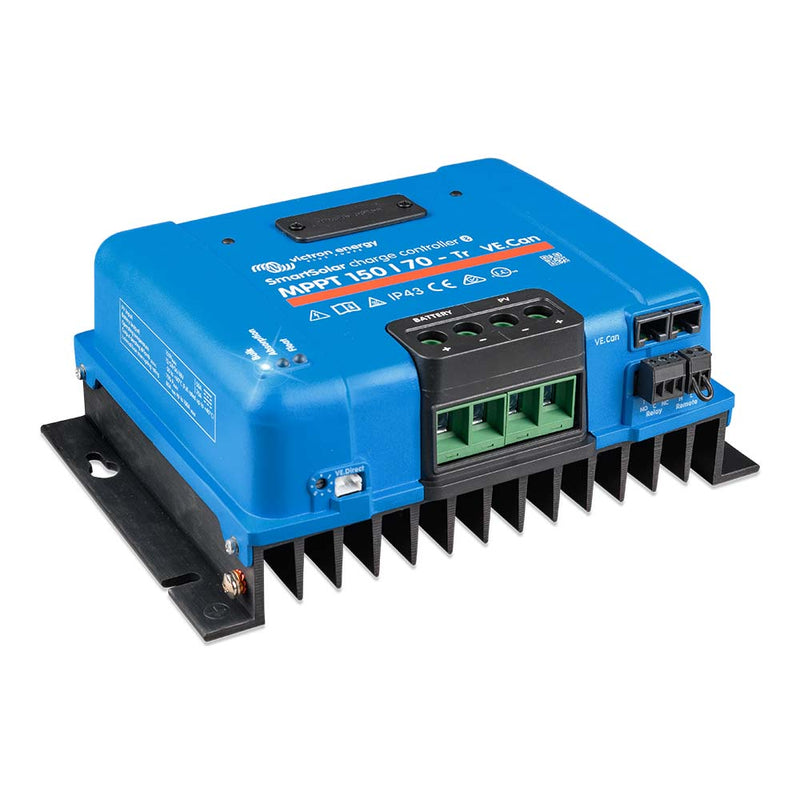

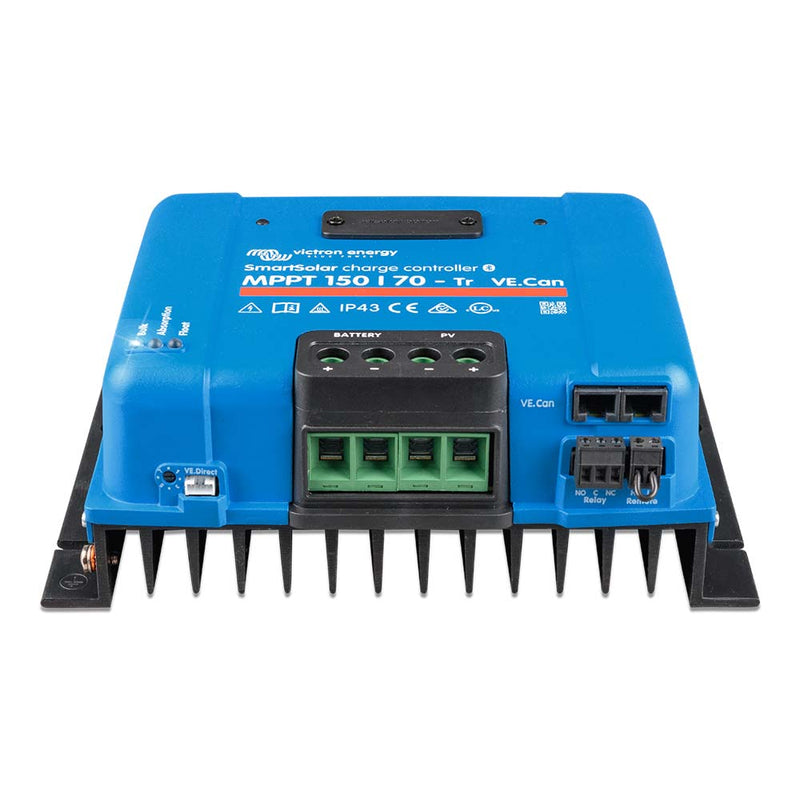

Victron Energy SmartSolar MPPT 150/70-TR Solar Charge Controller - VE.CAN - UL Approved [SCC115070411]

Solar Charge Controller

The MPPT VE.Can SmartSolar charger use the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks?

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.

Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

SmartSolar Control Display

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device.

Once purchased and in use, this product is non-returnable.

Product Specifications

Victron Energy SmartSolar MPPT 150/70-TR Solar Charge Controller - VE.CAN - UL Approved [SCC115070411] Product Specifications

Power Specifications

• PV Input Voltage (Voc max): 150 V

• Battery Bank Compatibility: 12 V, 24 V, 36 V, 48 V auto-detect

• Maximum Charge Current: 70 A

• Maximum PV Array Power:

  • ~875 W (12 V)

  • ~1,750 W (24 V)

  • ~3,500 W (48 V)

• Ultra-Fast MPPT Tracking: Improved energy harvest vs PWM and slower MPPTs

• Efficiency: >99%

• Cooling: Passive, fanless design

Features & Protections

• MPPT Algorithm: Optimized for partial shading & variable conditions

• Programmable Charge Profiles: Includes 8 preset battery types

• Connectivity: Built-in Bluetooth, VE.Can & VE.Direct ports

• Parallel Configuration:

  • Up to 25 units via VE.Can

  • Up to 10 units via Bluetooth

• Deep-Discharge Recovery: Automatically recovers deeply depleted batteries

• Remote On/Off: Available via external control

• Protections: Over-temperature, PV short circuit, reverse polarity, reverse current

Physical & Certification

• Cooling: Convection only, no fan

• Display: Optional plug-in LCD available

• Certifications: UL-approved for safe commercial use

• Design: Durable and compact for marine, vehicle, and off-grid solar systems

Product Manual

Quick Guide (pdf)

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.

Product FAQs

N/A
