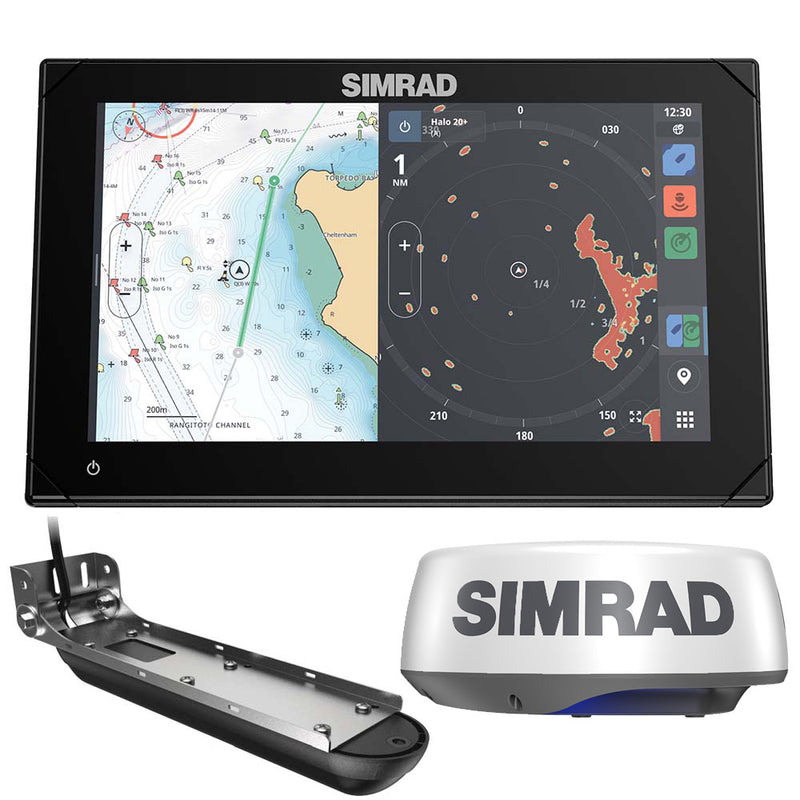

Simrad NSX 3009 Radar Bundle - HALO20+ Radar Dome Ā Active Imaging 3-in-1 Transducer [000-15377-001]
Description
Everything about NSXā¢ is designed to bring your fishing adventures closer. Enjoy our fastest-ever Autorouting and next-gen C-MAPĀ® charts. Experience intuitive touch screens and a simple sonar setup with hints to assist you when you need it. Count on high-resolution imagery from state-of-the-art sonar technology, like FishRevealā¢, DownScan Imagingā¢, and SideScan.
Add compatibility with a wide range of 1 kW transducers for even more target resolution, and there is nothing between you and your next adventure but open water.
An Intuitive Touchscreen Experience
Easily access all NSXā¢ features via a modern and simple interface, including drag-and-drop screen customization and enhanced day and night modes. Get crystal clear views of chart detail with the vibrant SolarMAXā¢ IPS touchscreen - viewable from any angle, in direct sunlight, and even through polarized lenses.
Bring Navigation to Life with NSXā¢
See map details in a different way with next-generation C-MAPĀ® DISCOVERā¢ X and REVEALā¢ X marine-optimized charts for day and night. Experience our fastest-ever Autorouting and with the SimradĀ® Companion App plan trips, review Tracks, plot Waypoints, and sync directly.
Full Suite of SimradĀ® Technology at Your Fingertips
Expand your system with advanced SimradĀ® technology. Experience high-resolution imagery rom state-of-the-art sonar technology, like Active Imagingā¢, and compatibility with a wide range of 1 kW transducers. Identify hazards immediately and see near and far simultaneously with award-winning pulse compression HALOĀ® radars, and stay on course with legendary SimradĀ® Autopilots.
Simple to Set Up, Easy to Manage
Get up and running quicker than ever. The Setup Wizard features step-by-step instructions and guidance throughout your initial setup and with future adjustments. In addition, Sonar Device Setup provides easy-to-understand prompts for each step of the process, while the SimradĀ® App allows access to the best planning tools and hassle-free software updates and data transfer.
Features:
- Features a marine-optimized C-MAPĀ® DISCOVERā¢ X chart with a fresh, intuitive chart presentation and daily updates ā plus support for C-MAP REVEALā¢ X chartsĀ
- High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses
- Active Imagingā¢ 3-in-1 transducer featuring CHIRP, SideScan, and DownScan Imagingā¢, plus support for 1kW transducer capability to reach greater depths
- Quickly identify fish with FishRevealā¢
- Setup Wizard to get you up and running quickly, plus a simpler sonar setup
- Full integration with the capability to expand the system with SimradĀ® sonar, autopilot, radar, and moreĀ
- Faster Autorouting with seamless accessibility
- See near and far simultaneously (up to 48nm), with HALOĀ® Radar support and get ultra-fast updates every second
- Stay on course with full SimradĀ® autopilot integration
- Clean and simple interfaceĀ
- SimradĀ® App integration ā keep your chart data at your fingertips, both on and off the water
- Third-party app integrationĀ
- Wireless connectivity, plus full Ethernet and NMEA 2000Ā® networking capabilityĀ
- IP Video Support
HALO20+ 20" Radar with 10M Cable
See Far And Near With One Compact Dome
Perfect for wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid, and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far-away weather cells while watching for collision hazards up close. HALO20+ radarās pulse compression technology means no compromises in detection at the either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Best View To Avoid Collision
HALO20+ radar does a full 360-degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast-moving targets. Ā
Built-in VelocityTrackā¢ Doppler Technology
VelocityTrackā¢ technology grands instant visual feedback on whether targets are coming towards you or moving away with color-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness, and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; thereās no need to manually select individual targets and no limit to the number of targets on screen at one time.
Ready Whenever You Are
HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.
Easy-to-Use Radar
Harbor, offshore, weather, and custom modes tune HALO20+ Radarās advanced signal processing to help ensure that targets can be seen vividly ā even in the toughest environmental conditions.
Features:
- 36 nm range from a compact 20-inch dome
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation sees both far and near
- Ultra-fast 60 RPM operation at ranges up to 1.5 nm
- VelocityTrackā¢ Doppler technology to avoid collision
- Easy operation with harbor, offshore, weather, and custom modes
- MARPA target tracking (up to 10 targets, 20 in dual range)
- Ready instantly from standby
- Low power consumption
Included:
- 20" dome
- 10m cable (000-14548-001)
- Ethernet Adapter Cable (000-14552-001)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Product Specifications
Simrad NSX 3009 Radar Bundle - HALO20+ Radar Dome Ā Active Imaging 3-in-1 Transducer [000-15377-001] Product Specifications
Specifications:
Display
-
Backlight Color: White
-
Display Resolution: 1280 x 720 px
-
Display Size: 9 inches
-
Screen Brightness: >1200 nits
-
Viewing Angles: 85Ā° (top, bottom, left, right)
Physical
-
Compass Safe: 50 cm (1.7 ft)
-
Dimensions (W x H x D):
-
With bracket: W: 263.0 mm (10.35") x H: 172.6 mm (6.80") x D: 80.6 mm (3.17")
-
No bracket, no suncover: W: 239.0 mm (9.40") x H: 148.5 mm (5.85") x D: 80.6 mm (3.17")
-
No bracket, with suncover: W: 243.7 mm (9.59") x H: 153.4 mm (6.03") x D: 85.6 mm (3.37")
-
Mounting Type: Bracket (supplied), panel mount, or flush mount
-
Weight: 1.2 kg (2.6 lbs)
Electrical
-
Max Power Consumption: 18.8 W (1360 mA at 13.8 V)
-
Recommended Fuse Rating: 3A
-
Supply Voltage: 12 V DC (10ā17 V DC mināmax)
Environment
-
Humidity: IEC 60945 Damp heat 66Ā°C (150Ā°F) at 95% relative (18 hr)
-
Operating Temperature Range: -15Ā°C to 55Ā°C (5Ā°F to 131Ā°F)
-
Shock & Vibration: 100,000 cycles of 20 G
-
Storage Temperature Range: -20Ā°C to 60Ā°C (-4Ā°F to 140Ā°F)
-
Waterproof Rating: IPX6 and IPX7
Connectivity
-
Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic
-
Ethernet Ports: 1 port (5-pin connector)
-
Wi-Fi: IEEE 802.11b/g/n
-
NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
-
PC Connectivity: No
-
SD Card Storage: 1 MicroSD slot, USB port for external drive
-
Video: IP Camera support
MFD
-
AIS: Receive AIS data over NMEA 2000
-
Cartography Included: Discover X chart card of North America
-
Digital Switching: Czone / Simrad DDS
-
GPS: Internal, 10 Hz
-
Sonar Compatibility: One 9-pin Xsonic Sonar port; single channel CHIRP, 50/200 kHz, HDI, Active Imaging
-
Waypoints, Routes, Tracks: 6000 waypoints, 500 routes (100 max points per route), 50 tracks (up to 12,000 track points)
-
Weather: No
GPS
-
Correction: 10 Hz high-speed update (internal) WASS, MSAS, EGNOS, GLONASS
-
GPS Receiver Channels: 32
-
Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
-
Update Rate: 10 Hz
Other
-
Interface: Multi-touch screen
-
Languages: German, English, Dutch, Danish, Spanish, French, Italian, Norwegian, Portuguese, Finnish, Swedish, Icelandic, Greek, Chinese, Turkish, Estonian, Croatian, Lithuanian, Latvian, Polish, Chinese Simplified, Japanese, Korean, Ukrainian
-
Warranty Period: 2 Years
Transducer & Display
Box & Weight
Product Manual
Product Warranty
Simrad Warranty
Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ādate of first purchaseā means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in theĀ Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). Ā These units are certified to different standards for different markets. Ā Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Ā Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors ā this will ensure that customers receive products which are safe and useful for their requirements. Ā In addition, customers who experience a problem can receive prompt local service and support. Ā Contact us for more information.
