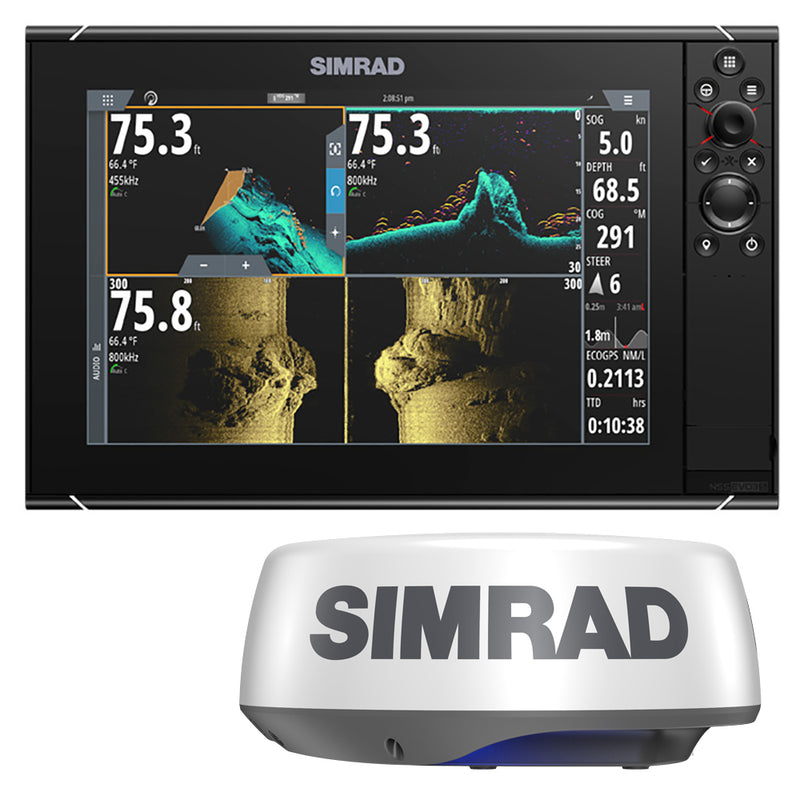

Simrad NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder Radar Bundle HALO20+ - No HDMI Video Outport [000-15555-002]
Description
Improved Charting experience with the iMX8 processor
With a 2X faster page loading time, choosing any split-screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.
In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR, and Florida Marine Tracks.
Enhanced Sonar with superior on-water performance
1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.
Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structures, and crystal clear views of the bottom ahead using ForwardScan® sonar.
SolarMAX™ IPS display for high-definition views
Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.
These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.
UI improvements
- Dark-themed wallpaper for less light pollution from a dash of multiple screens.
- The Audio side bar can now expand into a full page view.
- The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu.
- The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page
Wireless connectivity for smartphones and tablets
Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data, and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features, and accessory support.
The Simrad App can also be downloaded for added benefits – from device registration and manual downloads to saving waypoints and your favorite fishing spots – accessible both on and off the water.
Radar Options
HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls, and even locate flocks of feeding birds in order to locate fishing spots.
FLIR IP Camera Support
Day and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360-degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from an NSSevo3S™.
WM-4 Receiver
Get up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species, and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.
Fast & Simple Networking & Connectivity
Industry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems, and much more.
Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deepwater S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot.
What's In The Box?
- Display Unit
- Bezel Trim
- Documentation pack
- Power cable kit
- U-bracket kit
- Panel mounting kit
Connections:
- Ethernet - 2x Ethernet network
- Power - power, power control, and external alarm
- Video- composite video and NMEA0183
- NMEA 2000 - NMEA 2000 data
- Sonar CH1
- Sonar CH2
HALO20+ 20" Radar with 10M Cable
See Far And Near With One Compact Dome
Perfect for wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid, and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on faraway weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Best View To Avoid Collision
HALO20+ radar does a full 360-degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast-moving targets.
Built-in VelocityTrack™ Doppler Technology
VelocityTrack™ technology grants instant visual feedback on whether targets are coming towards you or moving away with color-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness, and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
Ready Whenever You Are
HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.
Easy to Use Radar
Harbor, offshore, weather and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.
Features:
- 36 nm range from a compact 20-inch dome
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation sees both far and near
- Ultra-fast 60 RPM operation at ranges up to 1.5 nm
- VelocityTrack™ Doppler technology to avoid collision
- Easy operation with the harbor, offshore, weather, and custom modes
- MARPA target tracking (up to 10 targets, 20 in dual range)
- Ready instantly from standby
- Low power consumption
What's In The Box?
- 20" dome
- 10m cable (000-14548-001)
- Ethernet Adapter Cable (000-14552-001)
Product Specifications
Simrad NSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder Radar Bundle HALO20+ - No HDMI Video Outport [000-15555-002] Product Specifications
Specifications:
Display
-
Backlight Color: White
-
Display Resolution: 800 x 1280 px
-
Screen Brightness: 1200 nits
-
Viewing Angles: 80° top/bottom, 80° left/right
-
Screen Size: 12"
Physical
-
Compass Safe: 50 cm (1.7 ft)
-
Dimensions (W x H x D): 352 x 225 x 98 mm (13.84 x 8.87 x 3.82")
-
With Bracket: 377 x 241 x 120 mm (14.85 x 9.47 x 4.71")
-
Mounting Type: Bracket (supplied) or panel mount
-
Weight: 3.1 kg (6.83 lbs)
Electrical
-
Max Power Consumption: 28 W
-
Recommended Fuse Rating: 5 A
-
Supply Voltage: 10–31.2 V DC
Environment
-
Humidity: IEC 60945 Damp heat 66°C at 95% relative (48 hr)
-
Operating Temperature Range: -15°C to +55°C (5°F to 131°F)
-
Shock & Vibration: 100,000 cycles of 20 G
-
Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
-
Waterproof Rating: IPX6 and IPX7
Connectivity
-
Bluetooth: Internal
-
Ethernet Ports: 2 x 5-pin yellow connector, 10/100 Mbit
-
Wi-Fi: Internal
-
NMEA 2000: 1 x Micro-C port, 1 LEN
-
NMEA 0183 Sentences Supported: Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM (AIS sentences not bridged to/from NMEA 2000)
-
Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
-
PC Connectivity: No
-
SD Card Storage: 2 MicroSD slots, max 32GB each (larger if NTFS)
-
Video: 2 x composite (RCA) inputs, optional cable P/N 000-00129-001
MFD / Functionality
-
AIS: Receive AIS via NMEA 2000 or NMEA 0183
-
Autopilot: Full control and commissioning
-
Cartography: Included C-MAP
-
Digital Switching: C-Zone, Naviop
-
GPS: Built-in 10 Hz GNSS receiver for GPS & GLONASS; supports Galileo, Beidou, QZSS, SBAS (WAAS, EGNOS, MSAS, GAGAN)
-
Internal Storage: 16 GB
-
Multimedia: via SonicHub2, FusionLink, *Sirius, **JL Audio (*USA only, **AUS/NZ only)
-
Sonar Compatibility: Two 9-pin Xsonic Sonar ports, supports CHIRP 50/200 kHz, HDI, S5100, SonarHub, Active Target™, StructureScan3D, Active Imaging™, LiveSight™, TotalScan™, LSS HD, ForwardScan™
-
Waypoints / Routes / Tracks: 6000 waypoints, 500 routes (100 max route points), 50 tracks (up to 12,000 points)
-
Weather: SiriusXM via WM-4 (USA), GRIB
GPS
-
Correction: WAAS, MSAS, EGNOS, GLONASS, Galileo, Beidou, QZSS, SBAS
-
Receiver Channels: 34
-
Position Accuracy: Horizontal 3 m (9.8 ft)
-
Time to First Fix: Cold start 50 sec, Satellite Reacquisition 5 sec
-
Update Rate: 10 Hz
Autopilot
-
Maneuvers / Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
-
Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV (*Boat type set to Sail)
Approvals
-
CE, C-Tick, EN 60950-1:2006, EN 60945:2002, EN 300 440-2 V1.4.2
Interface & Languages
-
Interface: Full multi-touch screen and full keypad control, OP50 remote controllers
-
Languages: Standard: English (US/UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish
-
Unlockable: Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic, Farsi
Warranty
Box / Weight
Product Manual
Product Warranty
Simrad Warranty
Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
