Growatt 36kW Three Phase Grid-Tie Inverter | MAC 36KTL3-XL

Description

Achieve Maximum Efficiency with the Growatt 36kW Three Phase Grid-Tie Inverter

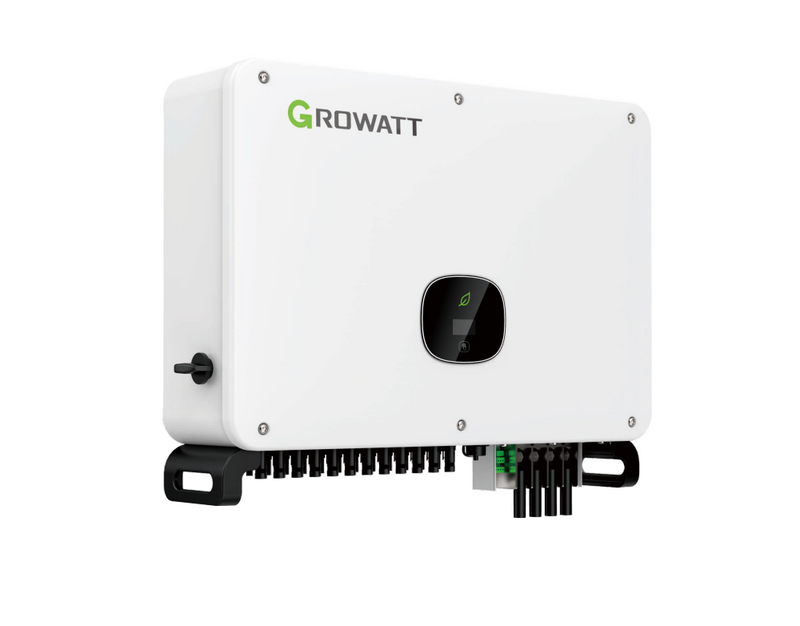

The Growatt 36kW Three Phase Grid-Tie Inverter (MAC 36KTL3-XL) delivers outstanding performance, ideal for large-scale solar installations. With an impressive efficiency of up to 98.8% and a maximum DC voltage of 1000V, this inverter maximizes energy production and enhances ROI. Featuring 3 MPPTs, it can handle complex roof designs, and its compatibility with bifacial modules further reduces the Levelized Cost of Energy (LCOE). The inverter also boasts an OLED display and touch button for a user-friendly interface and a long lifespan of over three million clicks.

Additionally, MAC has the local WiFi function for installers and service engineers for the purpose of configuration and troubleshooting.
The inverter also works with a variety of devices through communication options such as 4G, GPRS, and WiFi for remote monitoring, which can reduce onsite visits and O&M costs. System owners can also log onto Growatt's ShinePhone App to check power generation and carbon emissions reduction.

Key Features:

  • 3 MPPTsĀ for optimized power management
  • 220V Three Phase SolutionĀ for versatile system setups
  • IP65 / Outdoor RatedĀ for durability in all weather conditions
  • High Efficiency up to 98.8%Ā for maximum energy yield
  • Local WiFi ConfigurationĀ for easy setup and remote access
  • OLED Display and Touch ButtonĀ for intuitive operation
  • AC & DC Type II SPDĀ for superior protection
  • UL 1741 ListedĀ for enhanced safety and compliance

Product Specifications

Growatt 36kW Three Phase Grid-Tie Inverter | MAC 36KTL3-XL Product Specifications

Specification Details
Nominal AC Output Power 36,000 W
Max. AC Apparent Power 36,000 VA
Max. AC Output Current 52.1 A
Nominal Output Voltage 400 V, 3L/N/PE
AC Grid Frequency 50/60 Hz
Power Factor >0.99
Max. Efficiency 98.8%
European Efficiency 98.3%
MPPT Efficiency 99.9%
Max. Input Voltage 1100 V
Start Input Voltage 200 V
Nominal Input Voltage 600 V
MPPT Voltage Range 160 V – 1000 V
No. of MPP Trackers 3
Max. Input Current per MPPT 30 A
Communication Interfaces RS485 / WiFi / GPRS (optional)
Enclosure Protection Rating IP66
Operating Temperature -25°C to +60°C
Dimensions (W x H x D) 600 x 480 x 220 mm
Weight 41 kg

Product Manual

Growatt MAC 36KTL3-XL Data SheetĀ

Growatt MAC 36KTL3-XL User Manual

Product Warranty

Growatt Warranty

Service terms & conditions.

(1)Product coverage:Ā Including GrowattĀ PVĀ Inverters, Growatt Storage Inverters, GrowattĀ Smart Energy ManagementĀ Devices, Growatt Monitoring Software, EVĀ Chargers, PortableĀ PowerĀ StationĀ and Growatt BatteriesĀ and Accessories

(2)Country and Region coverage:Ā All country and regions, including China Hong Kong specialĀ administration region, Macao special administration region, Taiwan, excluding mainland ChinaĀ ONLY.Ā Warranty coverage is contingent upon the alignment of the country of sale, the country of installation, and the country of after-sales service.

(3)Warranty claim:Ā In general, serial number(S/N)must be provided in order to claim warranty.Ā Please store the original purchasing invoice/ installation documents or receipts carefully.Ā Customers need to present it for warranty claim if required.

(4)Warranty period:Ā The standard warranty period is from the date of installation on the installation certificate and no moreĀ than six months after the delivery date from Growatt.Ā A warranty extension may only be applied within a period of two years from the date of installation.

Growatt service commitment

(1) The service hotline for Growatt local service center varies, please check our local service centerĀ in your country/region. The service hotline in Shenzhen headquarter is +86 755 27471942. OurĀ service hotline offering general inquiry, technical support, etc.

(2) Service email address: service@ginverter.com. Customer is suggested to contact GrowattĀ service representative in your country/region directly.

(3) Warranty period and service mode. We offer different service solutions for different product, seeĀ details on below table


Note: If warranty period was specified on sales order, then warranty period would obey to salesĀ order.

(4) Installation and commissioning:Growatt don’t offer installation service, don’t offer onsiteĀ debugging service for monitoring device. Growatt can offer onsite commission service for big scaleĀ plant (inverter capacityļ¼ž500kw)
