MeterHome™ Multi-Part AC Energy Storage System (ESS) (10kW | 14.3 kWh)

MeterHome Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU MH-1010143E
Save 22% Save 22%
Original price $15,999.00
Original price $15,999.00 - Original price $15,999.00
Original price $15,999.00
Current price $12,500.00
$12,500.00 - $12,500.00
Current price $12,500.00
Availability:
in stock, ready to be shipped

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

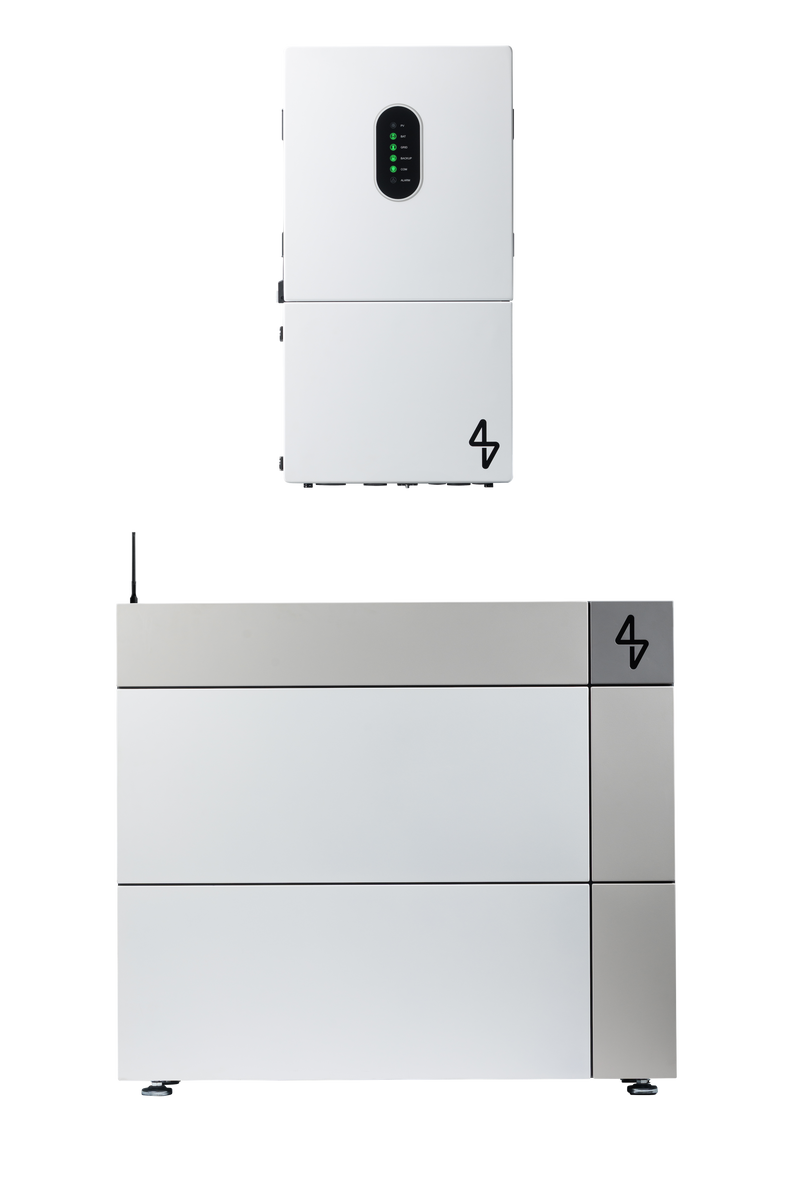

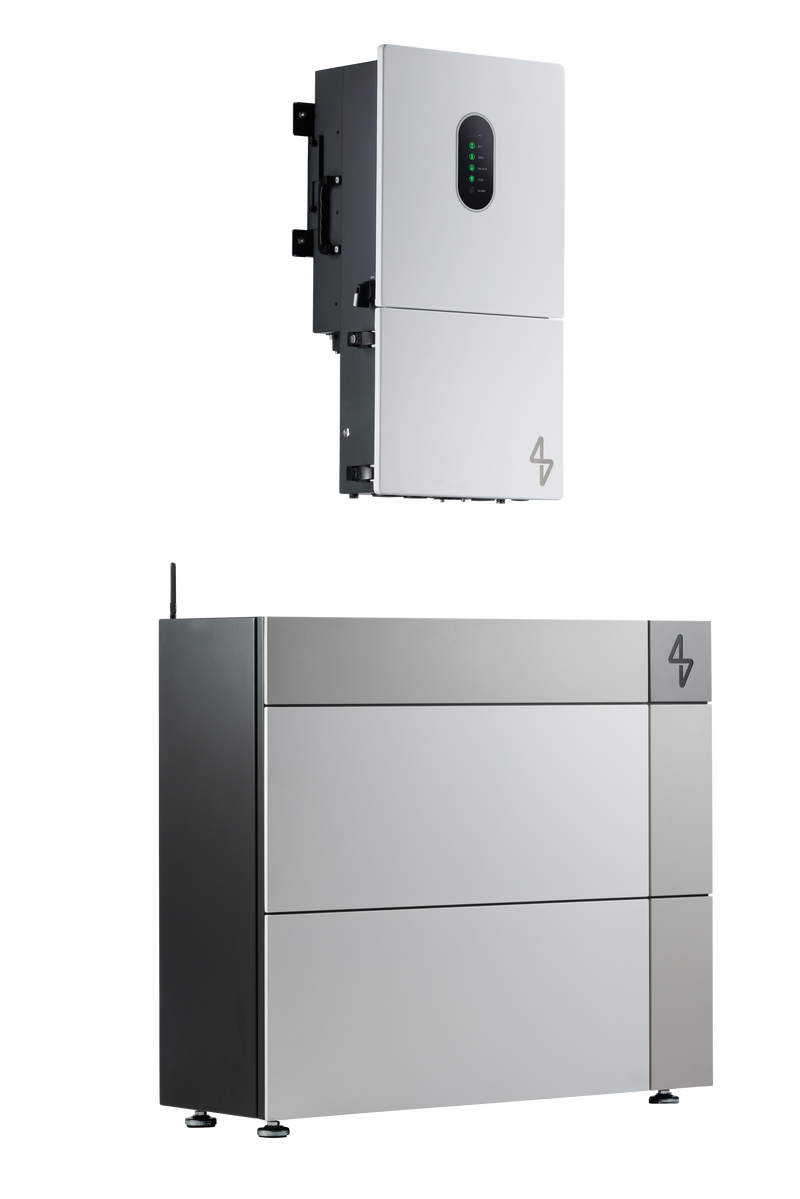

MeterHome™ Multi-Part AC Energy Storage System (ESS) (10kW | 14.3 kWh)

MeterHome’s energy storage system is designed to fit your life.

Fully compatible with the grid, solar, and generators, MeterHome's safe chemistries and flexible connections maximize energy savings and performance through blackouts and whatever life brings your way.

More power. More features. More value.

Built to fit your life.

Our advanced battery backup systems are stackable. Up to 8 battery enclosures and 9 inverters, delivering 114.4kW peak capacity and 90kW continuous power—ensuring your home stays on, no matter what.

Product Specifications

Inverter Tech Specifications

Download Spec Sheet
Mechanical Specs
Weight Approximation 88 lbs. (40 kg)
Dimension (W x D x H) 16.5" x 9.4" x 31.5" (420mm x 240mm x 800mm)
Mounting Wall bracket
Cooling Method Fan Cooling
Ingress Protection Degree NEMA 3R
Environment Specs
Operating Temperature Range -20°C to 60°C (-4°F to 140°F)
Maximum Operation Altitude max 6,562ft (2000m)
Relative Humidity 0~100%
Ingress Protection Degree NEMA 3R
Performance Specs
Nominal AC Output (W) 10,000
Maximum PV Input Power (W) 15,000
Maximum Input Current per MPPT (A) 30/22/22
Nominal Grid Voltage (Vac) 120/240V (Split phase) / 208V (2/3 phase)
Nominal Grid Frequency (Hz) 50/60
Rated PV Input Voltage (Vdc) 600
Start Up DC Voltage (Vdc) 90
MPPT Voltage Range (Vdc) 70-540
Maximum PV Circuit Current (A) 44+44
Number of MPPT 3
String per MPPT 2/2/2
PV Connection Way Terminals
Peak Power (off grid) 2 times of rated power, 10s
Power Factor 0.8 leading to 0.8 lagging
DC Injection Current (mA) THD <3% (Linear load <1.5%)
Maximum Efficiency (PV to AC) 98.0%
Maximum Efficiency (BAT to AC) 94.5%
CEC. Efficiency 96.5%
Communication Interface CAN(for BMS), DRM/RS485 (for meter), RS485
Safety Certification UL1741, CSA C22.2, UL1699B
Grid Regulation UL1741SB, IEEE1547 :2018, HECO SRD 2.0
EMC FCC Part 15 Class B
Protection Category Class I
Connects up to 9 Inverters
*Specifications subject to change. Contact Meter for the latest details.

Battery Enclosure Tech Specifications

Mechanical Specs
Dimension (W x D x H) 39.6" x 16" x 34.5" (1006mm x 406mm x 876mm)
Weight Approximation 463 lbs. (210 kg)
Installation Style Indoor, Floor Mounted
Cooling air-cooled
Environment Specs
Humidity 5%-95%
Maximum Operation Altitude max 6,562ft (2000m)
Enclosure Protection Rating IP 44
Performance Specs
Energy Configuration (kWh) 14.3
Maximum Charging / Discharging Current (A) 150
Battery Operating Voltage (V) 40-58.4
Battery Chemistry LiFePO4
Charging Temperature Range 0°C to 35°C (32°F to 95°F)
Discharging Temperature Range -30°C to 35°C (-22°F to 95°F)
Cycle Life 25°C (77°F) 8000 cycles, 70% SOH / 45°C (113°F) 3000 cycles, 70% SOH
Safety Certification UL60730, UL1973, UL9540, UL9540A, UN38.3
Warranty 10 years (Standard)
Connects up to 8 Battery Enclosures

Product Manual

MeterHome_BESS_User_Manual

Quick Install Guide

MeterHome Product Registration Form

App Guide

Product Flyer

Specification Sheet

Product Warranty

MeterHome Limited Warranty

Product FAQs

How is Meter different from other batteries out there?

MeterHome batteries are proudly designed, built and tested in the United States. Every battery is fully self-monitored and remotely optimized for peak efficiency by our professional, US-based control center. In the event of errors or performance issues, MeterHome engineers will either perform automatic remote maintenance or dispatch a technician for timely on-site service.

When will I receive my tax credit and state rebates?

The federal tax credit is applied when you file your tax return. State rebates may take up to six months after project completion. Consult your tax professional for more details.

Are shipping, permitting and installation included?

Shipping, permitting and installation fees are subject to the policies set forth by each distributor and the laws governing each municipality.

What type of battery is inside?

We use Lithium Iron Phosphate (LiFePO4) batteries. MeterHome is UL-listed for its adherence to strict safety regulations. In addition to their superior safety advantages, LiFePO4 batteries are free from nickel, magnesium and cobalt, toxic substances with significant humanitarian and ethical concerns.

Can my battery be used every day?

Yes, our batteries are designed for everyday use.

Is MeterHome safe?

Yes. We use Lithium Iron Phosphate (LiFePO4) batteries. MeterHome is UL-listed for its adherence to strict safety regulations. LiFePO4 exhibits greater thermal stability and a significantly higher thermal runaway temperature. These are safer, tougher, more durable batteries.

Will it work with existing batteries from other companies?

MeterHome batteries are designed to operate exclusively with our MeterHome batteries. However, your MeterHome system will be compatible with most existing solar setups and generators.

How do I prolong the life of my battery?

We do not restrict the depth of discharge if used daily. If not used daily, we suggest the resting stage be set between 40% and 60%. In addition, MeterHome batteries have built-in safety features to prevent damage.

What is the warranty?

Each MeterHome battery comes with a 10-year warranty

Can I participate in a program with my utility company where they deduct my energy contribution to the grid from my electric bill or otherwise compensate me?

Yes, MeterHome batteries support participation in utility financial benefit programs. Please contact your local utility company to inquire about their specific programs and offerings
