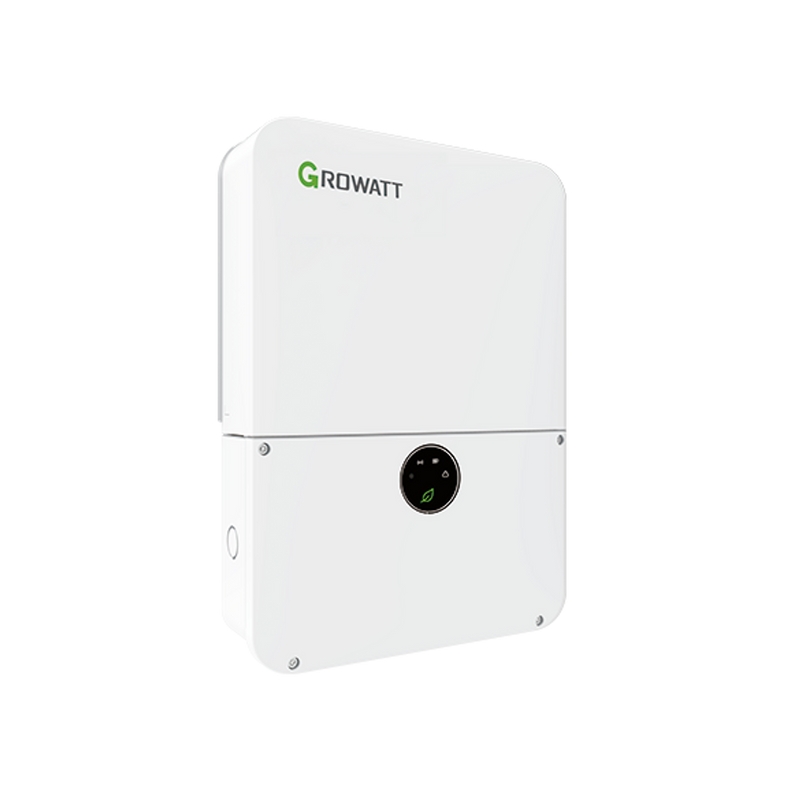

Growatt 3.8kW Grid-Tie Inverter | MIN 3800TL-XH-US

Description

Key Features:

Cutting-Edge Grid-Tie:

  • 3800W nominal output.
  • High 500 VDC input
  • 2 MPP trackers, 2 strings per MPP tracker.
  • Up to 98.4% efficiency!

Quality Design:

  • –13°F to +140°F operating temperature.
  • Natural convection cooling.
  • NEMA4X (IP65) rated.
  • 4G/Wi-Fi communication with APP, IoT integrated cloud and monitoring.
  • IOS, Android & Windows Apps.
  • UL 1741 certified
  • Rapid shutdown capable, RFCI protection.
  • Anti-islanding protection.

Product Specifications

Growatt 3.8kW Grid-Tie Inverter | MIN 3800TL-XH-US Product Specifications

Specification Details
Rated Output Power 3,800 W
Maximum DC Input Power 7,600 W
Nominal DC Voltage 360 V
Maximum DC Voltage 600 V
MPPT Configuration 2 MPPTs with 2 strings per MPPT
Maximum Efficiency 98.5%
CEC Weighted Efficiency 97% at 240 V
AC Output Voltage 208 V / 240 V (selectable)
AC Output Frequency 50 / 60 Hz
Operating Temperature Range –13°F to +140°F (–25°C to +60°C)
Cooling Method Natural convection (fanless design)
Enclosure Rating NEMA 4X (IP65)
Dimensions (W × H × D) 569 mm × 400 mm × 170.5 mm
Weight 17.4 kg (38.36 lbs)
Warranty 10 years
Hybrid Operation Grid-tied and battery-ready
Battery Compatibility DC-coupled and AC-coupled batteries
Energy Management Modes Self-consumption, zero export, TOU scheduling, limited off-grid
Safety Features Rapid Shutdown (RSD), AFCI, RGM meter support
Monitoring & Communication Built-in WiFi and 4G/LAN, Growatt ShinePhone app
Compliance UL1741SA/SB, CA Rule 21, HECO
