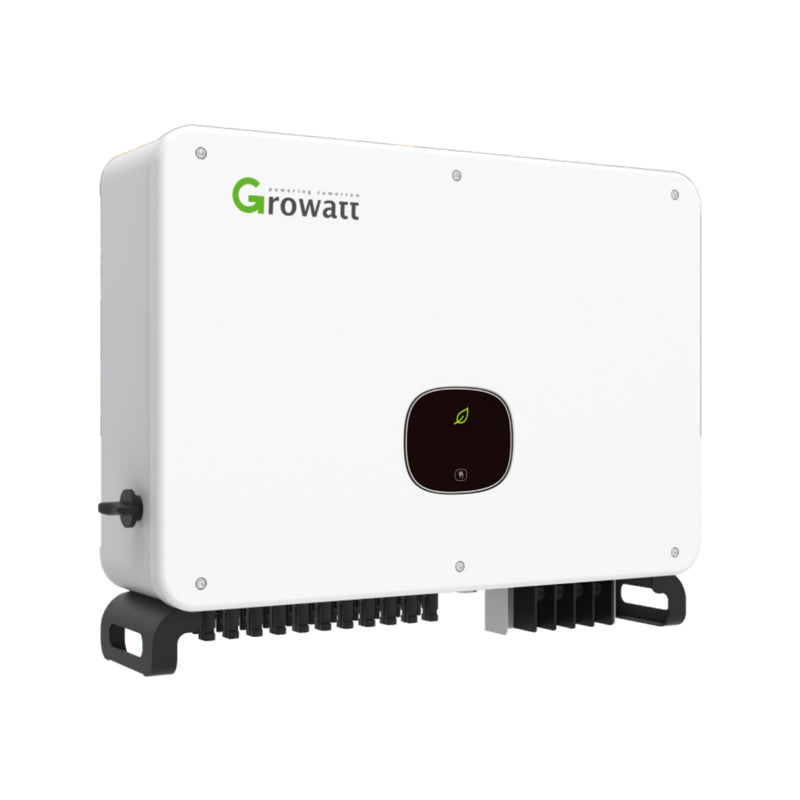

Growatt 60kW Three Phase Grid-Tie Inverter | MAC60KTL3-X MV

Description

Maximize Your Energy Potential with the Growatt 60kW Three Phase Grid Tie Inverter

The Growatt 60kW Three Phase Grid-Tie Inverter (MAC60KTL3-X MV) offers unparalleled performance for commercial solar installations. With a remarkable 60,000W capacity and three MPPTs, this inverter provides high-efficiency energy conversion, ensuring your system operates at peak performance. Designed for both reliability and safety, it features a fuseless design, an IP65 rating for durability, and compliance with CE standards. The inverter is equipped with smart diagnostics, making it easier than ever to monitor your solar system’s health, while its wide voltage range allows for flexibility across different applications.

Key Features:

  • 3 MPPTsĀ for efficient power management
  • Smart DiagnosisĀ for quick fault detection
  • High Efficiency up to 98.8%Ā for maximum energy output
  • Local WiFi ConnectionĀ for seamless monitoring
  • OLED display and touch buttonĀ for easy interface and control
  • AC and DC Type II SPDĀ for enhanced protection
  • Data Storage up to 25 yearsĀ for long-term monitoring and analysis
  • 2-in-1 connection embeddedĀ for simplified setup

Product Specifications

Growatt 60kW Three Phase Grid-Tie Inverter | MAC60KTL3-X MV Product Specifications

Specification Details
Nominal Power Output 60,000W (60kW)
Max. DC Voltage 1100V
Nominal DC Operating Voltage 600V
MPPT Voltage Range 200V – 1000V
Max. Input Current per MPPT 30A
Number of MPPTs / Strings per MPPT 6 / 2
AC Nominal Output Power 60kW
Max. AC Apparent Power 66kVA
AC Voltage Range 277/480V, 3-phase
Max. AC Output Current 91A
Frequency Range 50/60Hz
Max. Efficiency 98.8%
Euro Efficiency 98.4%
Protection Rating IP66
Cooling Method Intelligent Smart Cooling (fan)
Communication RS485, WiFi / GPRS (optional), PLC
Weight ~88 kg (194 lbs)
Dimensions (W Ɨ H Ɨ D) 800 Ɨ 630 Ɨ 310 mm (31.5" Ɨ 24.8" Ɨ 12.2")
Warranty 5 yearsĀ

Product Manual

Growatt Data SheetĀ

Growatt User Manual

Product Warranty

Growatt Warranty

Service terms & conditions.

(1)Product coverage:Ā Including GrowattĀ PVĀ Inverters, Growatt Storage Inverters, GrowattĀ Smart Energy ManagementĀ Devices, Growatt Monitoring Software, EVĀ Chargers, PortableĀ PowerĀ StationĀ and Growatt BatteriesĀ and Accessories

(2)Country and Region coverage:Ā All country and regions, including China Hong Kong specialĀ administration region, Macao special administration region, Taiwan, excluding mainland ChinaĀ ONLY.Ā Warranty coverage is contingent upon the alignment of the country of sale, the country of installation, and the country of after-sales service.

(3)Warranty claim:Ā In general, serial number(S/N)must be provided in order to claim warranty.Ā Please store the original purchasing invoice/ installation documents or receipts carefully.Ā Customers need to present it for warranty claim if required.

(4)Warranty period:Ā The standard warranty period is from the date of installation on the installation certificate and no moreĀ than six months after the delivery date from Growatt.Ā A warranty extension may only be applied within a period of two years from the date of installation.

Growatt service commitment

(1) The service hotline for Growatt local service center varies, please check our local service centerĀ in your country/region. The service hotline in Shenzhen headquarter is +86 755 27471942. OurĀ service hotline offering general inquiry, technical support, etc.

(2) Service email address: service@ginverter.com. Customer is suggested to contact GrowattĀ service representative in your country/region directly.

(3) Warranty period and service mode. We offer different service solutions for different product, seeĀ details on below table


Note: If warranty period was specified on sales order, then warranty period would obey to salesĀ order.

(4) Installation and commissioning:Growatt don’t offer installation service, don’t offer onsiteĀ debugging service for monitoring device. Growatt can offer onsite commission service for big scaleĀ plant (inverter capacityļ¼ž500kw)
