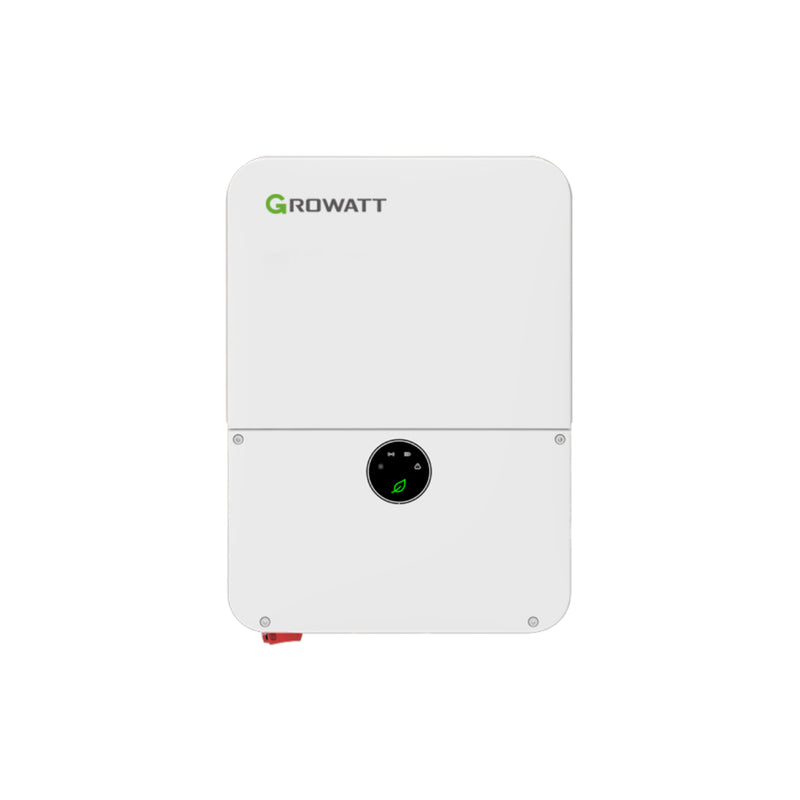

Growatt 7.6kW Grid-Tie Inverter | MIN 7600TL XH-US

Description

Key Features:

Cutting-Edge Grid-Tie:

  • 7600W nominal output.
  • High 500 VDC input!
  • 3 MPP trackers, 2 strings per MPP tracker.
  • Up to 98.5% efficiency!

Quality Design:

  • –13°F to +140°F operating temperature.
  • Natural convection cooling.
  • NEMA4X (IP65) rated.
  • 4G/Wi-Fi communication with APP, IoT integrated cloud and monitoring.
  • IOS, Android & Windows Apps.

From purchase to installation and beyond, our USA-based team offers lifetime support—contact us with any questions.

Product Specifications

Growatt 7.6kW Grid-Tie Inverter | MIN 7600TL XH-US Product Specifications

Specification Details
Model MIN 7600TL-XH-US
Nominal Output Power 7,600W (7.6kW)
Maximum DC Input Voltage 600V
MPPT Voltage Range 50V – 550V
Number of MPPTs 3 (2 strings per MPPT)
Maximum Efficiency 98.5%
AC Output Voltage 240V (Single-phase)
AC Output Frequency 50/60Hz
AC Output Power Factor >0.99
Cooling Method Natural Convection
Protection Rating NEMA 4X (IP65)
Communication Ports RS485, WiFi/LAN (optional)
Battery Compatibility Compatible with Growatt ARO/APX or SYN batteries
Backup Power Capability Yes (Whole-home backup with SYN 200-XH-US)
Safety Features AFCI, RSD, Anti-islanding, Ground Fault, Grid Monitoring, Type III AC Surge Protection
Certifications UL1741SA/SB, UL1741, UL9540, CA Rule 21, HECO
Dimensions (W x H x D) 15.8" x 25.2" x 7.4" (400 x 638 x 187 mm)
Weight 33 lbs (15 kg)
Warranty 10 years
