Canadian Solar EP Cube Battery Module | 3.33 kWh

Canadian Solar Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU 1579010
Original price $1,750.00 - Original price $1,750.00
Original price
$1,750.00
$1,750.00 - $1,750.00
Current price $1,750.00
Availability:
in stock, ready to be shipped

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer youĀ the bestĀ prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note,Ā this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than oursĀ before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

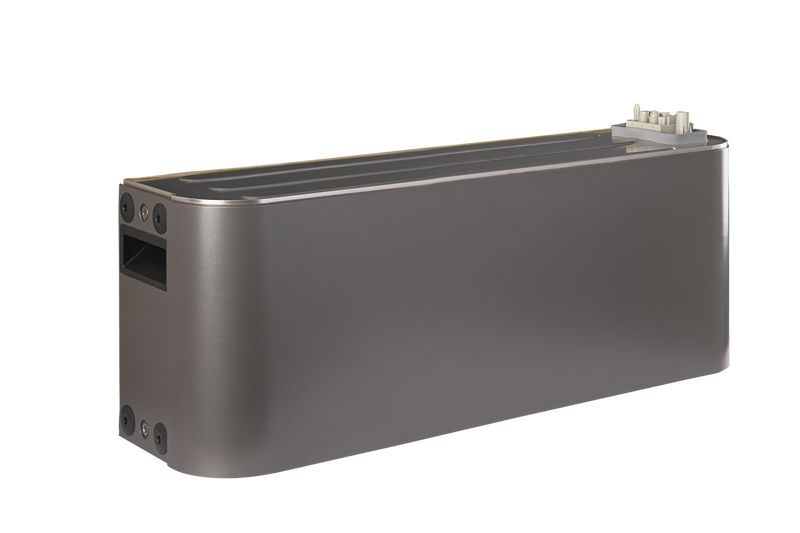

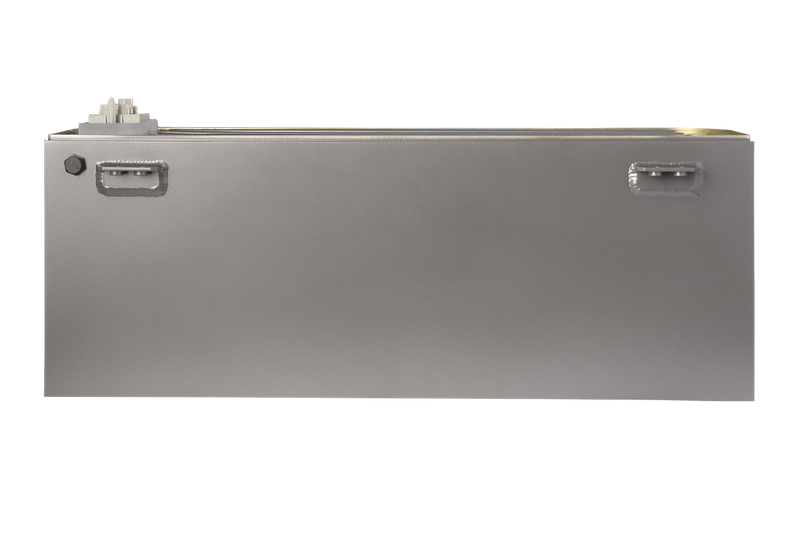

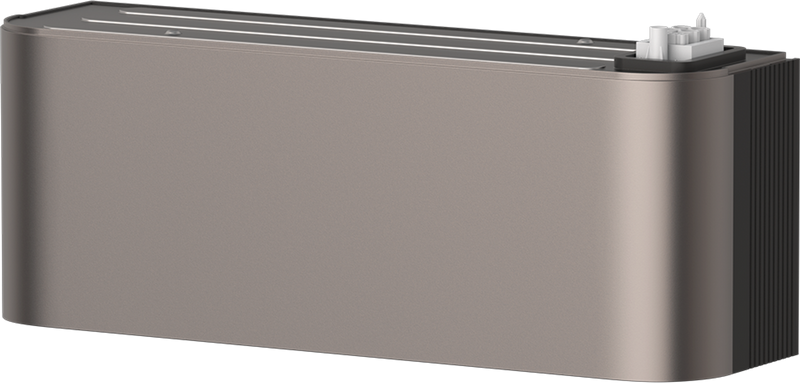

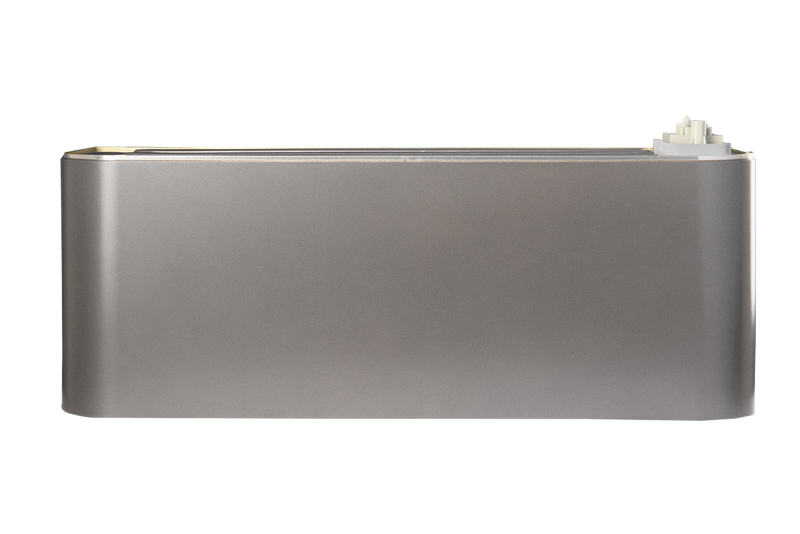

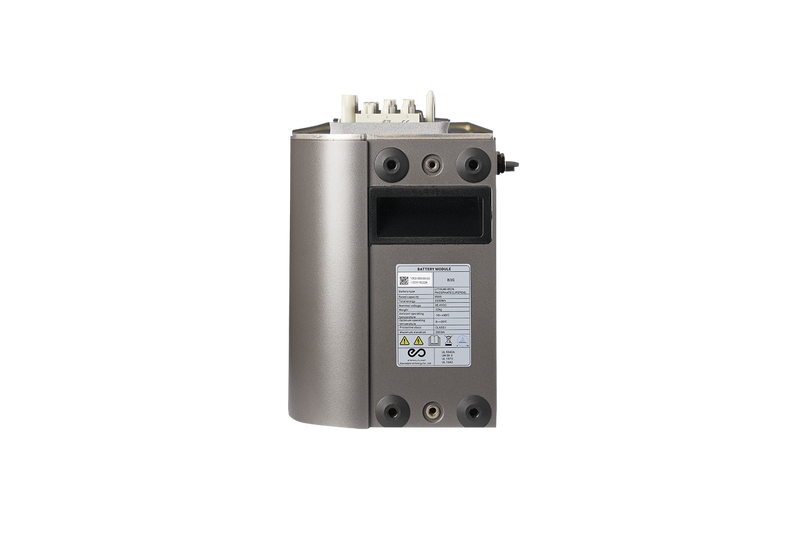

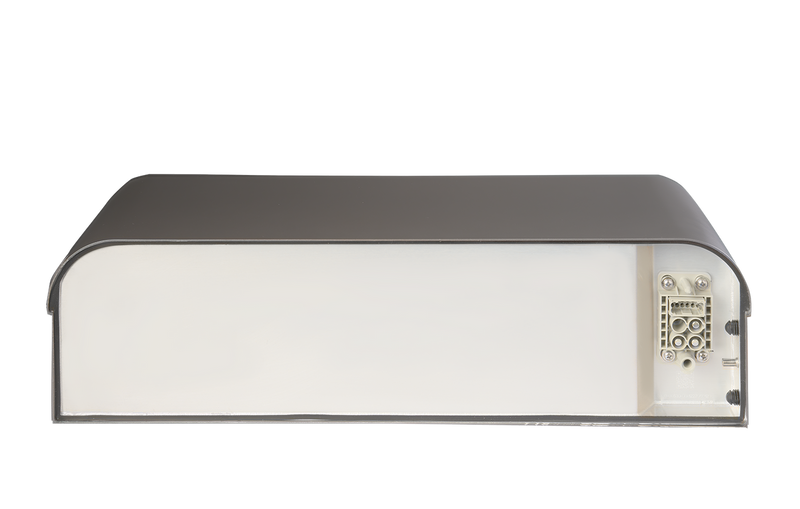

Canadian Solar EP Cube Battery Module

Description

Canadian Solar EP Cube Battery Module stackable design infographicCanadian Solar EP Cube Battery Module 10-year warranty

The EP Cube's modular energy storage units are designed to provide reliable, cost-effective power to your home. With capacity options ranging from 9.9kWh to 19.9kWh per unit, these lithium iron phosphate cells have undergone UL 9540A unit-level thermal runaway test certification, ensuring maximum safety and durability. These batteries are easy to install and transport, making them a great choice for those who want to reduce their dependence on the grid and increase their energy independence.

Product Specifications

Canadian Solar EP Cube Battery Module Product Specifications

Category Specification
Battery Type Lithium Iron Phosphate (LiFePOā‚„)
Capacity per Module 3.33 kWh
Maximum Modules per System 6
Total System Capacity Up to 19.9 kWh
Battery Module Weight 70 lbs (32 kg)
Thermal Runaway Safety UL 9540A certified
Hybrid Inverter Options NA510G, NA510W, NA613G, NA613W, NA716G, NA716W, NA720G
Maximum AC Output 7.6 kW
MPPT Configuration 2 MPPTs
MPPT Input Current 16 A per MPPT
MPPT Voltage Range 80–550 VDC
Nominal Grid Voltage 240 VAC
Battery Round-Trip Efficiency 93.93%
Enclosure Rating NEMA 4X
Noise Level <50 dB at 1 meter (front side)
Mounting Options Floor or wall mount
Dimensions (3 Modules) 600 x 1210 x 220 mm (23.62" x 47.64" x 8.66")
System Weight (3 Modules) 130 kg (286.6 lbs)
Maximum Elevation 3,000 m (9,843 ft)
Operating Temperature Range -10°C to 50°C (14°F to 122°F)
Optimal Operating Temperature 0°C to 30°C (32°F to 86°F)
Battery Capacity Warranty 10 years or 6,000 cycles (whichever comes first)
System Warranty >80% capacity retention over 10 years
Communication Wi-Fi and Ethernet connectivity
Monitoring EP Cube App for real-time monitoring
Firmware Updates Over-the-Air (OTA) upgrades

Product Manual

Canadian Solar EP Cude Data SheetĀ

Canadian Solar EP Cude Installation Guide

Product Warranty

Canadian Solar EP Cube Warranty

Product FAQ's

N/A
