Simrad RF40 Rudder Feedback Unit w/15M Cable [000-14439-001]

Simrad Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU OGL-73988
Original price $0.00 - Original price $0.00
Original price $0.00
$363.00
$363.00 - $363.00
Current price $363.00
Availability:
Low stock

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

We offer a 30 day return period for this product from date of receipt. Return Merchandise Authorization (RMA) numbers are required for all returns. Returned products must be complete in the original packaging and resalable. Returns are subject to a restocking fee, if the item(s) is not in brand new condition-including original packaging. Free shipping charges do not apply for exchanges

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Simrad RF40 Rudder Feedback Unit w/15M Cable [000-14439-001]

Description

Rudder Feedback for Smooth and Accurate Steering

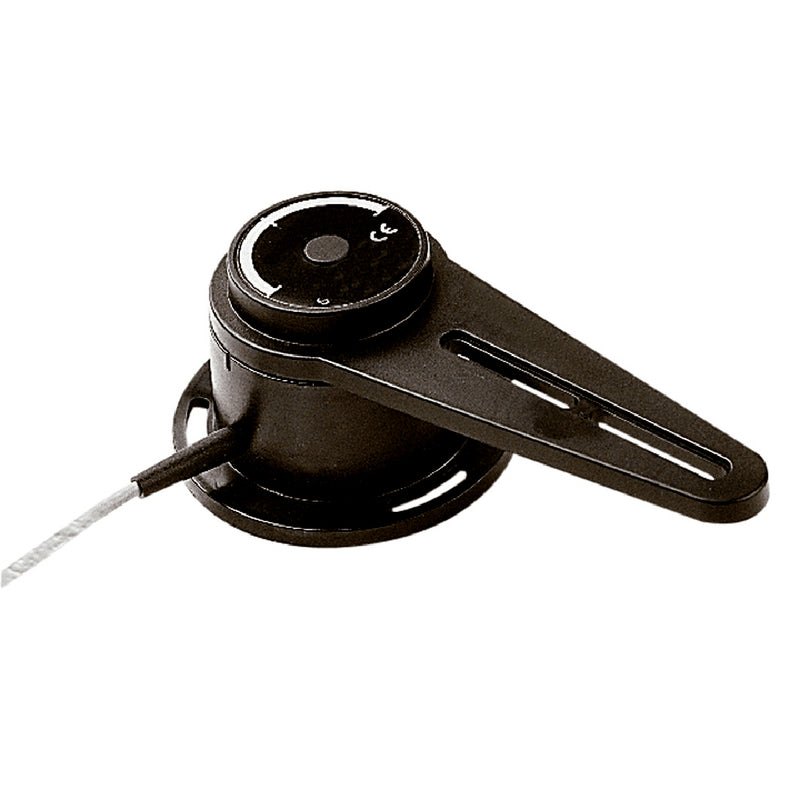

The RF40 is a medium-duty rudder feedback unit for use with NAC-1 and NAC-2 autopilot systems. Rudder feedbacks measure and report actual rudder angle to your autopilot computer, enabling precise rudder control for smooth and accurate steering.

Direct Connection for Simple Plug-and-Play Installation

The RF40 is designed for direct connection to NAC-1 and NAC-2 autopilot computers, with variable voltage output and an attached 15 metre (49 foot) cable with plug-and-play connector. The connector can be easily removed for use in other applications. Its extended cable and direct connection make the RF40 an ideal alternative to NMEA 2000® connected sensors, such as the RF25, in situations where it is impractical or otherwise unnecessary to extend a vessel’s NMEA 2000® network within reach of the rudder.

Product Specifications

Simrad RF40 Rudder Feedback Unit w/15M Cable [000-14439-001] Product Specifications

Specifications:

Physical

  • Type: Parts

  • Weight: 1.1 lbs (0.5 kg)

  • Dimensions: 99 x 65 x 177 mm (3.9 x 2.6 x 7.0 inches)

  • Cable Length: 15 m (49 ft) with 3-pin connector

  • Mounting: Horizontal, vertical, or upside-down

  • Compass Safe Distance: 1 m (3.3 ft)

  • Material: Arnite T06 200 PBT

  • Transmitter Link: Stainless, 345 mm (13.6 inches) with 2 ball joints

  • Box Dimensions: 3"H x 5"W x 16"L

  • Box Weight: 1.9 lbs

  • UPC: 9420024172070

Electrical & Output

  • Supply Voltage: 5 V DC

  • Output Signal: 0–5 V DC (variable voltage)

  • Resistance: 10 kΩ

  • Rudder Angle Range: ±120°

  • Accuracy: ±0.25° within ±5°, otherwise ±0.5°

  • Repeatability: ±0.1°

Environment

  • Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)

  • Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)

  • Waterproof Rating: IP56

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A
