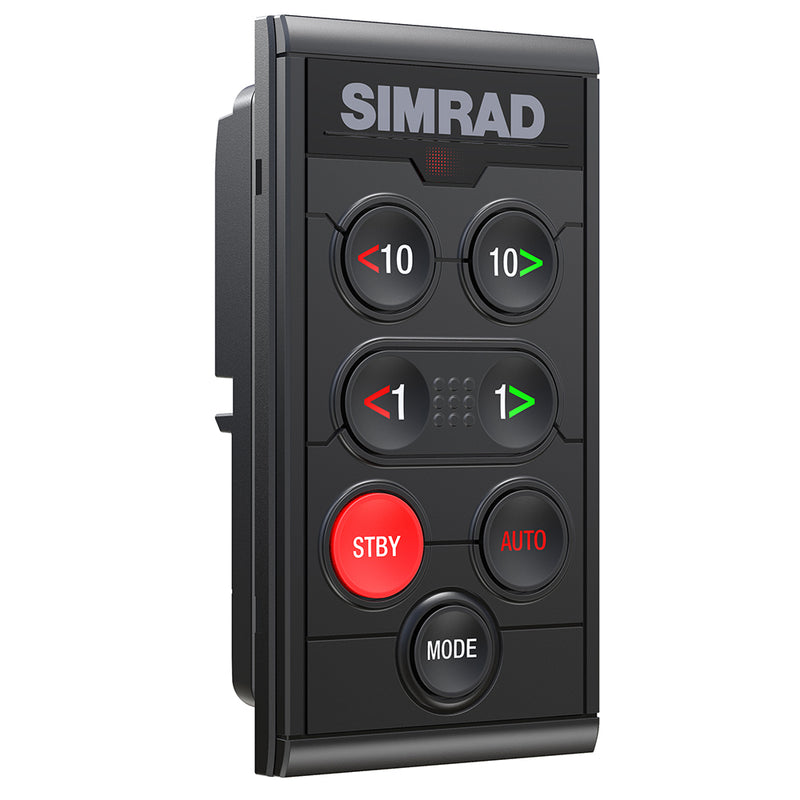

Simrad OP12 Autopilot Controller [000-13287-001]

Description

The OP12 wired remote seamlessly integrates with Simrad autopilot systems to provide intuitive mode control, course adjustments, and power steering. Designed to complement the low-profile design of Simrad glass bridge instruments and displays, this remote can be combined with the IS42 Colour Instrument Display to create a standalone autopilot controller, or used as a dedicated autopilot keypad for GO, NSS and NSO evo2 multifunction displays.

Features:

  • Intuitive operation
  • Easy installation
  • Combine with an IS42 display for full autopilot control
  • Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
  • Use alongside NSS & NSO evo2 MFD's as an additional Autopilot Controller
  • Low-profile glass helm design
  • Low power consumption
  • Certified NMEA 2000Ā® connectivity

Product Specifications

Simrad OP12 Autopilot Controller [000-13287-001] Product Specifications

Specifications:

    Physical

    • Compass Safe Distance: 0.5 m (20 inches)

    • Dimensions W x H x D: 204 x 190 x 57 mm (8.1 x 7.5 x 2.2")

    • Mounting Type: Bulkhead

    • Weight: 0.7 kg (1.6 lbs)

    • Additional Dimensions: 60 x 115 x 32 mm (2.4" x 4.5" x 1.3")

    • Additional Weight: 0.12 kg (0.3 lbs)

    Electrical

    • Power Consumption Max: 750 W

    • Power Consumption Typical: 100 mA + Drive load

    • Power Consumption (Additional Unit): 1.4 W

    • Recommended Fuse Rating: Internal fuse 30A (Slow)

    • Supply Voltage: 12/24 VDC ±30/-10%

    • Network Load: 3 LEN

    Environment

    • Operating Temperature Range: -15°C to +55°C (5°F to 131°F)

    • Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)

    • Waterproof Rating: IPx2 / Additional Unit: IPx7

    • Humidity: Up to 95% RH

    Connectivity

    • NMEA 0183 Sentences Supported: Input – AAM, ACK, APB, BOD, BWC, DPT, GGA, GLL, HDG, HDT, HSC, RMA, RMB, RMC, ROT, THS, TNT, VBW, VHW, VLW, VTG, ZDA; Output – HDG (10Hz) or HDT (10Hz), RSA (5Hz)

    • NMEA 2000 Connectivity: 1 x CAN terminal, 1 LEN

    Autopilot

    • Compass Sensor Support: NMEA 2000, NMEA 0183

    • Drive Output: 12/24 VDC; Rev. motor control 30A, 50A peak (1 sec); Solenoid control 10A (min. 10mA)

    • Engine/Drive Systems Integration: Reversible pump/motor, Solenoid valve on/off

    • Rudder Sensor Support: RF300, RF45X, RF25N, RF70, VRF

    Shipping & Packaging

    • Type: Parts

    • Box Dimensions: 5"H x 6"W x 9"L

    • Weight: 0.8 lbs (Additional Unit)

    • Original Box Weight: 3.2 lbs

    • UPC: 9420024155127 / Original UPC: 9420024154397

    Warranty

    • 2 years

    Product Manual

    N/A

    Product Warranty

    Simrad Warranty

    Product FAQ's

    N/A
