Simrad NAC-3 VRF Core Pack - NAC-3, Precision-9 & N2k Starter Kit [000-13338-001]

Description

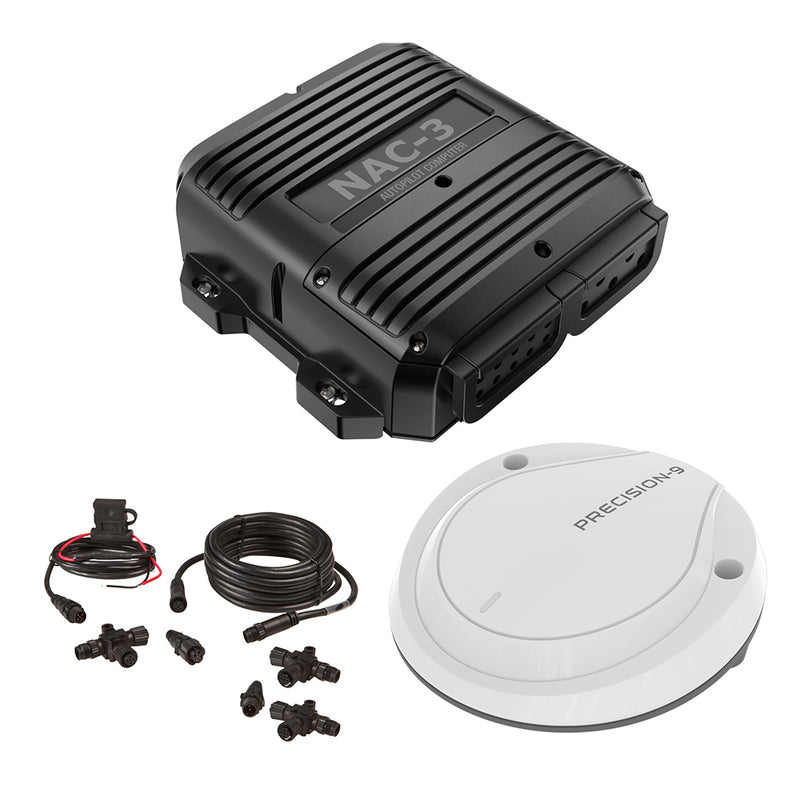

Comprising of the high-current NAC-3 Autopilot computer, Precision-9 compass & N2k Starter Kit.

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M(33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Precision-9 Compass
The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Features:

  • Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
  • Heading and ROT calculated using sensor data from 9 axes of rotation and motion
  • Accurate and reliable solid-state sensor technology
  • Heading accuracy of ±2° after calibration
  • Easily adjustable mounting bracket allows bulkhead or up-mast installation
  • IPX7 waterproof. Best in class.
  • Simple installation with a single NMEA 2000® connection

Product Specifications

Simrad NAC-3 VRF Core Pack - NAC-3, Precision-9 & N2k Starter Kit [000-13338-001] Product Specifications

Specifications:

    Physical

    • Dimensions W x H x D: 340 x 100 x 250 mm excluding connectors (378 mm including connectors) / 13.4 x 3.9 x 9.8 in excluding connectors (14.8 in including connectors)

    • Max Dimensions (L x W x H): 211 x 196 x 65.5 mm / 8.31" x 7.72" x 2.58"

    • Mounting Type: Bulkhead

    • Construction: Plastic

    • Color: Black

    • Weight: 0.7 kg (1.6 lbs)

    Electrical

    • Local Power Supply: 12/24 V DC +10–30%

    • Power Consumption Max: 85 W

    • Power Consumption Typical: 23 W

    • Recommended Fuse Rating: 5 A

    • Reversible Motor Control of Rudder: Max continuous load 30A, peak 50A for 1 s

    • On/Off Solenoid Control of Rudder: 12/24V DC, common, load range 10 mA to 10 A, off current <1 mA

    • Engage Output for Bypass/Clutch: 12/24V DC, min 10 mA, max 3 A

    Connectivity

    • NMEA 2000 Load Equivalent Number (50 mA): 1

    • NFU Port/Starboard Input & Mode Indicator Output: External open/close contact, common return, max contact current 30 mA

    • Mode Input: External open/close or pulse contact for SYSTEM SELECT, common return, close to activate, max contact current 30 mA

    • External Alarm Output for Buzzer/Relay: Max 100 mA, voltage level as local supply

    • IEC 61162-1 Input (NMEA0183 In): 1 channel

    • IEC 61162-1 Output (NMEA0183 Out): 1 channel

    • IEC 61162-1 Speed: 4.8 & 38.4 kbaud

    • NMEA 2000: Certified (pending)

    Environment

    • Temperature, Operation: 0 to +55°C

    • Temperature, Storage: -32 to +70°C

    • Protection: IPx7

    • Humidity: Up to 95% RH at 35°C non-condensing

    Autopilot / Rudder

    • Rudder Angle Frequency Input: 15V, 1.4 to 5 kHz, resolution 20 Hz/° OR NMEA2000

    Other

    • Steering Type: Hydraulic

    • Box Dimensions: 10"H x 10"W x 16"L

    • Weight (shipping): 7 lbs

    • UPC: 9420024155660

    • Warranty Period: 2 Years
