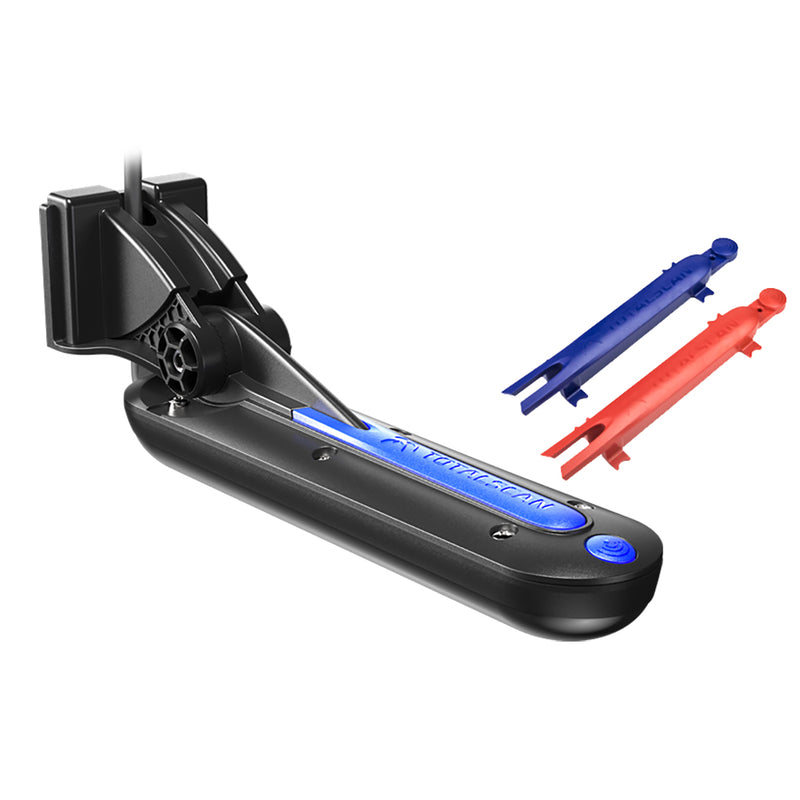

Lowrance TotalScan Skimmer Transom Mount Transducer [000-12568-001]

Lowrance Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU OGL-58340
Save 12% Save 12%
Original price $343.00
Original price $343.00 - Original price $343.00
Original price $343.00
Current price $301.99
$301.99 - $301.99
Current price $301.99
Availability:
Low stock

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

We offer a 30 day return period for this product from date of receipt. Return Merchandise Authorization (RMA) numbers are required for all returns. Returned products must be complete in the original packaging and resalable. Returns are subject to a restocking fee, if the item(s) is not in brand new condition-including original packaging. Free shipping charges do not apply for exchanges

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Lowrance TotalScan Skimmer Transom Mount Transducer [000-12568-001]

Description

An all-in-one transducer that matches proven CHIRP sonar with StructureScan® HD and DownScan Imaging™ technology, making it possible to target fish and search for fish-holding structure with the same transducer.

The TotalScan transducer features multiple mounting options and is fully compatible with displays featuring integrated StructureScan HD, like Lowrance HDS Gen3, Elite-7 Ti, Elite-5 Ti, Simrad NSS evo2, and NSO evo2.

The TotalScan transducer is one of four new transducers that feature the new xSonic (9-pin black) 24ft cable.

An adapter cable will be available to connect xSonic (9-pin black) transducers to legacy displays that have a 7-pin blue connector.

Note: When a TotalScan transducer is connected to a legacy display with a 7-pin blue connector, the side-scanning feature will not function.

Features

  • All-in-one transducer featuring CHIRP Sonar, StructureScan HD and DownScan Imaging
  • Also supports 83/200kHz Broadband Sounder frequencies
  • Supports Medium and High CHIRP Sonar frequencies
  • Supports 455/800kHz StructureScan HD frequencies
  • Multiple mounting options
  • Fully compatible with Lowrance HDS Gen3, Elite-7Ti, Elite-5Ti, Simrad NSS evo2, and NSO evo2
  • Compatible with select legacy displays (Requires xSonic transducer adapter - side-scanning sonar not supported on legacy products)

Product Specifications

Lowrance TotalScan Skimmer Transom Mount Transducer [000-12568-001] Product Specifications

Feature Specification / Details
Product Name Lowrance TotalScan Skimmer Transom Mount Transducer
Model / SKU 000‑12568‑001
Temperature Yes
Speed Included No
Pins 9
Mounting Style Transom
Imaging Standard / Down / Side
CHIRP Medium / High
Compatibility HOOK, Elite, and Reveal series fishfinders
Material / Housing Marine-grade plastic
Cable Length 20 ft
Water / Weather Protection Waterproof
Box Dimensions 3″ H × 10″ W × 13″ L
Weight 3.25 lbs
UPC 9420024145265

Product Manual

TotalScan Installation Manual

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
