Lowrance PTI-WBL Ice Transducer w/Blue Connector [000-0106-94]

Lowrance Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU OGL-83373
Save 8% Save 8%
Original price $83.00
Original price $83.00 - Original price $83.00
Original price $83.00
Current price $75.99
$75.99 - $75.99
Current price $75.99
Availability:
Low stock

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

We offer a 30 day return period for this product from date of receipt. Return Merchandise Authorization (RMA) numbers are required for all returns. Returned products must be complete in the original packaging and resalable. Returns are subject to a restocking fee, if the item(s) is not in brand new condition-including original packaging. Free shipping charges do not apply for exchanges

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Lowrance PTI-WBL Ice Transducer w/Blue Connector [000-0106-94]

Description

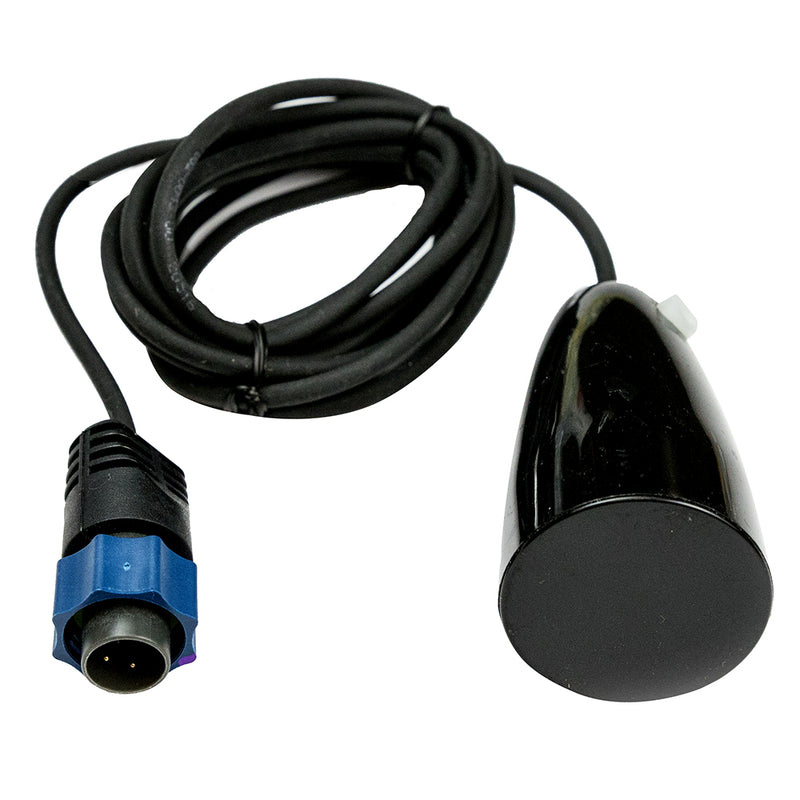

The Lowrance PTI‑WBL Ice Transducer with Blue Connector (Model 000‑0106‑94) is an 83/200 kHz blue connector ice transducer with a 7-foot cable, designed specifically for ice fishing. It provides reliable standard sonar imaging through ice, ensuring accurate detection of fish and underwater structures. The durable marine-grade housing and waterproof design make it suitable for harsh ice fishing conditions, while the included temperature sensor helps monitor water conditions for more precise fishing results.

Features:

  • 83 kHz With 52° Beam Width
  • 200 kHz With 22° Beam Width
  • Up to 1000-Foot (300-Meter) Range at 83 kHz
  • 1 Internal Broadband Ceramic
  • Ice mount
  • Compatible with all Blue sonar connector displays

Product Specifications

Lowrance PTI-WBL Ice Transducer w/Blue Connector [000-0106-94] Product Specifications

Feature Specification / Details
Product Name Lowrance PTI‑WBL Ice Transducer
Model / SKU 000‑0106‑94
Transducer Type Ice transducer
Connector Blue connector
Frequency 200 kHz
Mounting Style Through‑hole / ice hole mount
Temperature Sensor Yes
Speed Included No
Imaging Standard sonar imaging
Cable Length Approx. 20 ft
Material / Housing Durable marine-grade plastic
Installation Designed for ice fishing; mount through ice hole
Operating Temperature 32°F to 140°F (0°C to 60°C)
Water / Weather Protection Waterproof for ice fishing use
Weight Approx. 0.5 lbs
Box Dimensions 3″ H × 6″ W × 9″ L

Product Manual

N/A

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
