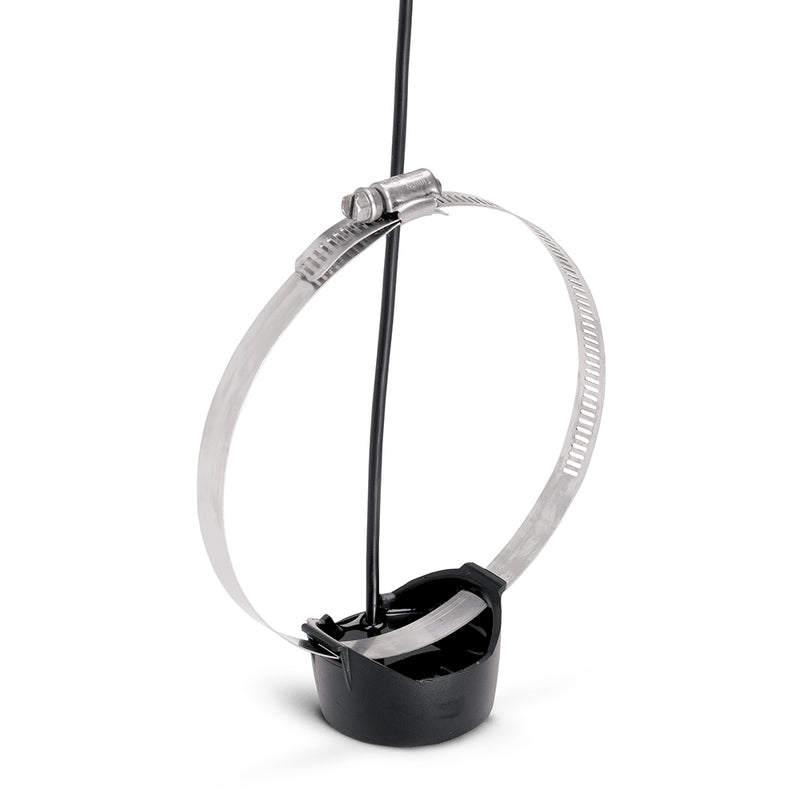

Humminbird XTM-9-HW-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX [710277-1]

Trolling Motor Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 20’ cable.

Features:

  • This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N – All models, HELIX 9 CHIRP G2N/G3N – All models, HELIX 10 CHIRP G2N/G3N – All models, HELIX 12 CHIRP G2N/G3N – All models, ICE HELIX CHIRP G2 – All models (In Open Water Mode).
  • Side Imaging™ and Down Imaging™ units can support the XTM 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
  • Dual Spectrum CHIRP: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)

WarningWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird XTM-9-HW-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX [710277-1] Product Specifications

Specification Details
Model XTM 9 HW T
Product Code 710277-1
UPC 0082324053146
Mount Type Trolling Motor
Mounting Style Trolling Motor
Sonar Type Dual Spectrum CHIRP (2D Sonar)
Imaging Support Standard 2D (No Down or Side Imaging)
CHIRP Range High Wide
Temperature Sensor Yes
Speed Sensor No
Cable Length 20 ft

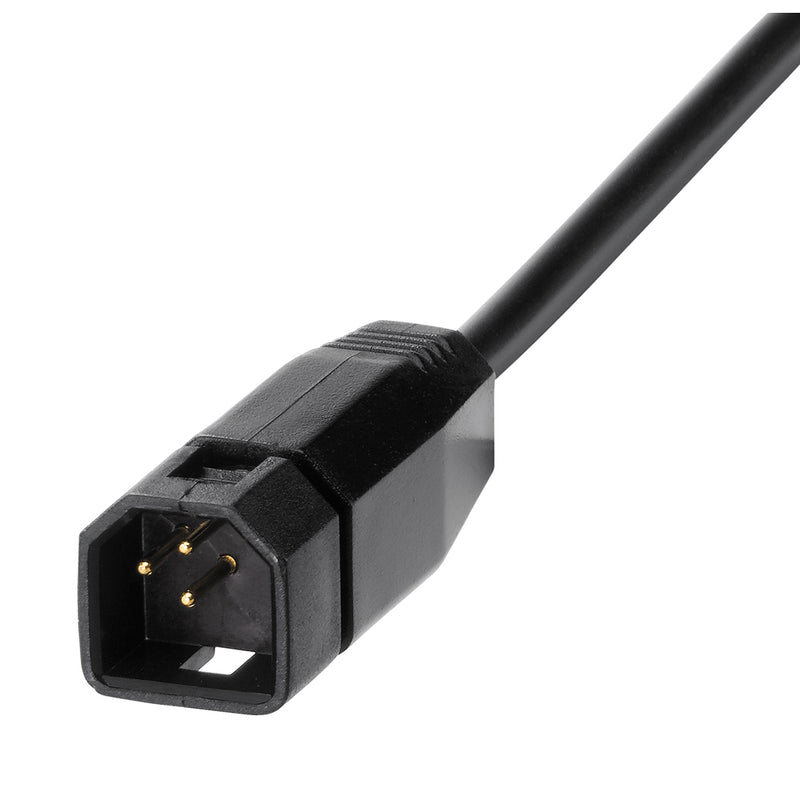

Pins 7-pin connector
Compatible Models HELIX 5, 7, 8, 9, 10, 12; ICE HELIX
Box Dimensions 4" H × 8" W × 9" L
Box Weight 0.9 lbs
Warranty One-Year Warranty
