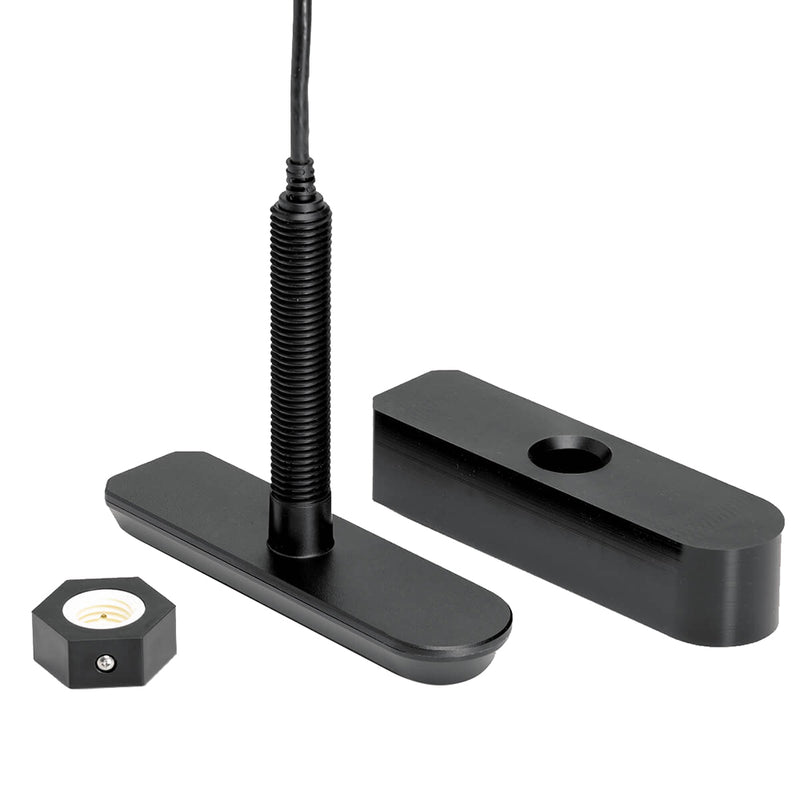

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer [710294-1]

Humminbird Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU OGL-80808
Save 9% Save 9%
Original price $529.99
Original price $529.99 - Original price $529.99
Original price $529.99
Current price $481.99
$481.99 - $481.99
Current price $481.99
Availability:
Low stock

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer [710294-1]

SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Features:

  • This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
  • MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
  • MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"
  • 1-Year Limited Warranty

Product Specifications

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer [710294-1] Product Specifications

Specification Details
Model XPTH 14 HW MSI T
Product Code 710294-1
UPC 0082324053283
Mount Type Thru-Hull
Sonar Type MEGA Imaging+ / Down Imaging+ / Side Imaging+ / High Wide CHIRP
Compatible Models SOLIX 10 G3, SOLIX 12 G3, SOLIX 15 G3; APEX 13, 16, 19; XPLORE 9, 10, 12
Imaging Support MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
CHIRP Range High Wide
Temperature Sensor Yes
Speed Sensor No

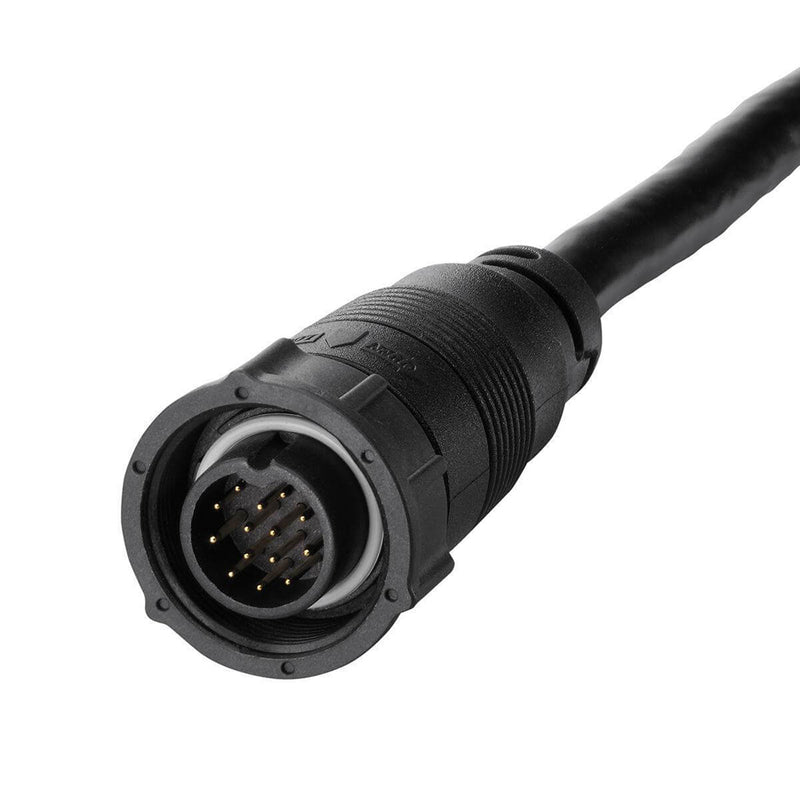

Cable Length 30 ft
Number of Pins 14
Mounting Style Thru-Hull
Box Dimensions 4" H × 10" W × 15" L
Box Weight 2.9 lbs
Warranty One-Year Warranty

Product Manual

English Transducer Resource Guide

Accessory Resource Guide

Transducer Compatibility Guide

Side Imaging Plastic Thru-Hull Transducer Installation Instructions

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

  • All XPLORE models
  • All APEX models
  • All SOLIX models
  • HELIX 8 / 9 / 10 / 12 / 15 models
  • ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
  • ICE Flasher models (ICE-55, ICE-45, and ICE-35)
  • MEGA Live 1 Imaging transducers
  • MEGA Live 2 Imaging transducers
  • MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

  • HELIX 5 / 7 models
  • ICE HELIX 5 / 7 models
  • All accessories
  • All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

  • All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A
