Humminbird XNT-14-HW-T Dual Spectrum CHRIP TM Transducer w/Temp f/SOLIX [710285-1]

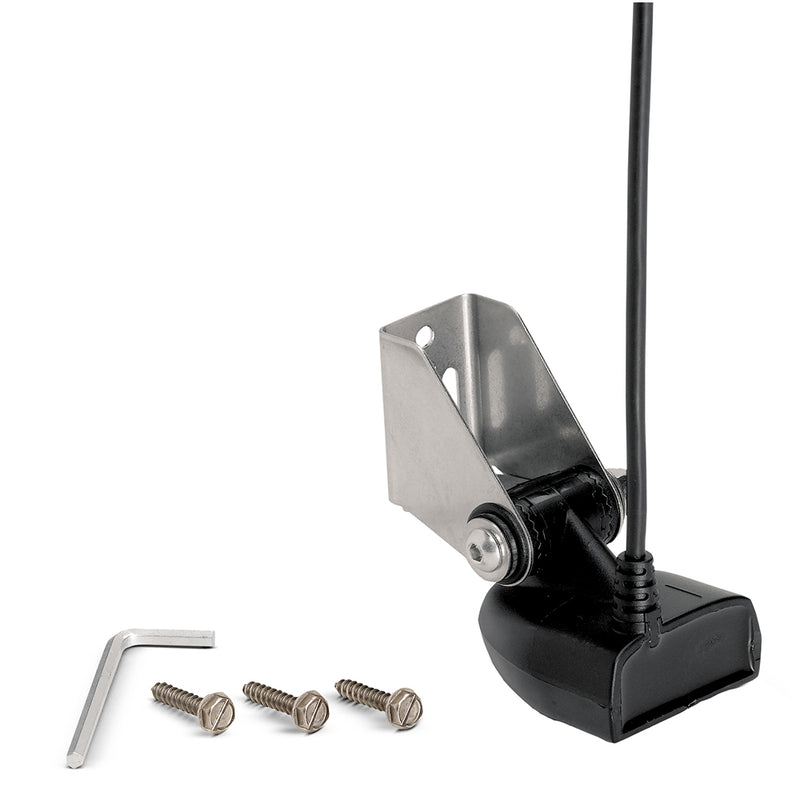

Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, all metal bracket and 20’ cable.Ā

Features:

  • This accessory is compatible with the following Humminbird products: SOLIX 10, 12, 15 – All Models.
  • Side Imagingā„¢ and Down Imagingā„¢ units can support the XNT 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)

WarningWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Specifications

Humminbird XNT-14-HW-T Dual Spectrum CHRIP TM Transducer w/Temp f/SOLIX [710285-1] Product Specifications

Specification Details
Model XNT 14 HW T
Product Code 710285-1
UPC 0082324053054
Mount Type Transom
Mounting Style Transom
Sonar Type Dual Spectrum CHIRP (2D Sonar)
Imaging Support Standard 2D (No MEGA Imaging)
CHIRP Range High Wide
Temperature Sensor Yes
Speed Sensor No

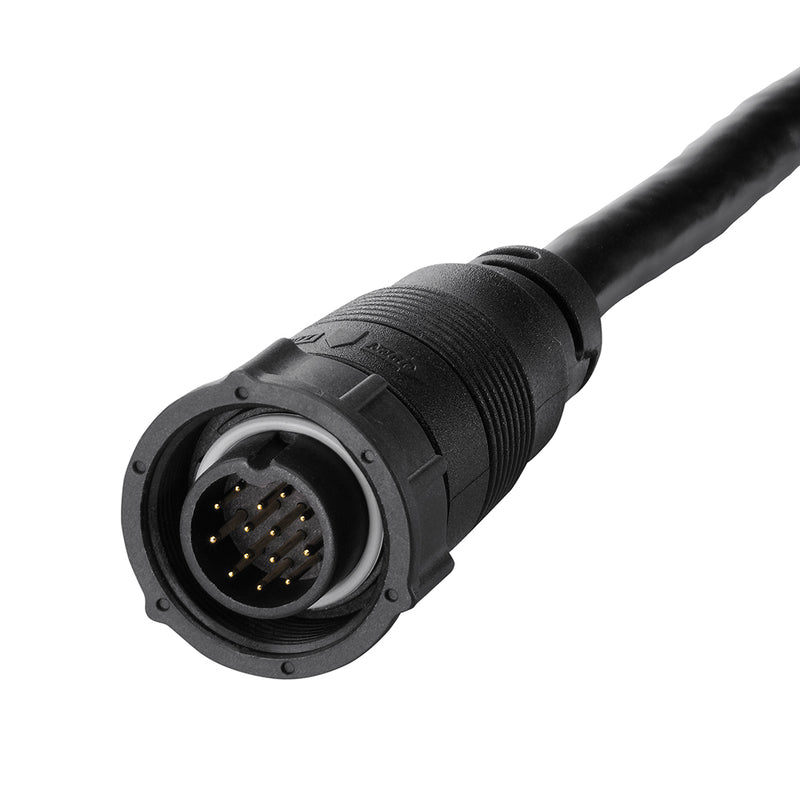

Pins 14-pin connector
Cable Length 20 ft
Compatible Models SOLIX 10 G3, 12 G3, 15 G3; APEX 13, 16, 19; XPLORE 9, 10, 12
Discontinued Series ONIX
Box Dimensions 7" H Ɨ 8" W Ɨ 10" L
Box Weight 1.35 lbs
Warranty One-Year Warranty

Product Manual

Owner's Manual (pdf)

English Transducer Resource Guide

Accessory Resource Guide

Transducer Compatibility Guide

XNT Metal Bracket & Transducer Installation Instructions
