Humminbird Helix 7 GPS Chirp MSI G4N [411940-1]

Humminbird Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU OGL-100692
Original price $0.00 - Original price $0.00
Original price $0.00
$999.99
$999.99 - $999.99
Current price $999.99
Availability:
Low stock

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

We offer a 30 day return period for this product from date of receipt. Return Merchandise Authorization (RMA) numbers are required for all returns. Returned products must be complete in the original packaging and resalable. Returns are subject to a restocking fee, if the item(s) is not in brand new condition-including original packaging. Free shipping charges do not apply for exchanges

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Humminbird Helix 7 GPS Chirp MSI G4N [411940-1]

Description

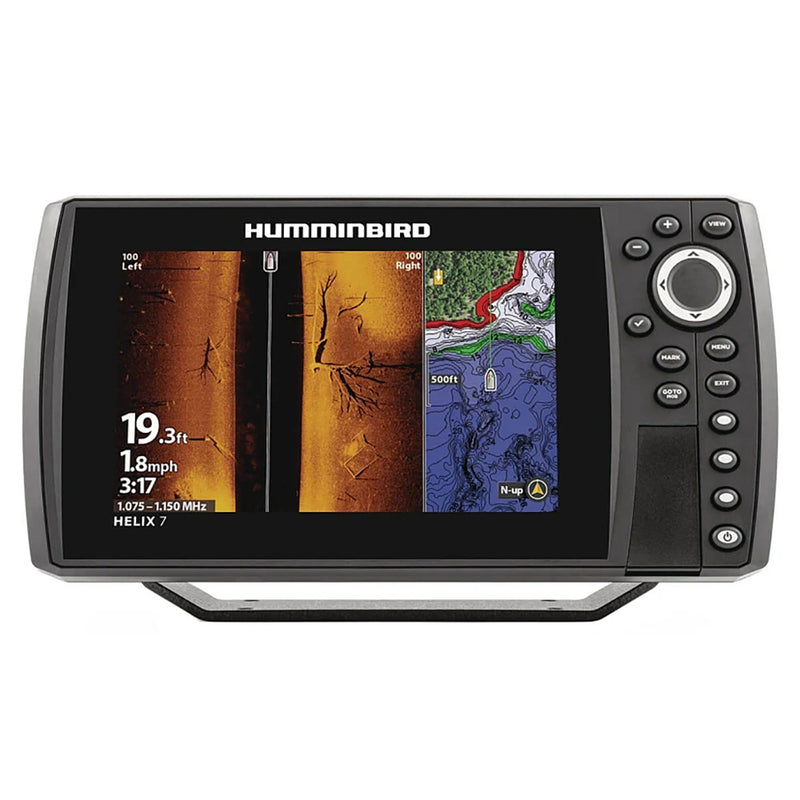

The HELIX 7 MEGA SI GPS G4N fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS, and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split-screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.

Keypad Control

Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.

CHIRP Side Imaging

Filter out noise and clutter for a clearer view of the world below and out to each side of your boat. CHIRP Digital Sonar processing of Side Imaging sonar means that you'll see fish and structure to the left and right of your boat.

CHIRP Down Imaging

Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.

Dual Spectrum CHIRP Sonar

See what's down there thanks to highly detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

Internal GPS and Humminbird Basemap

Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible

Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.

AutoChart Live

Create real-time maps of your fishing spots with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

Product Specifications

Humminbird Helix 7 GPS Chirp MSI G4N [411940-1] Product Specifications

Model HELIX 7 MSI GPS G4N
Product Code 411940-1
Series HELIX
UPC 0082324058172
As shown MSRP
$999.99
Display Size - Diagonal 7 in
Length 3.08 in | 7.82 cm
Height 5.44 in | 13.82 cm
Width 10.54 in | 26.77 cm
Weight 2 lb 6.4 oz | 1.08862 kg
Display Pixel Matrix 1024H x 600V
Transducer Included XNT 9 HW MSI 150 T
Compatible With Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, AIS, NMEA 2000, AutoPilot, One-Boat Network
Features Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging
Memory Card Slot Dual Micro SD
Sonar-Standard Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
Sonar-Coverage 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional 53 kHz, 50/Low Airmar CHIRP
Live Sonar-Coverage 20 degrees x 120 degrees
CHIRP - Frequencies Supported Narrow Mode (180-240 kHz), 83/200 (75-155/130-250 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
CHIRP - Imaging Frequencies Supported 455 kHz (440-500 kHz), MEGA SI (1075-1150 kHz), MEGA DI (1075-1150 kHz)
Depth-Down Imaging 75 ft (MEGA), 400 ft (455 kHz)
Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 250 ft (MEGA)
Interface Keypad Control
Power Draw 800 mA
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Output RMS 500 Watts
Screen Snap Shot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 10.54 in W x 5.8 in H x 3.68 in D
Mount-Optional In-Dash Mounting Kit
Mount-Optional Size 10.54 in W x 5.44 in H x 1.13 in D
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Receiver Internal
GPS Trackplotting Included
Waypoints, Routes, Tracks/Points 2,750, 47, 50/20,000
360 Imaging Compatibility Yes
MEGA Live Compatibility Yes
Humminbird Basemap Included
LakeMaster Compatibility Yes
CoastMaster Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum+ Compatibility Yes
Platinum Compatibility Yes
Minn Kota i-Pilot Link Compatibility Yes
Minn Kota Talon Shallow Water Anchor Compatibility Yes
Radar Compatibility Yes
5-Port Ethernet Switch Compatibility Yes
AIS Compatibility Optional
Autopilot Compatibility Yes
Heading Sensor GPS Compatibility Yes
NMEA2000 Included
Target Separation 2.5 in
Interference Rejection 6 Modes
Noise Rejection 6 Steps
Upgradable Software Yes
View Preset Keys Yes
X-Press Menu System Yes
Custom Digital Readout Yes
Custom View Selections No
Display Colors Grayscale 16-Bit
Display Type Color TFT
Speed Included
Temperature Built In
Temperature Alarm Yes
Temperature Graph Yes
HDMI Compatible No
Warranty One-Year Warranty

Product Manual

HELIX Series Installation Instructions

HELIX Series - English Quick Reference Guide

Accessory Resource Guide

Transom Transducer Installation Instructions

HELIX Series - English Product Manual

Product Warranty

Humminbird Warranty

The Humminbird warranty we offer is product-dependent. The warranty begins at the date of purchase. When requiring any service/repairs for your Humminbird product, you will need your original receipt of purchase for warranty coverage. If you do not have your receipt of purchase, we will reference your product's serial number and base your warranty coverage off the date of manufacture. We recommend that you write the serial number down somewhere outside of your boat to have it available for future reference.

Humminbird 2-Year Limited Warranty

This warranty covers the following products:

  • All XPLORE models
  • All APEX models
  • All SOLIX models
  • HELIX 8 / 9 / 10 / 12 / 15 models
  • ICE HELIX 9 models (with MEGA Live or MEGA 360 Imaging)
  • ICE Flasher models (ICE-55, ICE-45, and ICE-35)
  • MEGA Live 1 Imaging transducers
  • MEGA Live 2 Imaging transducers
  • MEGA 360 Imaging transducers

Download Humminbird 2-Year Limited Warranty Terms (PDF)

Humminbird 1-Year Limited Warranty

This warranty covers the following products:

  • HELIX 5 / 7 models
  • ICE HELIX 5 / 7 models
  • All accessories
  • All cartography products

Download Humminbird 1-Year Limited Warranty Terms (PDF)

Humminbird Cartography 1-Year Limited Warranty

This warranty covers the following products:

  • All cartography products including LakeMaster and CoastMaster charts

Download Humminbird Cartography 1-Year Limited Warranty Terms (PDF)

Product FAQs

N/A
