Fortress Power EV6500-S 6500W 48V Offgrid Split Phase Inverter

Fortress Power Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU Offgrid 6500W Inverter
Save 8% Save 8%
Original price $1,689.00
Original price $1,689.00 - Original price $1,689.00
Original price $1,689.00
Current price $1,549.00
$1,549.00 - $1,549.00
Current price $1,549.00
Availability:
in stock, ready to be shipped

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

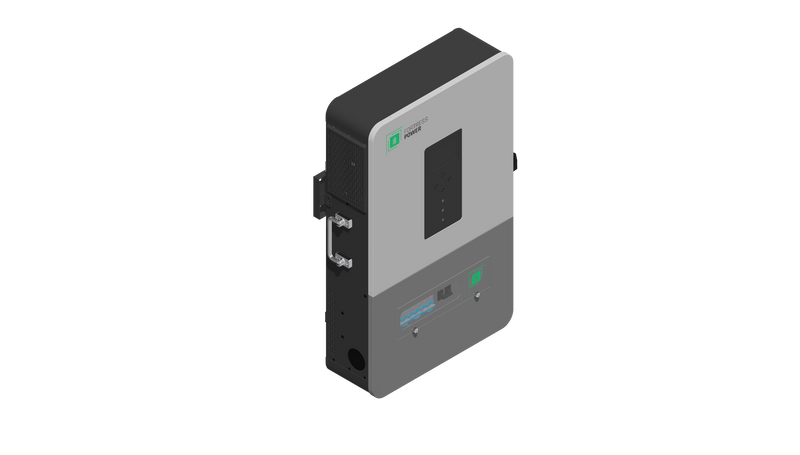

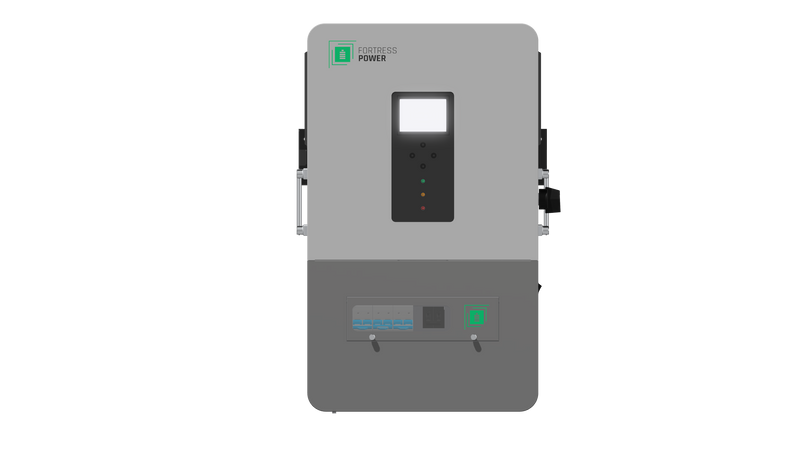

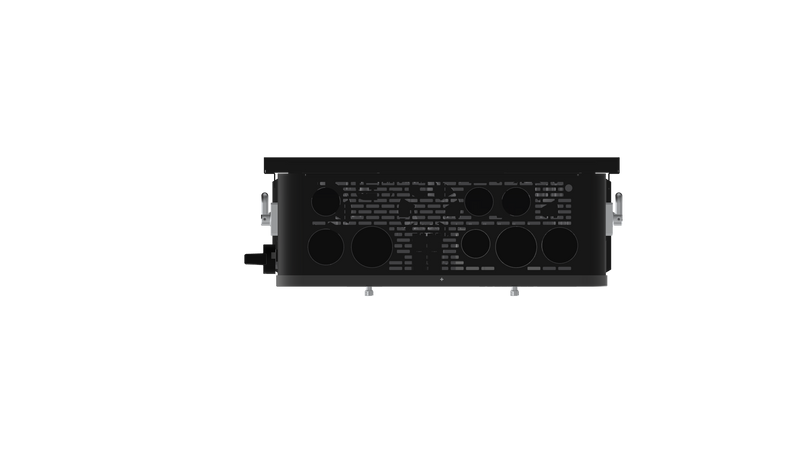

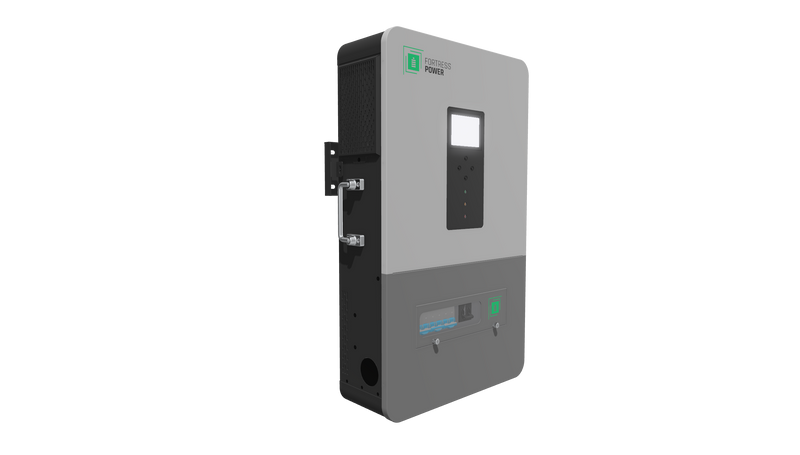

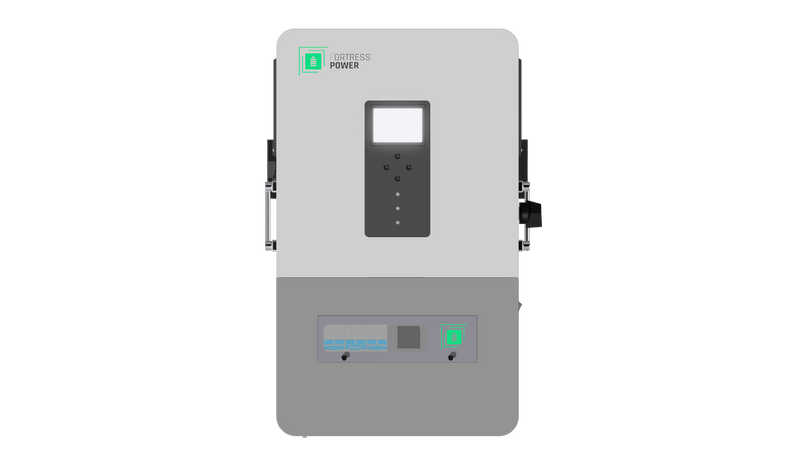

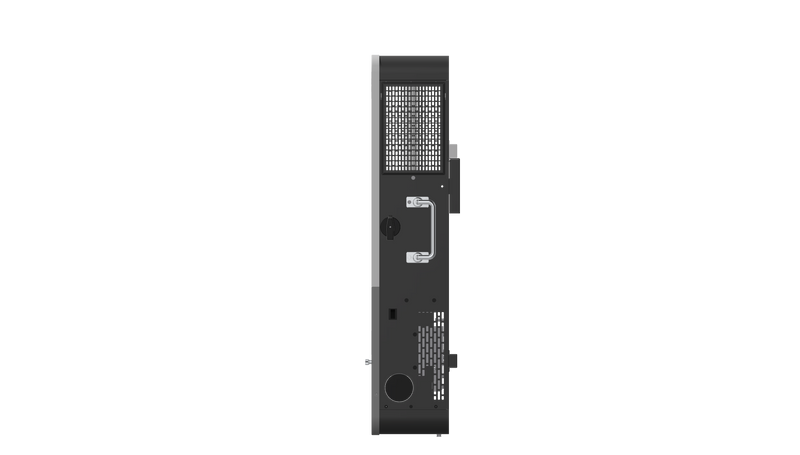

Fortress Power EV6500-S 6500W Offgrid Split Phase Inverter

Description

AVAILABLE IN Nov 1ST 2025

Reliable, Flexible Power for Off-Grid and Backup Applications

The Fortress Power EV6500-S is a next-generation off-grid solar storage inverter built for reliability, scalability, and intelligent energy control. Designed to handle both split-phase and single-phase loads, it delivers up to 6,500W continuous output and 13,000W peak output, making it ideal for off-grid living, home backup, microgrids, and peak shaving.

Equipped with time-based charging and discharging, generator/grid hybrid input, and intelligent switching, the EV6500-S gives homeowners and installers ultimate flexibility in managing energy consumption and production. Its high-capacity solar charge controller (up to 140A) ensures efficient solar harvesting, while support for up to six parallel units allows expansion up to 39kW of output power.


Product Specifications

GENERAL DATA
Weight 47.84 lbs (21.7 kg)
Operating Temperature 14 ºF – 131 ºF (-10 ºC – 55 ºC), >45 ºC derating
Protection Level IP20 (for indoor use only)
Noise <60db
Dimensions (W x D x H) 25.5 x 16.1 x 5.5 in (648 x 410 x 140 mm)
Cooling Mode Fan
INVERTER OUTPUT
Rated Output Power 6,500W
Maximum Peak Power 13,000 VA
Rated Output Voltage 120/240 VAC (Single/Split-Phase)*
Rated Frrequency 50/60Hz*
Output Wave Pure Sine Wave
Switching Time 10 ms (typical value)
Parallel Number 6
BATTERY PARAMETERS
Compatible Battery Type Lithium-ion battery / lead-acid battery / user- defined battery*
Rated Battery Voltage 48 Vdc
Voltage Range 40 Vdc-60 Vdc*
Maximum Grid/Generator Charge Current 80 A DC*
Maximum Battery Charge Current 140 A DC*
PV INPUT
MPPT Channel Number 2
Maximum Input Power 5,000W+5,000W
Maximum Input Short Circuit Current 18 / 18 A
Maximum Open Circuit Voltage 550 Vdc / 550Vdc
MPPT Operating Voltage Range 150 Vdc-450 Vdc
GRID / GENERATOR INPUT
Input Phase Voltage Range 65 VAC – 140 VAC
Grid Frequency Range 50/60 Hz
Bypass Overload Current 40A
COMMUNICATION
Built-in Interface RS485 / CAN / USB / dry contact*
External Module (Optional) Wi-Fi / GPRS*
EFFICIENCY
MPPT Tracking Efficiency 99.9%
Maximum Efficiency of Battery Inverter 93%
STANDARDS & CERTIFICATIONS
Safety Standards IEC62109-1, IEC62109-2, and UL1741
EMC EN61000-6-1, EN61000-6-3, and FCC 15 class B
RoHS Yes



Product Manuals

Data Sheet

Product Warranty

N/A

Product FAQs

Fortress Power Product FAQs

1) Does energy storage work well with my solar system?

Yes. On the grid? Absolutely! Energy storage adds a lot of value to your solar systems. It keeps your solar system operating when your utility service is interrupted. Without energy storage, your PV system will be forced to shutdown when the grid is off.

If you live off grid, energy storage enables you to use the clean solar energy to power your home day and night.

Fortress Power also knows you’re a fan of conservation—energy storage saves both your surplus solar energy and your cash since it reduces on grid energy dependence.

2) Can I use energy storage without solar panels?

Absolutely. For on grid clients, a home energy storage unit  stores energy from your electricity provider. If an outage occurs, home energy storage can provide up to 24 hours of potentially life-saving power. Need more reassurance? Fortress Power offers batteries with larger storage capabilities, completely customizable to your needs. And, like you, we appreciate saving money. When electricity is at its lowest daily rate, our smart energy storage units use that period to charge. When peak electric use occurs, our energy storage units can discharge power to suit your lifestyle.

3) What about power outage protection?

Power interruptions shouldn’t disrupt your schedule. An energy storage system will keep your solar system operating during grid outages. When paired with solar panels, an energy storage system supplies unlimited energy delivery. The solar panels power your home during the day and use any excess power to charge the battery. At night, the system keeps your space bright. When used without solar panels, power outage support is dependent on battery size and your energy use. Batteries providing at least 12 hours of backup power are safest.

4) Are home energy storage systems financially beneficial?

You can use the energy storage to shelve your peak usage. When electricity is at its lowest daily rate, our smart energy storage uses that period to charge. During the peak periods, our energy storage system can power your home, reducing your electricity bill. Clients with solar panel installations enjoy a faster return on investment.

5) Do I receive incentives on my energy storage system?

If your energy storage is powered by solar panels, you are eligible for 30% federal tax credit. Many states and utilities provide rebates for homes and businesses with energy storage systems, aiming for grid resilience.
