Matrice 400 has a protection rating of IP55 [9], allowing it to operate reliably in challenging conditions including heavy dust or rain. It also maintains stable performance across temperatures from -20° to 50° C (-4° to 122° F), delivering consistent results in both hot and cold conditions.
The Matrice 400's advanced obstacle sensing system integrates rotating LiDAR, high-precision mmWave radar, and full-color low-light fisheye vision sensors [13], pushing detection capabilities to unprecedented levels. The system detects even small obstacles like high-voltage power lines across mountainous terrain — even in darkness [3]. It can penetrate rain and fog to sense its surroundings, providing enhanced safety in challenging weather conditions.

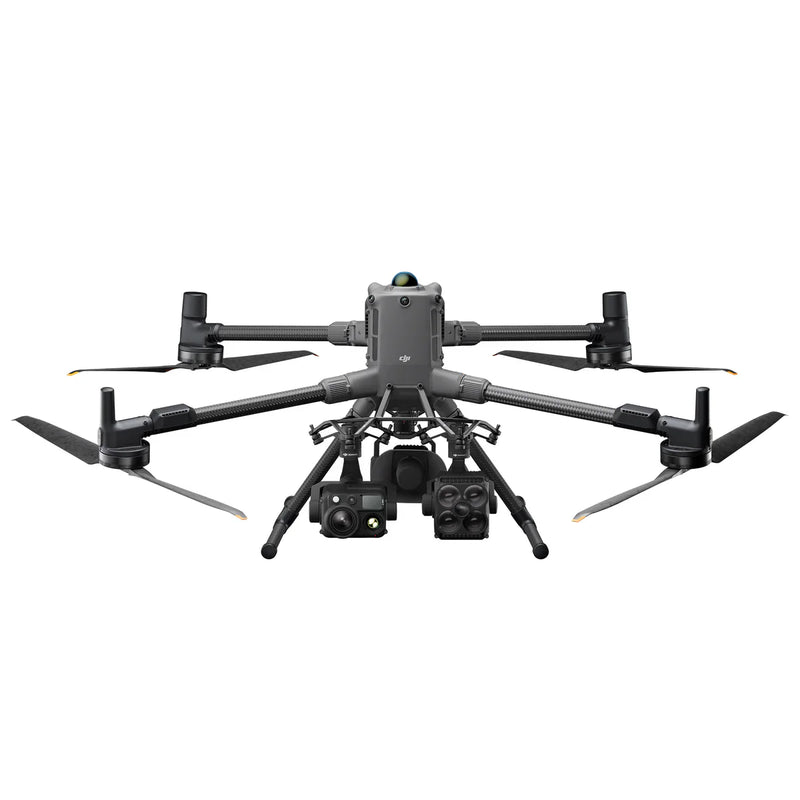

With Zenmuse H30 Series' visible and thermal imaging, Matrice 400 can detect vehicles, vessels, and subjects during search and rescue operations or routine flights. It also supports switching to other models, enabling the expansion of application scenarios. Additionally, it supports high-res grid photos and features powerful tracking capabilities.
Matrice 400 supports Real-Time Terrain Follow flight in any horizontal direction [15]. This feature can be enabled during both manual flight and automated flight routes, ensuring stable relative height to the ground. During large-scale search and rescue operations, the size of ground subjects can be kept consistent on the remote controller screen, reducing the need for frequent zoom adjustments and improving efficiency. During mapping missions, a consistent ground sampling distance (GSD) can be maintained to obtain high-precision mapping data.

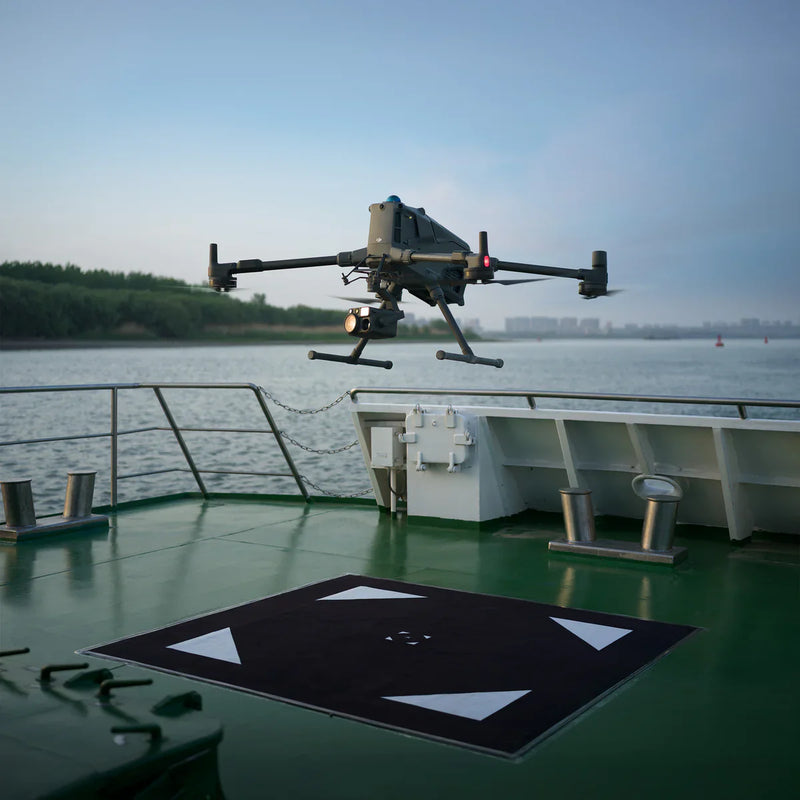

To address the needs of offshore operations such as maritime patrol and wind turbine inspection, Matrice 400 is equipped with the capability to take off from and land on ships, supporting takeoff from stationary vessels and landing on moving vessels. By detecting landing point patterns on the deck, it can achieve safe and precise landings.
When equipped with the L2 LiDAR system, Matrice 400 can perform automated power transmission and distribution line following flights. It uses the rotating LiDAR to detect obstacles in real time and automatically bypasses crossing lines.
Matrice 400 supports the planning and execution of slope and geometric routes via DJI Pilot 2 or DJI FlightHub 2. Whether conducting detailed aerial surveys of building facades, slopes, or other inclined surfaces, or collecting mapping data of individual buildings or structures, Matrice 400 can quickly plan slope or geometric routes to efficiently acquire high-precision data.
Matrice 400 Compatibility List
Gimbal Cameras
- Zenmuse H30
- Zenmuse H30T
- Zenmuse L2
- Zenmuse P1
Functional Accessories
- Zenmuse S1 Spotlight
- Zenmuse V1 Speaker
- Manifold 3 Edge Computer
- DJI RC Plus 2 sub-2 G SDR Module
- DJI Cellular Dongle 2
RTK & Positioning
- D-RTK 3 Multifunctional Station
- D-RTK 2 Mobile Station
Ecosystem & Developer Ports
- DJI X-Port
- DJI E-Port V2 Development Kit
- DJI E-Port V2 Coaxial Cable Kit
- DJI SkyPort V3 Adapter Set
- DJI SkyPort V3 Coaxial Cable Kit
* Always check and strictly abide by local laws and regulations before flying.
** All data on this page was collected with a production model of DJI Matrice 400 in a controlled test environment. Actual experience may vary depending on the environment, usage, and firmware version.
*** All videos and photos on this page were shot in strict compliance with local laws and regulations. Demos, including wildlife, were shot from a safe distance and are used for reference only. Please observe local laws and regulations and ensure the aircraft has obtained relevant certifications before flying.
**** Before use, Matrice 400 must be activated via the DJI Pilot 2 app.
1. Measured with the aircraft flying forward at a constant speed of 10 m/s in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual experience may vary depending on the environment, usage, and firmware version.
2. The 6 kg payload is measured at the third gimbal connector under sea level conditions. Payload capacity decreases as altitude increases. For details, refer to the official user manual.
3. Power line obstacle sensing capability: When directly facing a transmission line (21.6 mm steel-core aluminum stranded wire), obstacle sensing is supported at speeds up to 25 m/s. When both transmission lines (21.6 mm steel-core aluminum stranded wire) and distribution lines (12 mm steel-core aluminum stranded wire) are present, obstacle sensing is supported at speeds up to 17 m/s. Obstacle sensing performance may vary depending on environmental conditions (such as cloud, fog, rain, or snow), as well as the material, position, and shape of the target object. Due to the limitations of the safety system, the aircraft cannot actively avoid fast-moving objects; please fly with caution in such environments. Refer to the user manual for more information. The mmWave radar function is unavailable in some countries/regions.
4. This feature is unavailable in countries or regions without 5GHz frequency support. Refer to local laws and regulations for more information.
5. Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.
6. Measured with the aircraft hovering in a windless environment at sea level, carrying only the H30T (total weight 10,670 g), and from 100% battery level until 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment.
7. The E4 port of E-Port V2 can be expanded into four payload ports via the E-Port Hub expansion plate. For more detailed information, visit https://developer.dji.com/payload-sdk to learn more.
8. Sold separately.
9. Please follow the requirements stated in the IP55 protection rating instructions. Measured in a controlled environment. The IP rating is not permanently effective and may decrease due to product wear and tear.
10. Measured with FCC compliance in an unobstructed environment with low interference at a flight altitude of approximately 120 m. Data is for reference only. During your flight, please pay attention to reminders in the app.
11. To use 4G Enhanced Transmission, the remote controller must be equipped with the DJI Cellular Dongle 2 (sold separately) or connected to the internet via Wi-Fi. This service is not available in some countries and regions. Please consult your local dealer for details.
12. There are certain blind areas of visual sensing and infrared sensing. Positioning and obstacle-sensing performance may be affected by the flight environment and obstacle characteristics. Please fly with caution.
13. When ambient light is below 12 lux, the visual sensor switches to black-and-white mode.
14. Zenmuse H30 Series required.
15. DJI FlightHub 2 required.
16. It is recommended to use the feature when the ship speed is below 10 knots and the wind speed is below 5 m/s; exercise caution in other environments. It is recommended to reserve a 3 m × 3 m takeoff and landing space on the deck. Standard landing point pattern files are available on the download page.
17. The following accessories are all compatible with Matrice 400.
18. Charging time is measured based on a 220-volt voltage.
19. Measured in a controlled environment. Results may vary depending on the environment, actual use, and firmware version.
20. Service offerings may vary by country or region. For details, please consult your local dealer. Free Repairs: Get free repairs within the coverage scope and amount; Coverage for Your Whole Fleet: Shared coverage can be extended to other DJI Enterprise devices bound to DJI Care Enterprise Plus within the same time period (30 calendar days) after the first activation and binding; Free Shipping: Available in regions covered by DJI Care Enterprise. Users are responsible for additional costs including logistics and customs duties incurred beyond the scope of coverage. The official extended warranty covers the following components: aircraft body, intelligent battery station, remote controller, single downward gimbal module, dual downward gimbal module, and third gimbal connector.
What's Included
NOTE - NO BATTERIES INCLUDED MUST PURCHASE SEPARATELY
(1) Matrice 400 Aircraft (with propeller holder)
(1) Remote Controller — DJI RC Plus 2 (with sub-2 G SDR Module)
(1) WB37 Battery (for RC)
(1) Carrying Case
(2) Landing Gear
(2) Propeller Pair
(6) Propeller Washers and Screws
(1) Remote Controller Strap & Bracket
(1) USB-C ↔ USB-C Cable
(1) Power Cable
(4) Gimbal Damper
(1) Screws & Tools Set
(1) Cleaning Tools Set
(1) Rubber Port Covers & Screws Set
