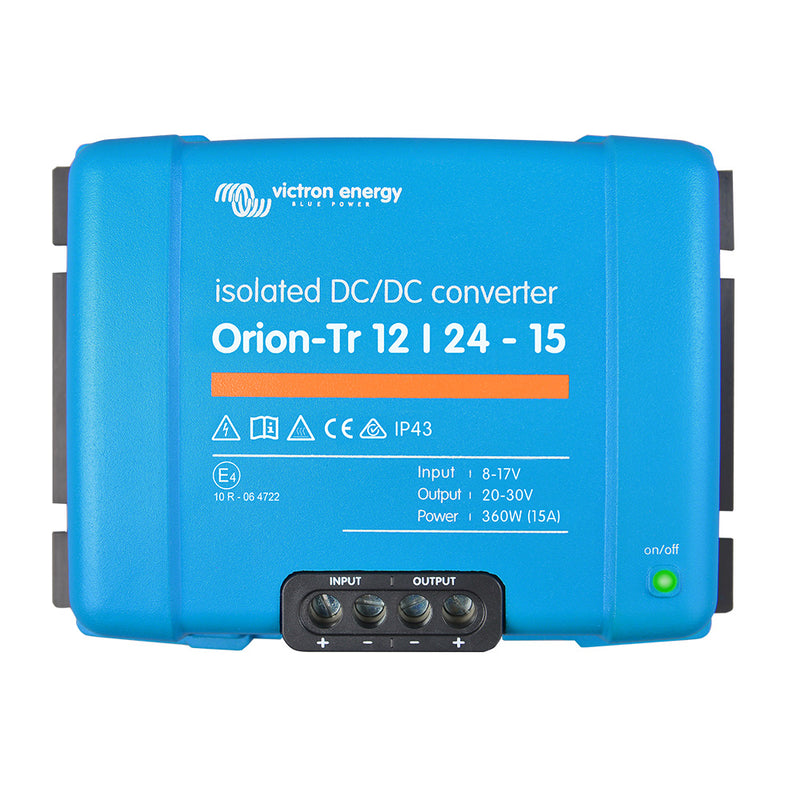

Victron Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter [ORI122441110]
Description
Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter
Features:
- Remote on/off terminal - The remote on/off terminal eliminates the need for a high-current switch in the input wiring. The remote on/off can be operated with a low power switch or by, for example, the engine run/stop switch (see manual).
- All models are short-circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
- High temperature protected - The output current will reduce at high ambient temperature.
- IP43 protection - When installed with the screw terminals oriented downwards.
- Screw terminals - No special tools needed for installation.
- Input fuse (not replaceable) - On 12 V and 24 V input models only.
- Adjustable output voltage - Not intended for battery charging. Please consider using an Orion-Tr Smart for battery charging.
Product Specification
Victron Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter [ORI122441110] Product Specification
| Specification |
Details |
| Product Name |
Victron Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter |
| Model Number |
ORI122441110 |
| Converter Type |
Isolated DC-DC Converter |
| Input Voltage |
12V DC |
| Output Voltage |
24V DC (Adjustable) |
| Output Current |
15A |
| Power Rating |
360W |
| Isolation |
Galvanically Isolated |
| Remote On/Off |
Yes, via low-power remote terminal |
| Parallel Operation |
Yes, unlimited units can be connected in parallel to increase output current |
| Short-Circuit Protection |
Yes |
| High-Temperature Protection |
Yes, output current reduces automatically at high ambient temperatures |
| Ingress Protection Rating |
IP43 (when installed with screw terminals facing downward) |
| Connection Type |
Screw terminals |
| Installation Requirements |
No special tools required |
| Input Fuse |
Built-in, non-replaceable (on 12V and 24V input models only) |
| Output Voltage Adjustment |
Adjustable |
| Battery Charging Capability |
Not intended for battery charging |
| Recommended Alternative for Battery Charging |
Victron Orion-Tr Smart Series |
Product Manual
Product Warranty
Victron Energy Product Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.
During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing deāinstallation, transportation, and reāinstallation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
ā¢ Reverse of battery polarity.
ā¢ Inadequate connection.
ā¢ Mechanical shock or deformation.
ā¢ Contact with liquid or oxidation by condensation.
ā¢ Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).Ā
ā¢ Breakage or damage due to lightning.
ā¢ Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
ā¢ For any electronic breakage except due to lightning (reverse polarity, overāvoltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.
All remedies and the measure for damages are limited to the above.
Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
Product FAQs
N/A
