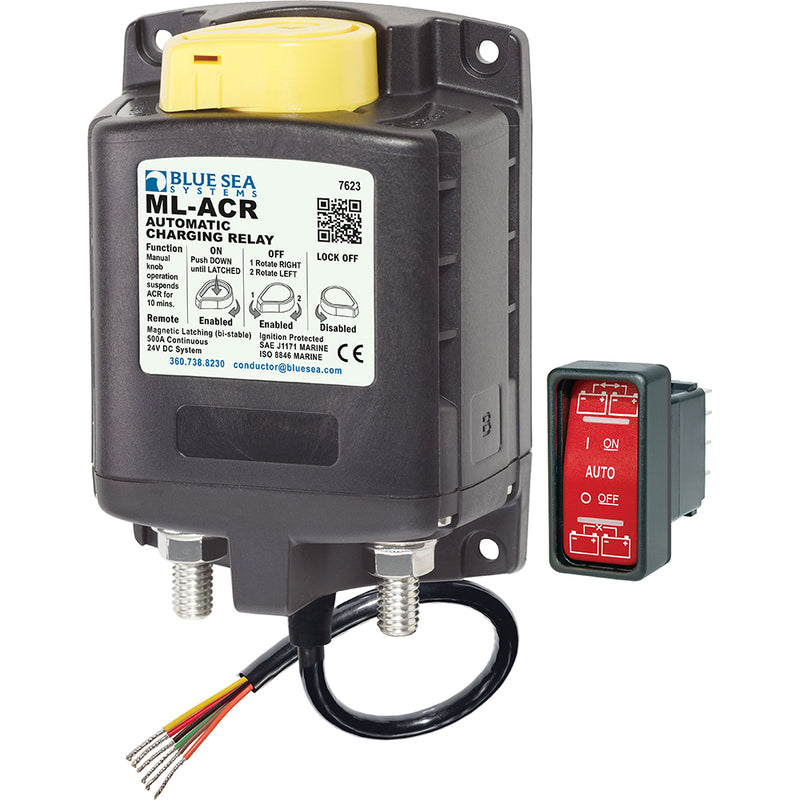

Blue Sea 7623 ML-Series Heavy Duty Automatic Charging Relay - 24V [7623]

Description

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine

Features:

  • Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
  • Includes ML-Series Remote Control Contura Switch PN 2146
  • 500 Ampere continuous rating
  • Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
  • Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • Supports high-output alternators up to 500 Amps
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit protection
  • Silver alloy contacts provide high reliability for switching live loads

Product Specifications

Blue Sea 7623 ML-Series Heavy Duty Automatic Charging Relay - 24V [7623] Product Specifications

Specification Value
Control Circuit Connection Tinned Wire
Nominal Voltage 24V DC
Manual Control Yes
Engine Isolation Condition Yes
Start Assist Condition Yes
Start Isolation Condition Yes
Mounting #10
Amperage Operating Current 13mA @ 25°C nominal VDC
Amperage Operating Current (changing state) <7.0A
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 500A
Intermittent Rating (5 min) 700A
Cranking Rating (30 sec) 1450A DC
Minimum Operating Temperature -10°C
Maximum Operating Temperature 60°C
Cable Size to Meet Ratings 4/0 AWG x 2
Live Current Switching 300A @ 12V DC
Stud Material Tinned Copper
Switching Cycles 100,000
Terminal Ring Diameter Clearance 1.12 in (28.45 mm)
Terminal Stud Length 1.50 in (38.1 mm)
Terminal Stud Size 3/8"-16 (M10)
Wire Size 20 AWG
Relay Contact Position - Combine (30 sec) 27.0V
Relay Contact Position - Combine (90 sec) 26.0V
Relay Contact Position - Open (10 sec) 24.7V
Relay Contact Position - Open (30 sec) 25.5V
Relay Contact Position - Open High 32.4V
Weight 2.10 lb (0.95 kg)
