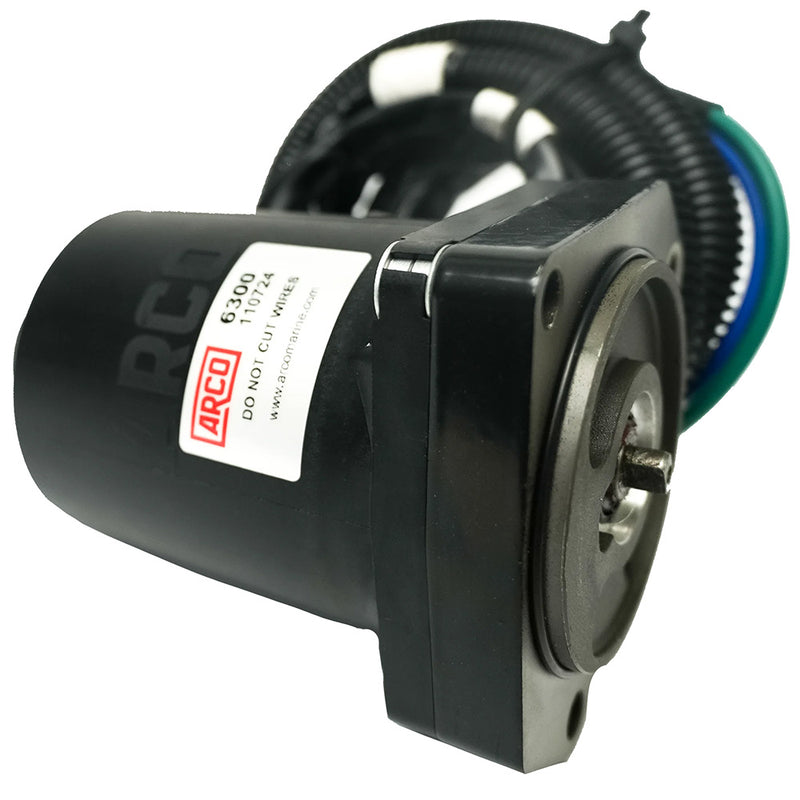

ARCO Marine Replacement Tilt Trim Motor f/Yamaha 6GR-43880 Series [6300]

Engineered to provide a reliable replacement for Yamaha Outboard Engines, the ARCO Part #6300 Tilt Trim Motor is designed for optimal performance with 425HP 4-Stroke models manufactured between 2018 and 2023.ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

  • Tilt trim motors are dynamically tested to ensure out-of-the-box performance
  • Epoxy powder coating provides excellent corrosion protection for harsh marine environments.
  • Induction-case hardened motor shafts for enhanced durability and resistance to wear at bearing surfaces.
  • Armatures are rigorously tested to withstand 50 times the operation voltage (12V) to ensure longevity.
  • Motors are tested under 5 different load levels to guarantee optimal performance.
  • All motors meet or exceed OEM standards for reliable performance and maximum lifespan.
  • Includes O-Ring for Easy Installation

Product Specifications

ARCO Marine Replacement Tilt Trim Motor f/Yamaha 6GR-43880 Series [6300] Product Specifications

Technical Specifications:

  • Motor Type: Tilt/Trim Motor

  • Application: Yamaha 425HP 4-Stroke Outboards (2018–2023)

  • Voltage: 12V

  • Construction: Epoxy powder-coated housing

  • Shaft Material: Induction-case hardened steel

  • Corrosion Resistance: Yes

  • Includes: O-ring for easy installation

  • Performance Testing: Tested under 5 load levels; withstands up to 50× operating voltage

  • Weight: Approx. 6.7 lbs (3.04 kg)

  • Color/Finish: Black

  • Fitment: Direct replacement for OEM trim motor

  • Mount Style: Factory-matched bolt pattern

Product Manual

Quick Guide (pdf)

Product Warranty

Arco Marine Warranty

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for 12 months for leisure use and 90 days for commercial or racing applications. Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

  • Yamaha Tilt Trim Motor 6GR-43880-02-00
  • Yamaha Tilt Trim Motor 6GR-43880-01-00
  • Yamaha Tilt Trim Motor 6GR-43880-00-00

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Product FAQs

N/A
