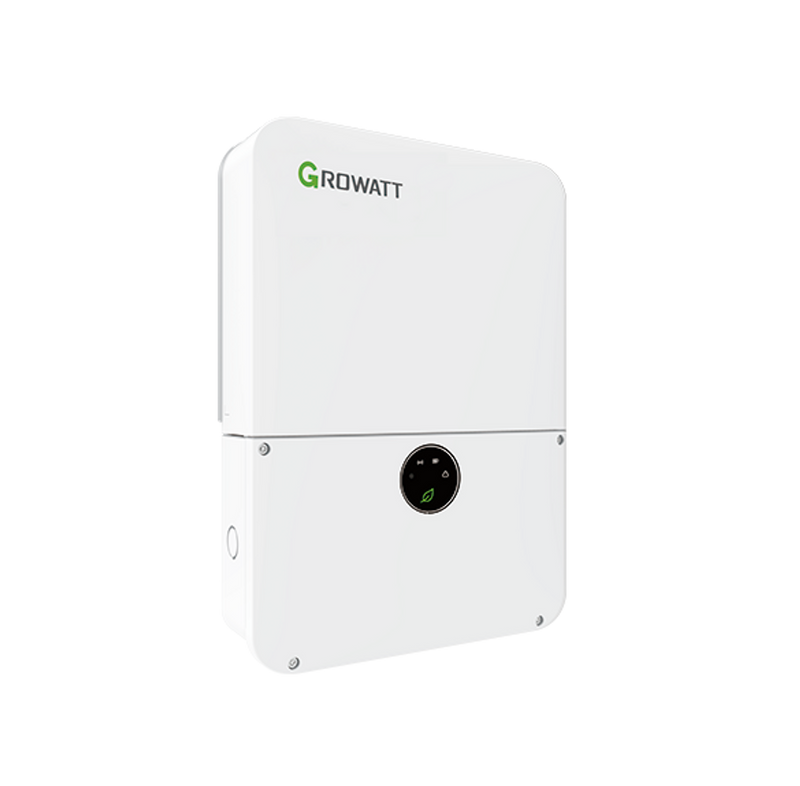

Growatt 6kW Grid-Tie Inverter | MIN 6000TL-XH-US

Description

Key Features:

  • 6000W nominal output.
  • High 500 VDC input!
  • 3 MPP trackers, 2 strings per MPP tracker.
  • Up to 98.4% efficiency!

Advanced Protection & Safety:

  • UL certified (1741).
  • Type III AC surge protection.
  • AC short circuit protection.
  • Ground fault & grid monitoring.
  • AFCI protection.
  • Rapid shutdown capable, RFCI protection.
  • Anti-islanding protection.
  • Residual-current monitoring.

From unboxing to install, we’re with you every step. Reach out to our lifetime, USA-based support team anytime you need guidance.

Product Specifications

Growatt 6kW Grid-Tie Inverter | MIN 6000TL-XH-USĀ Product Specifications

Specification Details
Model MIN 6000TL-XH-US (V2)
Nominal Output Power 6,000W (6kW)
Maximum AC Output Power 6,000W (6kW)
AC Output Voltage 240V (Single-phase)
AC Output Frequency 50/60Hz
Maximum Output Current 25A
Maximum Efficiency 98.4%
MPPT Trackers 3 (2 strings per MPPT)
MPPT Voltage Range 50V – 550V
Maximum DC Input Voltage 600V
Nominal DC Voltage 400V
DC/AC Ratio Up to 2.0
Battery Compatibility Compatible with Growatt ARO/APX HV and LG Prime (Gen3) batteries
Backup Power Capability Yes (Whole-home backup with SYN 200-XH-US)
Safety Features AFCI, RSD, Anti-islanding, Ground Fault, Grid Monitoring, Type III AC Surge Protection
Certifications UL1741SA/SB, UL1741, UL9540, CA Rule 21, HECO
Operating Temperature Range –13°F to +140°F
Protection Rating NEMA 4X (IP65)
Cooling Method Natural Convection
Communication Ports RS485, WiFi/LAN (optional), CAN2.0, SunSpec, App (iOS, Android, Windows)
Dimensions (W x H x D) 15.75" x 22.41" x 6.98" (400 x 569 x 170.5 mm)
Weight 32.3 lbs (14.65 kg)
Warranty 10 years

Product Manual

Growatt Data Sheet

Growatt User Manual

Growatt Quick Guide

Product Warranty

Growatt Warranty

Service terms & conditions.

(1)Product coverage:Ā Including GrowattĀ PVĀ Inverters, Growatt Storage Inverters, GrowattĀ Smart Energy ManagementĀ Devices, Growatt Monitoring Software, EVĀ Chargers, PortableĀ PowerĀ StationĀ and Growatt BatteriesĀ and Accessories

(2)Country and Region coverage:Ā All country and regions, including China Hong Kong specialĀ administration region, Macao special administration region, Taiwan, excluding mainland ChinaĀ ONLY.Ā Warranty coverage is contingent upon the alignment of the country of sale, the country of installation, and the country of after-sales service.

(3)Warranty claim:Ā In general, serial number(S/N)must be provided in order to claim warranty.Ā Please store the original purchasing invoice/ installation documents or receipts carefully.Ā Customers need to present it for warranty claim if required.

(4)Warranty period:Ā The standard warranty period is from the date of installation on the installation certificate and no moreĀ than six months after the delivery date from Growatt.Ā A warranty extension may only be applied within a period of two years from the date of installation.

Growatt service commitment

(1) The service hotline for Growatt local service center varies, please check our local service centerĀ in your country/region. The service hotline in Shenzhen headquarter is +86 755 27471942. OurĀ service hotline offering general inquiry, technical support, etc.

(2) Service email address: service@ginverter.com. Customer is suggested to contact GrowattĀ service representative in your country/region directly.

(3) Warranty period and service mode. We offer different service solutions for different product, seeĀ details on below table


Note: If warranty period was specified on sales order, then warranty period would obey to salesĀ order.

(4) Installation and commissioning:Growatt don’t offer installation service, don’t offer onsiteĀ debugging service for monitoring device. Growatt can offer onsite commission service for big scaleĀ plant (inverter capacityļ¼ž500kw)
