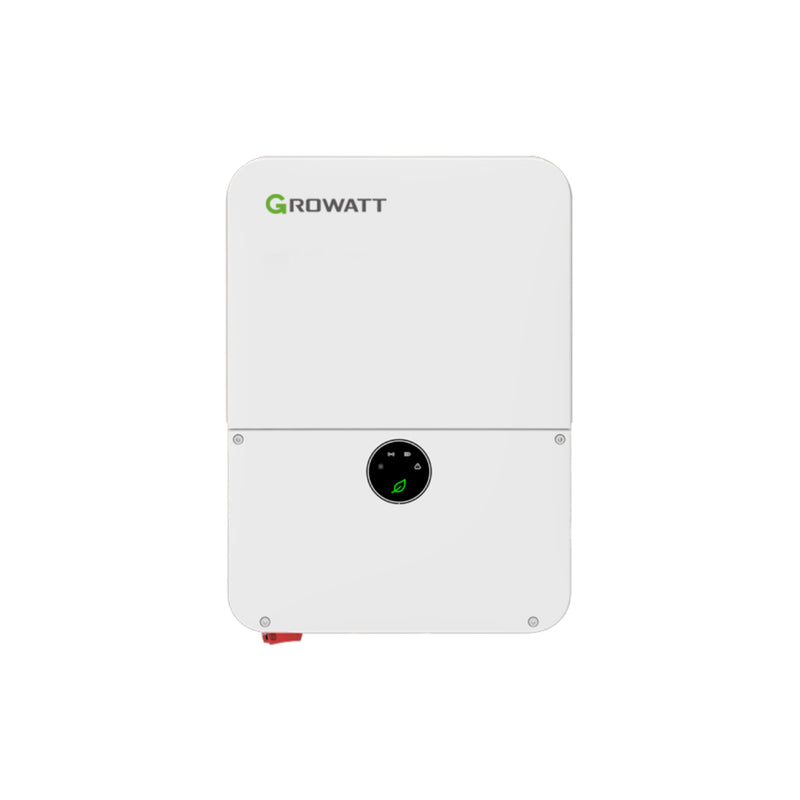

Growatt 10kW Grid-Tie Inverter | MIN10000TL-XH-US

Description

Key Features:

Cutting-Edge Grid-Tie:

  • 10000W Nominal Output
  • High 550 VDC Input (20000W Max PV!)
  • 4 MPP Trackers, 2 Strings Per MPP Tracker
  • Up to 98.5% Efficiency

Quality Design:

  • –13°F to +140°F Operating Tempurature
  • Natural Convection Cooling
  • NEMA4X (IP65) Rated
  • Built-in 4G/Wi-Fi Communication with APP, IoT integrated Cloud and monitoring
  • IOS, Android & Windows Apps

Whether it’s your first project or your fifth, our USA-based team is here for you. Lifetime support means you’re never on your own.

Product Specifications

Growatt 10kW Grid-Tie Inverter | MIN10000TL-XH-US Product Specifications

Specification Details
Model MIN10000TL-XH-US (V3)
Nominal Output Power 10,000W (10kW)
Maximum PV Input Power 20,000W (20kW)
Maximum MPPT Operating Voltage 550V DC
AC Output Voltage 208/240V (Single-phase)
Maximum Output Current 42A
Maximum Efficiency 98.5%
MPPT Trackers 4 (2 strings per MPPT)
DC/AC Ratio Up to 2.0
Battery Compatibility Growatt ARO/APX high-voltage batteries (DC and AC coupled systems)
Backup Power Yes (Whole-home backup and dark start operation)
Safety Features AFCI, RSD, Anti-islanding, Ground Fault, Grid Monitoring, Type III AC Surge Protection
Certifications UL1741SA/SB, UL1741, UL9540, CA Rule 21, HECO
Operating Temperature Range –13°F to +140°F
Protection Rating NEMA 4X (IP65)
Cooling Method Natural Convection
Communication Ports RS485, WiFi/LAN (optional), CAN2.0, SunSpec, App (iOS, Android, Windows)
Dimensions (W x H x D) 15.8" x 25.2" x 7.4" (400 x 638 x 187 mm)
Weight 45.2 lbs (20.5 kg)
Warranty 10 years
