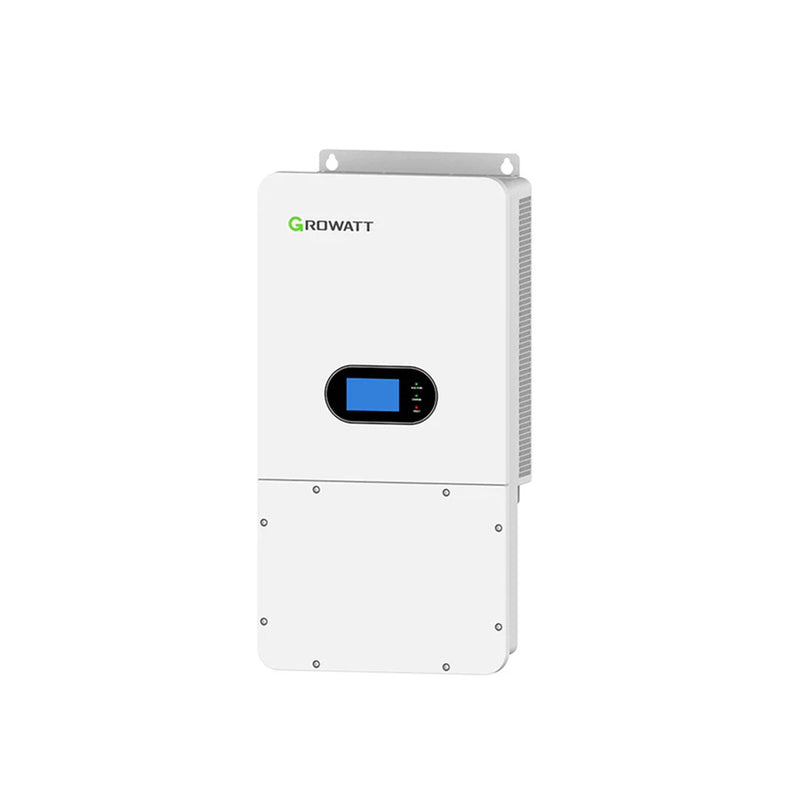

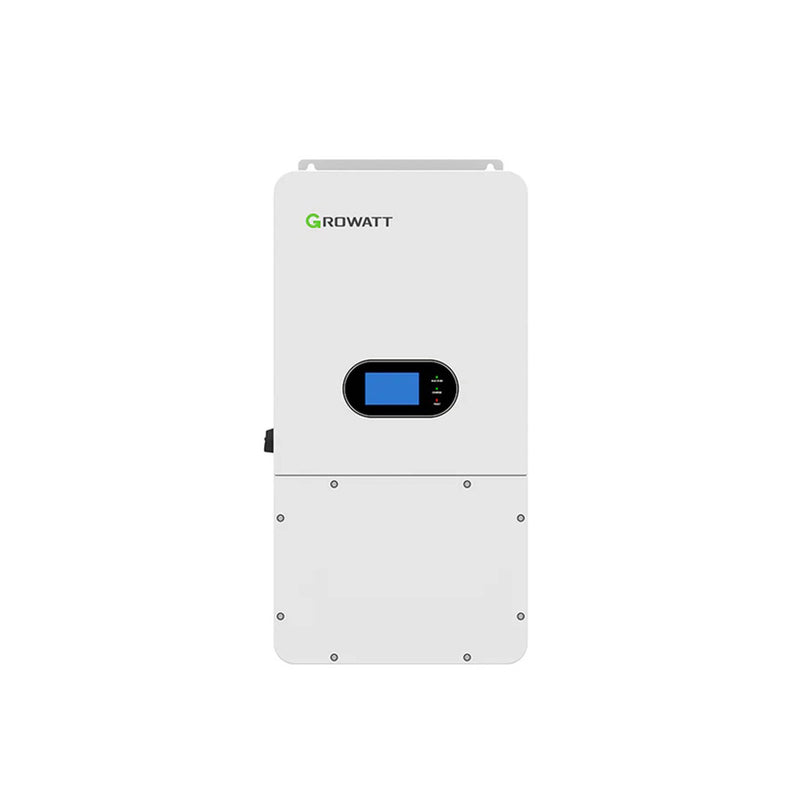

Growatt 10KW Hybrid Inverter | SPH 10000TL-HU-US

Growatt Logo
Top Authorized Dealer
Manufacturer Warranty Included
SKU 1519114
Sold out
Original price $2,499.00 - Original price $2,499.00
Original price
$2,499.00
$2,499.00 - $2,499.00
Current price $2,499.00
Availability:
Out of stock

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Growatt 3.8kW Grid-Tie Inverter | MIN 3800TL-XH-US

Description

House with lights on showing Growatt 10kW Hybrid SPH 10000TL-HU-US product specificationsGrowatt SPH 10000TL-HU-US 10KW Hybrid Inverter

The Growatt SPH 10000TL-HU-US 10KW hybrid inverter offers robust features for efficient energy management:

  • Split Phase Output: Supports 120/240Vac output.
  • Configurable Charging: Allows for customizable battery charging current and voltage.
  • Charger Priority: Set priority for AC, solar, or generator charging via the touch screen interface.
  • Versatile Compatibility: Works with grid power or generator power. Automatically restarts when AC power is lost.
  • Smart Battery Charger: Designed to optimize battery performance.
  • Advanced Monitoring: Supports WIFI, 4G, and Bluetooth monitoring (Growatt Monitoring Platform).
  • Multiple MPPTs: Features built-in 3 MPPT (Maximum Power Point Tracking).
  • Comprehensive Protection: Protects against overload, over temperature, and short circuits.
  • Programmable Supply Priority: Allows setting priority for battery or grid supply.
  • Flexible Operation Modes: Includes On Grid Mode, Self-consumption Mode, and Zero Export Limit.
  • Warranty: 10 Years

Whether it’s your first project or your fifth, our USA-based team is here for you. Lifetime support means you’re never on your own.

Product Specifications

Growatt 10KW Hybrid Inverter | SPH 10000TL-HU-US Product Specifications

Category Specification
AC Output Power 10 kW, split-phase (120/240 V)
Max PV Input Up to 15 kW
Battery Voltage Range 40–60 V (nominal 48 V)
Max Battery Charge/Discharge Current ~200 A
MPPT Trackers 3 independent channels
DC/AC Ratio Up to 1.5 (PV oversizing allowed)
Efficiency Peak ~97.5%
UPS Transition Time 10 ms (seamless backup)
Parallel Capability Up to 6 units (≈ 60 kW), three-phase supported
Coupling DC-coupled, AC-coupled, AC retrofit
Generator Support Compatible with diesel/gas generators
Protection Features Type II surge (AC & DC), overload, reverse polarity, short circuit, over-temperature
Connectivity Wi-Fi, 4G, Bluetooth; monitoring via ShineCloud/ShinePhone
Operating Modes On-Grid, Self-Consumption, Zero-Export
Certifications UL 1741 SA, IEEE 1547, Rule 21, AFCI, UL 9540, CEC listed
Environmental Rating IP65 (indoor/outdoor use)
Warranty 10 years
Dimensions ~25″ × 18″ × 8″ (63 × 46 × 20 cm)
Weight ~77 lb (35 kg)

Product Manual

Growatt Data Sheet

Growatt User Manual

Product Warranty

Growatt Warranty

Service terms & conditions.

(1)Product coverageIncluding Growatt PV Inverters, Growatt Storage Inverters, Growatt Smart Energy Management Devices, Growatt Monitoring Software, EV Chargers, Portable Power Station and Growatt Batteries and Accessories

(2)Country and Region coverageAll country and regions, including China Hong Kong special administration region, Macao special administration region, Taiwan, excluding mainland China ONLY. Warranty coverage is contingent upon the alignment of the country of sale, the country of installation, and the country of after-sales service.

(3)Warranty claim: In general, serial number(S/N)must be provided in order to claim warrantyPlease store the original purchasing invoice/ installation documents or receipts carefully. Customers need to present it for warranty claim if required.

(4)Warranty periodThe standard warranty period is from the date of installation on the installation certificate and no more than six months after the delivery date from Growatt. A warranty extension may only be applied within a period of two years from the date of installation.

Growatt service commitment

(1) The service hotline for Growatt local service center varies, please check our local service center in your country/region. The service hotline in Shenzhen headquarter is +86 755 27471942. Our service hotline offering general inquiry, technical support, etc.

(2) Service email address: service@ginverter.com. Customer is suggested to contact Growatt service representative in your country/region directly.

(3) Warranty period and service mode. We offer different service solutions for different product, see details on below table


Note: If warranty period was specified on sales order, then warranty period would obey to sales order.

(4) Installation and commissioningGrowatt don’t offer installation service, don’t offer onsite debugging service for monitoring device. Growatt can offer onsite commission service for big scale plant (inverter capacity500kw)

Product FAQs

N/A
