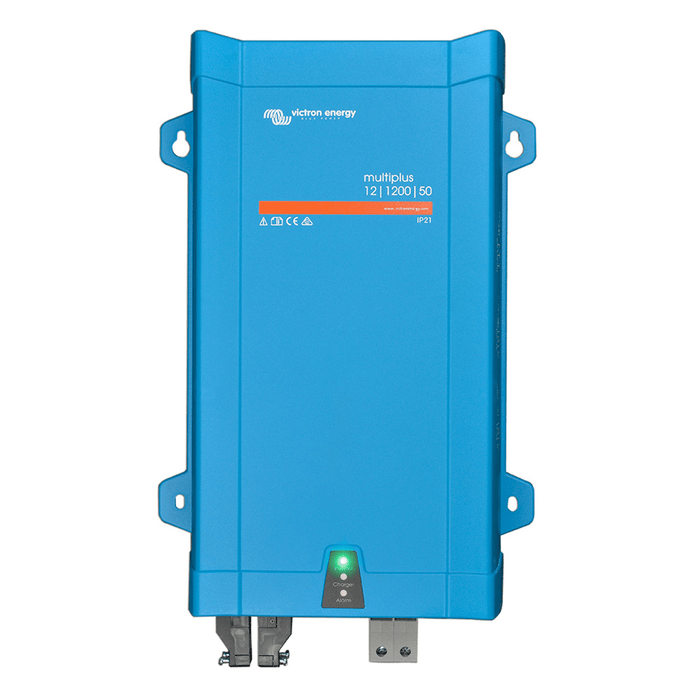

Victron Energy MultiPlus 12V/1200W/50-16 120V VE.Bus Inverter Charger

Description

The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Models:

500VA, 800VA, 1200VA, 1600VA

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"

Product Specifications

Victron Energy MultiPlus 12V/1200W/50-16 120V VE.Bus Inverter Charger Product Specifications

Specifications:

  • PowerControl: Yes
  • PowerAssist: Yes
  • Transfer Switch (A): 16

Inverter Specifications:

  • Input Voltage Range (V DC): 9,5 – 17 V, 19 – 33 V, 38– 66 V
  • Output voltage: 230 VAC, ± 2% / Frequency 50 Hz ± 0,1%
  • Continuous Output Power at 25°C (VA): 1200
  • Continuous Output Power at 25°C (W): 1000
  • Continuous Output Power at 40°C (W): 900
  • Continuous Output Power at 65°C (W): 600
  • Peak Power (W): 2400
  • Maximum Efficiency (%): 93 / 94 / 95%
  • Zero Load Power (W): 10 / 9 / 10 W
  • Zero Load Power in Search Mode (W): 3 / 3 / 3 W

Charger Specifications:

  • AC Input: Input voltage range: 187-265 VAC / Input frequency: 45 – 65 Hz
  • Charge Voltage Absorption (V DC): 14,4 / 28,8 / 57,6
  • Charge Voltage Float (V DC): 13,8 / 27,6
  • Storage Mode (V DC): 13,8 / 27,6 / 55,2
  • Charge Current House Battery (A): 50 / 25 / 13 A
  • Charge Current Starter Battery (A): 1A (12 V and 24 V models only)
  • Battery Temperature Sensor: Yes

General Specifications:

  • Programmable Relay: Yes (1x)
  • Protection: a - g
  • VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration  (RJ45-splitter ASS030065510 needed for 500 / 800 / 1200 VA models)
  • Remote On-Off: On/off/charger only
  • DIP Switches: Yes
  • Internal DC Fuse: 200 / 100 / 50 A
  • Operating Temperature Range: -40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95%

Enclosure Specifications:

  • Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21
  • Battery-Connection: 35 / 25 / 10 mm²
  • 230 V AC-Connection: G-ST18i connector
  • Weight: 8.2 kg
  • Dimensions (H x W x D): 406 x 250 x 100 mm / 15.98 x 9.84 x 3.94 in.

Standards:

  • Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
  • Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Automotive Directive: ECE R10-5
  • Can be adjusted to 60Hz and 240V
  • Protection: Output short circuit, Overload, Battery voltage too high, Battery voltage too low, Temperature too high, 230VAC on inverter output, Input voltage ripple too high
  • Non-linear load, crest factor 3:1
  • Up to 25°C ambient
  • A programmable relay that can be set for General alarm, DC under voltage or generator start/stop signal function, AC rating: 230V/4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
  • Remote/battery charge voltage/inverter frequency/search mode
  • Battery charge voltage/search mode
