Sol-Ark L3-HVR-60KWH | 61.44 kWh High Voltage Outdoor Commercial Battery System
Description

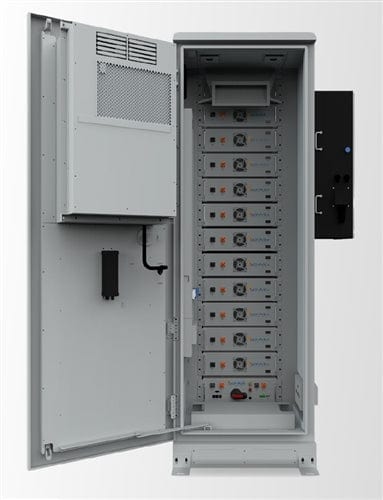

The Sol-Ark L3-HVR-60KWH is a high-voltage modular solar battery system that can store energy from solar panels and convert it into AC electricity. The L3-HVR-60KWH battery is made up several (12) 5.12 kWh batteries to make 60kWh. The BOS-G(HV) is easily scalable, and you can expand your power setup with the attachment of additional battery modules.
The Sol-Ark L3-HVR-60KWH is designed for various energy storage needs and offers flexibility and scalability to cater to different applications. It has a wide temperature range of -20°C to 55°C, with excellent discharge performance and cycle life. The system is non-toxic, non-polluting, and environmentally friendly.
- Fully integrated energy storage solution – Hybrid Inverter, battery and fleet management
- Built-in dual fire suppression including cabinet and packs
- Integrated air conditioner for temperature control
- Intelligent EMS, BMS and hybrid inverter technology
- Supports up to 6 battery cabinets per Inverter
- 10-Year Warranty
About the Sol-Ark L3 Series
The Sol-Ark L3 Series Limitless Lithium™ Battery Energy Storage System with Native 208V and 480V options offers scalable energy storage from 40Wh to 11.5 MWh.
L3 Series Indoor & Outdoor Commercial Battery Features
• Reduce energy costs
• Ensure uninterrupted operations
• Protect data and essential loads
• Capacity to easily deploy EV charging stations
60kWh Outdoor Energy Storage System for either the Sol-Ark 30K or Sol-Ark 60K Commercial Inverter
| Model |
L 3-HVR-60KWH
|
| Series |
Sol-Ark L3 Series Batteries |
| Manufacturer |
Sol-Ark |
Product Specifications
Sol-Ark L3-HVR-60KWH | 61.44 kWh High Voltage Outdoor Commercial Battery System Product Specifications
| System Data |
| Compatible Inverters |
• Sol-Ark 30K-3P-208V-N
Sol-Ark Sol-Ark 30K-3P-208V-N inverter sold separately.
• Sol-Ark 60K-3P-480V-N
Sol-Ark Sol-Ark 60K-3P-480V-N inverter sold separately.
|
| Environmental Rating |
Outdoor |
| Cell Chemistry |
Lithium Iron Phosphate (LiFePO4) |
|
| Battery Cabinet Capacity |
61.44kWh |
| System Usable Energy* |
55.30kWh
* DC usable energy, test conditions: 90% DOD, 0.3C charge and discharge at 25ºC. System usable energy may vary due to system configuration parameters.
|
| Built-In DC Disconnect Rating |
200A |
| Built-In DC Disconnect Rating |
160A |
| Backup Capability Per Inverter |
60 kWac |
| Max DC-Coupled Solar Per Inverter |
78 kWac |
| Max AC-Coupled Solar Per Inverter |
125 kWac |
| Max Battery Cabinets Per Inverter |
6 |
| Inverter Stacks in Parallel |
6 |
| Recommend Depth of Discharge |
90% |
| System Nominal Voltage |
616.4V |
| System Operating Voltage |
588V–672V |
Charge/Discharge Current*
• Recommend
• Nominal/Continuous
• Peak Discharge (2 mins, 25ºC)
|
50A : Recommended
100A : Nominal/Continuous
125A : Peak Discharge (2 mins, 25ºC)
* The current is affected by temperature and SOC.
|
| Combined Battery + Inverter Efficiency |
90% (25C, 0.5C) |
| Dimension (feet) |
30 x 42 x 89 in |
| Weight |
2095 lbs. |
| Operating Temperature* |
-10°C — 50°C (14°F — 122°F) |
| Humidity |
5%~85%RH |
| Altitude |
3000m (9,843 ft) |
| Storage Temperature |
-4ºF — 95ºF
Up to 85% RH (non-condensing)
State of Charge (SOC) 30% |
| Ingress Rating |
IP55 (NEMA 3R) |
| Seismic Zone |
4 |
| Communication Port |
CAN2.0/RS485 |
| Battery Module Specifications |
| Battery Modules in Series Per Cabinet |
12 |
| Battery Module Energy |
5.12kWh |
| Battery Module Nominal Voltage |
51.2V |
| Battery Module Nominal Capacity |
100AH |
| Warranty and Certification |
| Performance Warranty |
10 years or 196MWh Throughput |
| Product Warranty |
10 Years |
| Certification |
UL1973, UL9540, UL9540a, UN38.3, FCC, Prop 65 |
