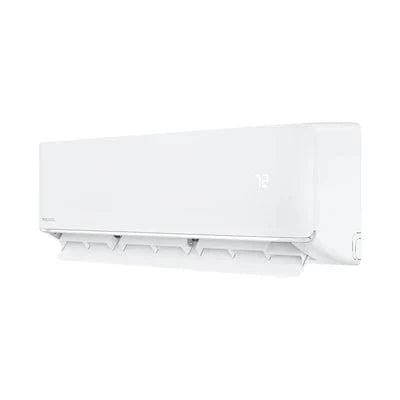

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)

MRCOOL Logo
Top Authorized Dealer
Manufacturer Warranty Included
Customers rate us 4.8/5 based on 477 reviews.
SKU DIY-24-HP-WMAH-230D25-O
$965.00 - $965.00
$965.00
$965.00 - $965.00
$965.00
Availability:
in stock, ready to be shipped

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living Solutions. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O)

Description

The 5th Generation MRCOOL® DIY® 24K BTU Ductless Mini-Split Heat Pump is a highly efficient solution for heating and cooling spaces up to 1050 sq. ft. Designed for hassle-free DIY installation, it eliminates the need for special tools or professional assistance, making setup quick, easy, and budget-friendly. A key advantage of this system is the pre-charged 25-foot DIY® QuickConnect® line set, which comes filled with R-454B refrigerant. This removes the need for vacuuming, significantly reducing installation time and expenses.

The included DIYPRO® cable further simplifies setup by eliminating the need for electrical conduit, while also enhancing durability and resistance to outdoor elements and wildlife. Managing your comfort is effortless with multiple control options. Adjust settings with the wireless remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. For enhanced comfort, the Follow Me function allows the system to detect and adjust temperatures based on the remote’s location, ensuring even distribution.

Additionally, Dry Mode helps maintain a comfortable indoor environment by reducing excess humidity. Built for long-term performance, the outdoor unit’s Gold Fin® Condenser provides superior corrosion resistance, ideal for coastal environments. With industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round comfort with innovative smart features and easy installation.

Features

  • NEEP ccASHP Listed
  • Intertek listed 5031495
  • Easy DIY installation
  • Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Product Specifications

MRCOOL DIY® 5th Gen E Star 24,000 BTU Single Zone Mini Split Air Handler 230V (DIY-24-HP-WMAH-230D25-O) Product Specifications

Dimensions

8.9" D x 13.19" H x 42.52" W

Tonnage

2

Voltage (V)

208/230

Phase

1

Cycle

60

Max Fuse Breaker (A)

15

Min Circuit Amapcity (A)

3

Mount Type

Wall

Color

White

Max Coverage Area

1050 sqft

Decibel Rating Low (DBA)

20

Decibel Rating High (DBA)

54

Number of Speeds

5

Oscillation

Yes

Liquid Line Size

3/8

Suction Line Size

5/8

Filter Type

Reusable
Auxiliary Heater Included No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

Remote Control Included

Yes

UL Listed

Yes

ETL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes
Contains Electronics

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Gross Depth (In)

17.68

Gross Height (In)

14.29

Gross Width (In)

46.73

Gross Weight (Lbs)

49.82

Product Manual

Brochure
Install Manual
Remote Manual
Warranty
Accessory Manual

Product Warranty

MRCOOL Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
